1080p HDMI Extender over CAT6 up to 196ft (60m)
HDCP 1.4, IR Pass-Through, Local HDMI Loop-Out, Deep Color 48-bit

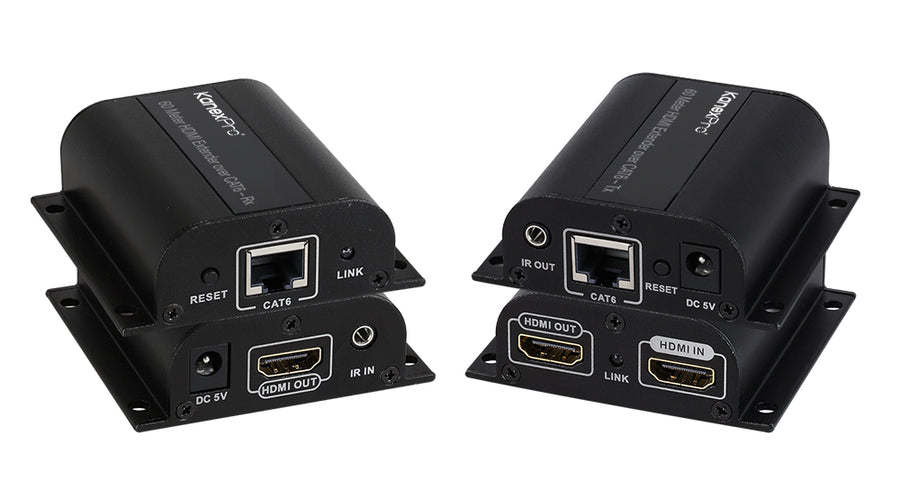

Extend HDMI video and audio up to 196 feet (60 meters) over a single CAT6 cable with full IR control and a local HDMI preview output on the transmitter. The KanexPro EXT-HD60M carries 1080p/60Hz signals with HDCP 1.4 compliance and EDID management. Auto-adjustment, buffering, and signal equalization maintain pixel-perfect resolution across the full distance.
Supports resolutions from 480i to 1080p@60Hz with 16-bit per channel (48-bit) Deep Color. Built-in IR pass-through (20–60KHz) enables remote control of the source from the display location. The transmitter includes a local HDMI output for monitoring or preview. Compact metal enclosures with built-in mounting kits. Powered by DC 5V/1A (TX <3W, RX <2W). Requires CAT6/6a/7 cable — will not work with CAT5/5e.
- Extend DVI/HDMI over CAT6 cable up to 196ft (60m)
- Local HDMI output on Transmitter for preview
- Supports full HD 1080p (1920x1080@60Hz)
- Digital audio support
- HDCP 1.4 & EDID compliant
- Full IR control over CAT6
- Supports 16-bit per channel (48-bit all channels)
- Compact metal enclosure
- Built-in mounting kits
| Signal | |
|---|---|
| HDMI | Compatible with HDCP 1.4 |
| Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Deep Color | 16-bit per channel (48-bit) |
| Network Cable | CAT6, CAT6A, CAT7 (oxygen-free copper core) |
| Transmission | CAT6: 60m at 1080p |
| IR | 20–60KHz wide frequency |
| Transmitter (TX) | |
| Ports | 1 × HDMI IN, 1 × HDMI Loop Out, 1 × RJ45, IR |
| Power | DC 5V/1A (<3W) |
| Dimensions | 71mm × 67mm × 25mm (83g) |
| Receiver (RX) | |
| Ports | 1 × HDMI OUT, 1 × RJ45, IR, Reset |
| Power | DC 5V/1A (<2W) |
| Dimensions | 71mm × 67mm × 25mm (81g) |
| General | |
| Operating Temperature | 0°C – 60°C |
| Color | Black |
| Package Contents | |
| Included | 1 × TX, 1 × RX, 2 × DC 5V/1A PSU, 2 × IR Cables, 1 × User Manual |
UPC 813982020962
