1080P60 H.265 AV over IP Decoder
Add Displays Without Adding Encoders — Multicast, Distributed Matrix & Video Wall up to 9x9, RS-232 Control over 1G
Adds another display to an existing 1080p AV-over-IP system without touching the encoder side or the switch you already run. The decoder is a compact black metal endpoint that draws power over PoE (802.3af Class 3) from the network switch, so screens mounted where power is hard to reach need only a single Cat cable, and up to eight units rack into a single 1U. It is the right choice for signage and venue installs where display count, per-endpoint cost, and reach matter more than 4K resolution or KVM.
Working over a standard managed 1G network, it receives H.265 or H.264 streams and drives an HDMI display in point-to-point, signal-distribution, multicast, distributed-matrix, or video-wall modes, scaling a canvas up to 9×9 without a fixed matrix chassis. Output scaling, EDID, and stream routing are configured from the built-in Web GUI or a Controller Box, and the unit is controllable over RS-232, TCP/IP, Web GUI, or Controller Box, with RS-232 pass-through and Guest mode reaching connected displays. Because every screen is simply another decoder added to an open switch port, expanding a system is an add-on rather than a chassis upgrade — the companion AVO-IP265HD-ENC encoder is sold separately.
- HDCP 1.4 compliant.
- Video resolution up to 1920×1200@60Hz 4:4:4, as specified in HDMI 1.3.
- Supports 4.95 Gbps video bandwidth.
- Signal transmission distance can be extended up to 328 ft / 100 m via CAT5E/6/6A/7 cable.
- Supports point-to-point signal extension.
- Supports signal distribution, multicast mode, distributed matrix and video wall (up to 9×9) over a 1G network switch.
- Intelligent video-wall management makes novel wall-layout configurations achievable.
- Supports LPCM 2.0CH (32/44.1/48 kHz) audio format.
- Supports audio embedding and extracting.
- Supports RS-232 control (pass-through and Guest mode).
- Supports main-stream and sub-stream encoding modes.
- Stream parameters can be configured via the Web GUI or a Controller Box.
- Controlled via RS-232, TCP/IP, Web GUI and Controller Box.
- Supports PoE (802.3af Class 3, PD mode).
- Smart networking design for easy and flexible installation.
| Video | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Resolution | Up to 1920×1200@60Hz 4:4:4 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Video Bandwidth | 4.95 Gbps |
| Video Compression | H.265 / H.264 |
| Transmission Distance | 100 m (328 ft) over CAT5E/6/6A/7 |
| ESD Protection | IEC 61000-4-2: ±8 kV air-gap discharge, ±4 kV contact discharge |
| Audio | |
| Audio Format | LPCM 2.0CH (32/44.1/48 kHz) |
| Audio Handling | Embedding and extracting |

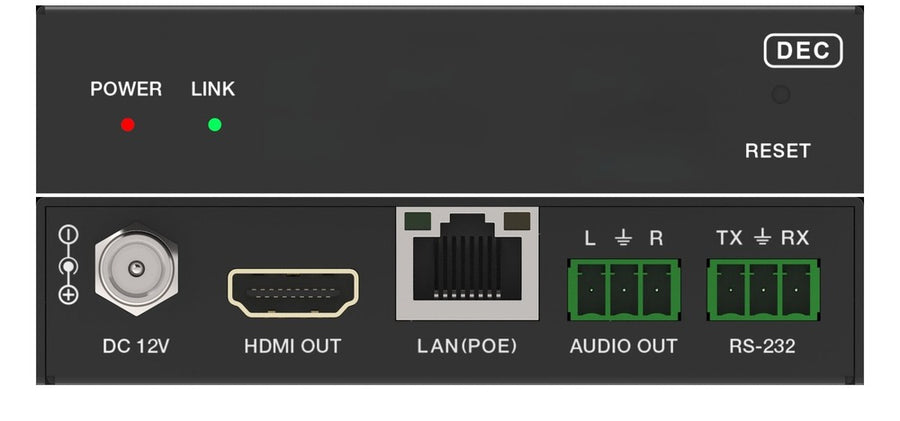

| Connections | |
| HDMI Out | 1× Type A, 19-pin female |
| LAN | 1× RJ45, PoE |
| Audio Out | 1× 3-pin phoenix connector |
| RS-232 | 1× 3-pin phoenix connector |
| Control | |
| Control Methods | RS-232, TCP/IP, Web GUI, Controller Box |
| RS-232 Modes | Pass-through and Guest mode |
| Encoding Modes | Main-stream and sub-stream |
| Physical | |
| Dimensions (W × D × H) | 4.72" × 3.74" × 0.85" (120 × 95 × 21.5 mm) |
| Housing | Metal enclosure |
| Color | Black |
| Net Weight | 0.65 lbs (0.29 kg / 294 g) |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 12V/1A |
| Power Consumption | 3.1 W |
| PoE | 802.3af Class 3, PD mode |
| Environmental | |
| Operating Temperature | 14°F – 113°F (-10°C – 45°C) |
| Storage Temperature | -4°F – 140°F (-20°C – 60°C) |
| Relative Humidity | 20% – 90% RH, non-condensing |
| Package Contents | |
| 1080P over IP 100M/1GbE Decoder | 1 |
| 3-pin Phoenix Connector (3.81 mm, male) | 2 |
| Mounting Ear | 2 |
| Machine Screw (KM3, 4 mm) | 4 |
| 12V/1A Locking Power Adapter | 1 |
| User Manual | 1 |
UPC 813982021402
