1080P60 H.265 AV over IP Encoder
Distribute One HDMI Source to Unlimited Displays - Matrix & Video Wall up to 9x9, RS-232 Control over 1G
The AVO-IP265HD-ENC distributes one HDMI source to an unlimited number of 1080p displays over the standard 1G network you already run. It is a compact metal-enclosure encoder that draws power over the network — PoE (802.3af Class 3, PD mode) means the source end needs no local adapter on a PoE switch — and it racks densely, up to twelve units in a 4U frame or eight in a single 1U. That makes it the right choice for signage, hospitality, education, houses of worship and operations centers, where reach, density and total system cost matter more than 4K.
Riding a managed 1G switch, it supports point-to-point extension, signal distribution, multicast, distributed matrix switching and video wall up to 9×9, with H.265/H.264 compression that keeps each stream light enough to carry over an ordinary gigabit network. Streams are configured from the built-in Web GUI or a Controller Box, and the unit is controlled over RS-232 (pass-through and guest mode), TCP/IP, Web GUI and Controller Box, with LPCM 2.0 audio embedding and extraction. Paired with its companion AVO-IP265HD-DEC decoder, the system turns display expansion into an add-a-decoder job rather than a new matrix — the AVO-IP265HD-DEC decoder is sold separately.
- HDCP 1.4 compliant
- Video resolution up to 1920×1200@60Hz 4:4:4, per HDMI 1.3
- Supports 4.95 Gbps video bandwidth
- Signal transmission distance extendable up to 328 ft (100 m) over Cat5e/6/6A/7 cable
- Supports point-to-point signal extension
- Supports signal distribution, multicast mode, distributed matrix and video wall (up to 9×9) over a 1G network switch
- Intelligent video wall management for creating flexible video-wall layout configurations
- Supports LPCM 2.0CH audio format (32 / 44.1 / 48 kHz)
- Supports audio embedding and extraction
- Supports RS-232 control (pass-through and guest mode)
- Supports main-stream and sub-stream encoding modes
- Stream parameters configurable via Web GUI or Controller Box
- Controlled via RS-232, TCP/IP, Web GUI and Controller Box
- Supports PoE (802.3af Class 3, PD mode)
- Smart networking design for easy and flexible installation
| Video | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Resolution | Up to 1920×1200@60Hz 4:4:4 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Video Bandwidth | 4.95 Gbps |
| Video Compression | H.265 / H.264 |
| Transmission Distance | 100 m (Cat5e/6/6A/7) |
| Audio | |
| Audio Format | LPCM 2.0CH (32 / 44.1 / 48 kHz) |
| Audio Support | Embedding and extraction |

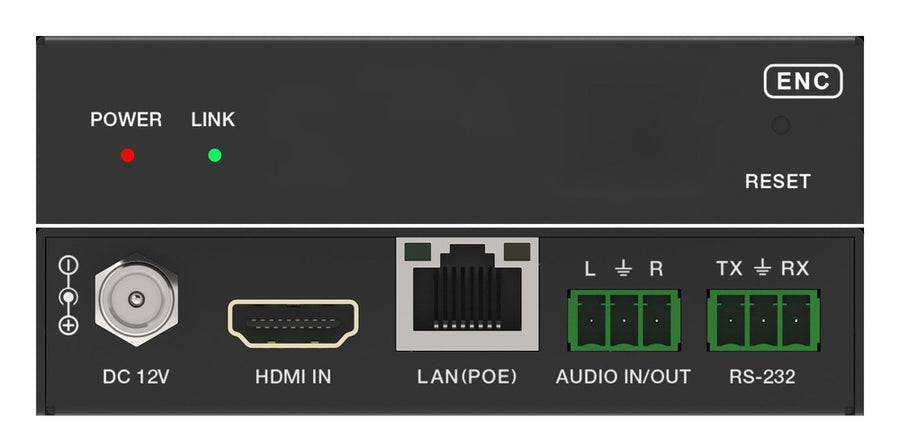

| Connections | |
| HDMI Input | 1× HDMI IN (Type A, 19-pin female) |
| Network | 1× LAN (RJ45, PoE) |
| Audio | 1× Audio IN/OUT (3-pin phoenix) |
| Serial | 1× RS-232 (3-pin phoenix) |
| Control | |
| Control Methods | RS-232 (pass-through and guest mode), TCP/IP, Web GUI, Controller Box |
| Encoding Modes | Main stream and sub stream |
| Power | |
| Power Supply | Input: AC 100–240 V, 50/60 Hz; Output: DC 12 V / 1 A |
| PoE | 802.3af Class 3 (PD mode) |
| Power Consumption | 2.64 W |
| Physical | |
| Dimensions | 4.72" × 3.74" × 0.85" (120 × 95 × 21.5 mm) [W × D × H] |
| Net Weight | 0.65 lbs (0.29 kg) |
| Enclosure | Metal |
| Color | Black |
| Environmental | |
| Operating Temperature | 14 °F – 113 °F (−10 °C – 45 °C) |
| Storage Temperature | −4 °F – 140 °F (−20 °C – 60 °C) |
| Relative Humidity | 20% – 90% RH (non-condensing) |
| ESD Protection | IEC 61000-4-2: ±8 kV (air-gap), ±4 kV (contact) |
| Package Contents | |
| 1 | 1080P over IP 100M/1GbE Encoder |
| 2 | 3-pin Phoenix Connector (3.81 mm, male) |
| 4 | Machine Screw (KM3, 4 mm) |
| 2 | Mounting Ear |
| 1 | 12 V / 1 A Locking Power Adapter |
| 1 | User Manual |
UPC 813982021396
