1080P60 H.265 AV over IP KVM Decoder

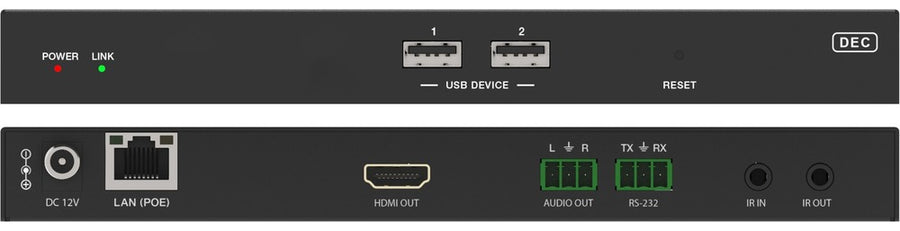

Adds a controllable display to an existing H.265 AV-over-IP system without adding another encoder. The AVO-IP265HDK-DEC is a 1080p60 KVM decoder in a black metal enclosure that drives one HDMI display from any source on a standard 1G managed network, powered by PoE (802.3af Class 3) from the same switch port that carries video or by a local 12V/1A supply. It distributes point-to-point, one-to-many, in a distributed matrix, and across a video wall up to 9×9, extending signals up to 328 ft (100 m) over CAT5E/6/6A/7. It is the right choice for control rooms, dispatch floors, sports bars, houses of worship, and classrooms where screen count, USB/KVM control, and per-endpoint cost matter more than 4K.

Every display added on the network can re-route any encoder's source through the Web GUI, IR, RS-232, TCP/IP, or a Controller Box, with H.265/H.264 compression at up to 1920×1200@60Hz 4:4:4 and main-stream/sub-stream encoding to manage bandwidth. Beyond video, it keeps the control plane intact: USB/KVM host control one-to-one and one-to-many, bidirectional IR and RS-232 (pass-through and Guest mode), and analog audio de-embedding to a 3-pin phoenix output. As the decode half of a split architecture, it lets integrators order only the direction each job needs and turn display expansion into a simple per-screen add-on, pairing with the AVO-IP265HDK-ENC encoder, sold separately.

• HDCP 1.4 compliant.
• Video resolution up to 1920×1200@60Hz 4:4:4, per HDMI 1.3.
• Supports 4.95 Gbps video bandwidth.
• Signal transmission up to 328 ft / 100 m over CAT5E/6/6A/7 cable.
• Supports point-to-point signal extension.
• Supports signal distribution, multicast mode, distributed matrix, and video wall up to 9×9 over a 1G network switch.
• Intelligent video wall management for flexible wall layout configurations.
• Supports LPCM 2.0CH (32/44.1/48 kHz) audio format.
• Supports audio embedding and extracting.
• Supports USB/KVM function (one-to-one and one-to-many) and bidirectional IR/RS-232 control (pass-through and Guest mode).
• Supports main-stream and sub-stream encoding modes.
• Stream parameters configurable via Web GUI or Controller Box.
• Controlled via IR, RS-232, TCP/IP, Web GUI, and Controller Box.
• Supports PoE (802.3af Class 3, PD mode).
• Smart networking design for easy and flexible installation.
