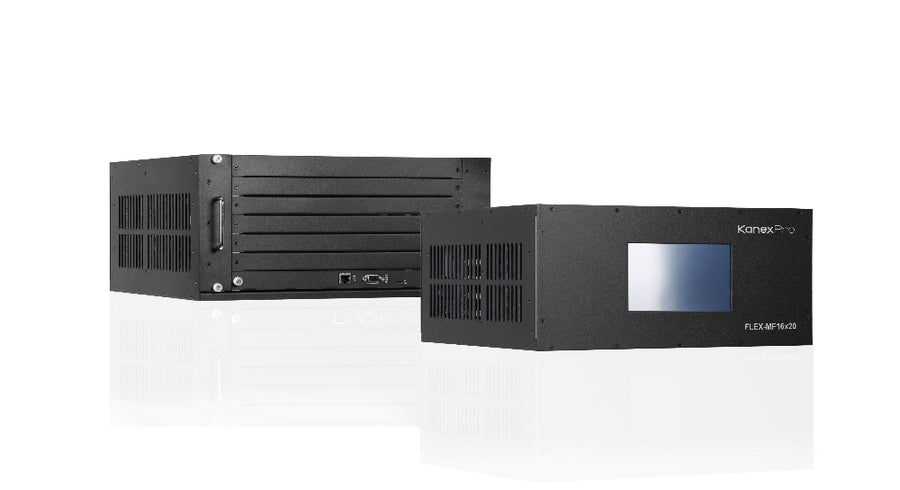

16×20 4K60 Modular Matrix Switcher with Built-In Video Wall

Sixteen cable boxes in. Twenty TVs out. One chassis that handles video wall, quad view, and independent scaling without a single external processor. The FLEX-MF16X20 is a modular 4K60 matrix switcher built for bars, restaurants, hotels, and multi-zone venues where every screen needs to show the right source at the right resolution — controlled from a 7" touchscreen at the bar or remotely via Web GUI.

HDMI 2.0, 18Gbps, HDCP 2.2. Hot-swappable HDMI and CAT cards. CAT extends 4K to 230ft (70m). CEC powers displays on/off by zone. RS-232, TCP/IP, Web GUI for Crestron/Control4 integration.

• Up to 16 HDMI 2.0 inputs and 20 outputs via hot-swappable modular cards (HDMI, CAT, DisplayPort)
• 4K/UHD 60Hz at 18Gbps with full HDCP 2.2 and HDR support
• Built-in video wall up to 4×3 (12 displays) with configurable layouts and bezel compensation
• Quad view mode displays four sources on a single output in multiple layout options
• Independent output scaling adjusts resolution per channel for mixed-display environments
• CAT output extends 4K signals up to 230ft (70m) via single cable using FLEX-CATRX receivers
• CEC display control for zone-based power management across connected screens
• 7" front-panel touchscreen for on-site switching, preset recall, and system monitoring
• RS-232, TCP/IP, and Web GUI control for integration with Crestron, Control4, Savant, and other platforms
