18Gbps 16×16 HDMI Matrix with ARC Function

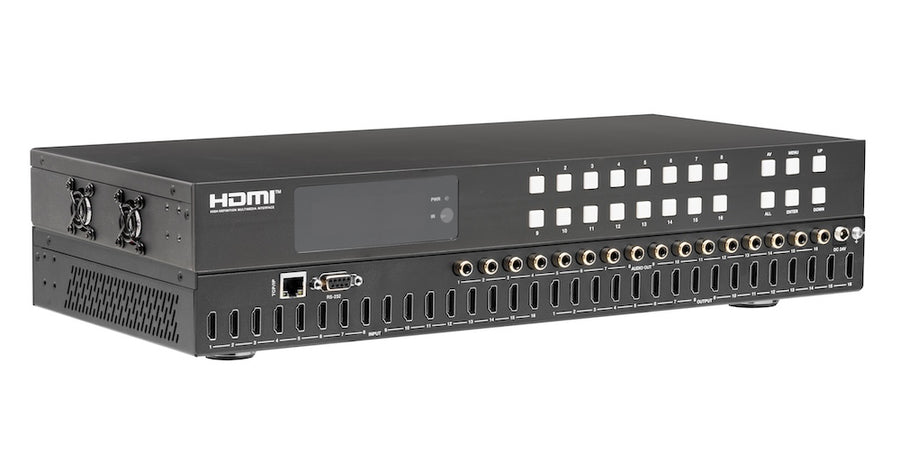

Route sixteen HDMI sources to sixteen displays with full 4K60 4:4:4 fidelity and independent coaxial audio de-embedding on every output. The KanexPro MMX-16X16AUD is an 18Gbps 16×16 HDMI matrix switcher that delivers seamless routing of ultra-high-definition video and multi-channel digital audio across large-scale AV environments — with dedicated coaxial audio outputs on all sixteen channels.

Compliant with HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0, the matrix supports HDR10, HDR10+, Dolby Vision, and HLG pass-through alongside Dolby Atmos and DTS:X audio. Each output features an independent 4K-to-1080p downscaler for mixed-resolution displays. ARC support extracts audio from connected displays to coaxial output. Control via front panel OLED, IR remote, RS-232, TCP/IP, and Web GUI. 1U rack-mountable.

• Routes 16 HDMI 2.0b sources to 16 displays at up to 4K2K@60Hz 4:4:4 with 18Gbps bandwidth on every port
• HDCP 2.2/1.x and DVI 1.0 compliant — supports protected content across all input and output channels
• HDR10, HDR10+, Dolby Vision, and HLG pass-through preserves HDR metadata end-to-end
• Audio pass-through up to 7.1-channel HD audio including LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
• Independent coaxial audio de-embedding on all 16 outputs — supports LPCM 2.0, Dolby Digital/DD+, and DTS 5.1
• ARC function on HDMI outputs extracts display audio to coaxial output — ideal for soundbar and amplifier integration
• Independent 4K→1080p downscaler on each output for mixed-resolution display environments
• Smart EDID management with 21 factory presets, 2 user-defined, and 16 copy modes; CEC pass-through
• Control via front panel (OLED), IR remote, RS-232, TCP/IP, and Web GUI — 1U rack-mountable
