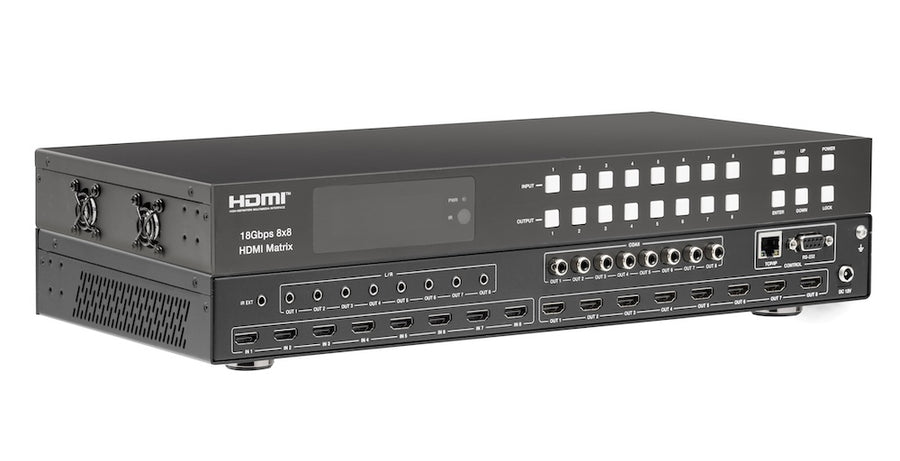

18Gbps 8×8 HDMI Matrix with ARC Function

Centralized 4K60 HDMI switching with integrated audio management for multi-display environments. The KanexPro MMX-8X8AUD routes up to eight 18Gbps HDMI sources to eight independent displays at resolutions up to 4K2K@60Hz 4:4:4, with Dolby Vision, HDR10+, and HLG pass-through preserved end-to-end across every output.

Each output provides independent audio de-embedding via both analog (3.5mm) and coaxial (RCA) ports, while per-output ARC support extracts return audio from connected displays. A built-in 4K→1080p downscaler operates independently on each output, enabling mixed-resolution environments from a single matrix. Control options include front panel buttons with OLED display, IR remote, RS-232, TCP/IP, and a full-featured Web GUI with scene presets.

• Routes 8 HDMI 2.0b sources to 8 HDMI displays at full 18Gbps bandwidth — 4K2K@60Hz 4:4:4
• Dolby Vision, HDR10+, and HLG pass-through on every output
• Audio de-embedding on all 8 outputs via analog (3.5mm L/R) and coaxial (RCA) ports
• Per-output ARC extracts return audio from connected displays to coaxial output
• Independent 4K→1080p downscaler per output enables mixed-resolution deployments
• HDMI audio pass-through up to 7.1ch — LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master, DTS:X
• Smart EDID management with 21 factory presets, 2 user-defined, and 8 copy-from-output modes
• Full control: front panel OLED, IR remote, RS-232, TCP/IP (LAN), and Web GUI with 8 scene presets
