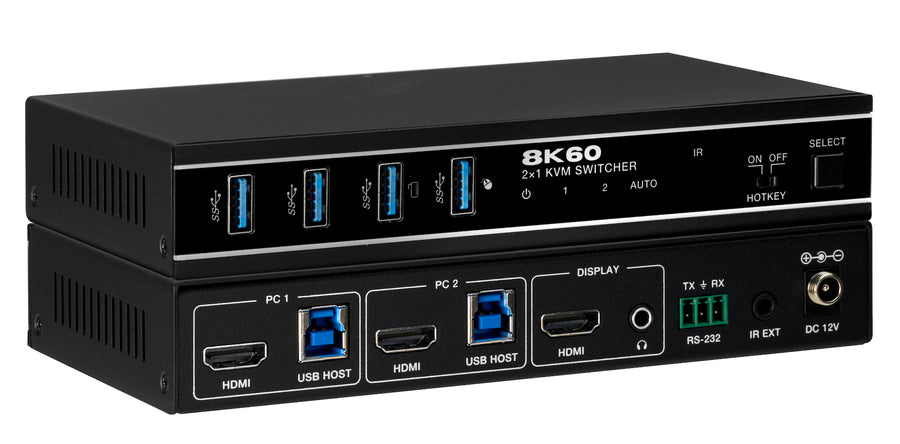

2×1 HDMI 2.1 KVM Switch — 8K60, 4K120, HDCP 2.3
Share One 8K Display, Keyboard & Mouse Between Two PCs with USB 3.0, VRR & Zero Latency
Switches one 8K display, keyboard, mouse, and USB peripherals between two PCs — with HDMI 2.1 supporting 8K@60Hz, 4K@120/144Hz, and 1080p@240Hz for gaming, creative, and professional workflows. The KVM-2X1HDMI8K is the most affordable HDMI 2.1 KVM with VRR, ALLM, and zero-latency switching.
Purpose-built for gamers, content creators, and professionals who need the highest resolution and refresh rate from a single-monitor KVM. 40Gbps bandwidth handles 8K and 4K high-refresh without compression. HDCP 2.3 ensures protected content plays without issues. USB 3.0 at 5Gbps shares webcams, storage, and peripherals. Keyboard/mouse hotkeys, front-panel button, IR remote, and RS-232 provide four switching methods. EDID emulators on both inputs prevent handshake delays. Ships with 2× HDMI + 2× USB cables. CEC pass-through supported.
- HDMI 2.1, HDCP 2.3 compliant — 40Gbps, 8K@60Hz, 4K@120/144Hz, 1080p@240Hz
- VRR, ALLM, QMS, QFT, SBTM — full HDMI 2.1 gaming features
- USB 3.0 sharing at 5Gbps
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Zero video and audio latency
- Four switching methods: button, hotkey, IR, RS-232
- Auto-switch on source connect/disconnect
- EDID emulators on both inputs, CEC pass-through
- 3.5mm audio extraction, ships with 2× HDMI + 2× USB cables
| Specification | Value |
|---|---|
| Technical | |
| HDMI / HDCP | HDMI 2.1, HDCP 2.3 |
| Video Bandwidth | 40Gbps |
| Video Resolution | 8K@60Hz 4:2:0, 4K@120/144Hz, 1080p@240Hz |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| HDMI 2.1 Features | VRR, ALLM, QMS, QFT, SBTM, CEC |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio | LPCM, DD/DD+/EX, TrueHD, Atmos, DTS/DTS-EX/DTS-96/24/DTS High Res/DTS-HD MA/DTS:X, DSD |
| Analog Audio | 3.5mm L/R — PCM 2.0 |
| Latency | Zero (video and audio) |
| Connection | |
| Input | 2× HDMI Type A (19-pin female) |
| Output | 1× HDMI Type A (19-pin female), 1× 3.5mm Audio |
| USB Host | 2× USB Type B |
| USB Device | 4× USB Type A 3.0 |
| Control | 1× RS-232 (3-pin phoenix), 1× IR EXT (3.5mm) |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | 175mm (W) × 100mm (D) × 30mm (H) |
| Weight | 506g |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 12V/1A (locking, multinational) |
| Power Consumption | 7W typical, 0.7W standby |
| Environment | |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 60°C |
| Relative Humidity | 20–90% RH (non-condensing) |
| ESD Protection | ±8kV (air-gap) / ±4kV (contact) |
| Certifications | |
| Regulatory | CE, FCC, UL |
| Recommended HDMI Cable | |
| 8K60/4K120 | Ultra High Speed HDMI 2.1, up to 2m/6.6ft |
| 4K60 | Premium High Speed HDMI, up to 5m/16ft |
| 1080p | High Speed HDMI, up to 10m/33ft |
| Package Contents | |
| Included | 1× KVM Switcher, 1× IR Remote, 1× 38KHz IR Receiver Cable (1.5m), 1× 3-pin Phoenix Connector, 2× USB 3.0 A-to-B Cable (1.8m), 2× HDMI Cable (1.5m), 2× Mounting Ears, 4× Machine Screws, 1× 12V/1A Multinational Locking PSU, 1× User Manual |
UPC 813982023581
