2×1 HDMI & USB-C HDBaseT Wall Plate Extender Kit — 50 Meters
Extend 4K/60 HDMI or USB-C Sources up to 164 ft over a Single CAT5e/6 Cable with Auto-Switching & POE

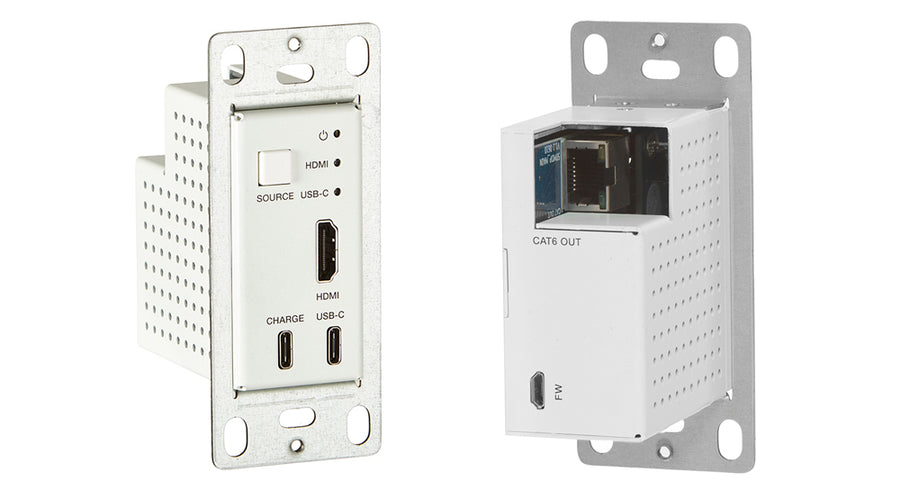

The KanexPro WP-EXTHDTC50 is a 2×1 HDMI and USB-C HDBaseT wall plate extender kit for conference rooms, classrooms, and presentation spaces that need clean 4K/60Hz signal routing without local power at the source. The single-gang Decora-style wall plate transmitter accepts HDMI 2.0b or USB-C sources — including Apple MacBooks, Windows laptops, and mobile devices — and transmits over a single CAT5e/6 cable to the included receiver. Supports 4K@24 up to 50 meters and 4K@60Hz 4:4:4 up to 35 meters.
Built for integrators who need a reliable, cost-effective BYOD connection point, the WP-EXTHDTC50 includes POC so the wall plate transmitter requires no local AC power — the receiver handles power delivery over the CAT cable. An IR input on the receiver extends display control back to the source location. Auto-switching prioritizes HDMI when both inputs are active; manual source selection is available via front-panel button. Includes interchangeable white and black faceplates. 3-year KanexPro warranty.
- Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
- HDMI input supports 18Gbps video bandwidth
- USB-C input supports 5.4Gbps video bandwidth
- Video resolution up to 4K2K@50/60Hz 4:4:4
- CAT6 output extends up to 164ft/50m for 4K@24 or 115ft/35m for 4K@60 4:4:4 via single CAT5e/6 cable
- Supports 3D, HDR10 and Dolby Vision
- HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Supports HDMI and USB-C input
- USB-C charging port on transmitter
- US one-gang enclosure for Decora-style wall plate openings
- Input signal selection supports automatic and manual mode
- Supports POC function (Receiver to Transmitter only)
- Backed by KanexPro 3-Year Parts and Labor Warranty
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | DisplayPort 1.2a |
| Video Bandwidth | HDMI: 18Gbps; USB-C (DP): 5.4Gbps |
| Video Resolution | 480i–1080p@50/60Hz, 4K×2K@24/30Hz, 4K2K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080p@60Hz); 8-bit (4K@60Hz) |
| HDR | HDR10, Dolby Vision |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | 4K@24: 164ft/50m over CAT5e/6; 4K@60: 115ft/35m over CAT5e/6 |
| ESD Protection | Human body model ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection — Transmitter | |
| Inputs | 1× HDMI Type A [19-pin female], 1× USB-C |
| Outputs | 1× CAT6 OUT [RJ45, 8-pin female], 1× USB-C (charging only) |
| Control | 1× FW [Micro USB, update port] |
| Connection — Receiver | |
| Input | 1× CAT IN [RJ45, 8-pin female] |
| Output | 1× HDMI OUT [Type A, 19-pin female] |
| Control | 1× IR IN [3.5mm Stereo Mini-jack], 1× SERVICE [Micro USB, update port] |
| Power | DC 12V/1A |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White/Black (interchangeable faceplates) |
| Dimensions — TX Wall Plate | 1.31″ × 2.59″ × 2.70″ (33.3 × 65.7 × 68.7mm) |
| Dimensions — Faceplate | 2.75″ × 0.12″ × 4.50″ (69.9 × 3 × 114.3mm) |
| Dimensions — Receiver | 3.46″ × 2.40″ × 0.71″ (88 × 61 × 18mm) |
| Weight — TX | 0.43 lbs (195g) |
| Weight — RX | 0.34 lbs (155g) |
| Power | |
| Power Supply | POC from Receiver to Transmitter; RX: DC 12V/1A (included) |
| Power Consumption — TX | 3W max |
| Power Consumption — RX | 3.72W max |
| Environment | |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | –4–140°F / –20–60°C |
| Relative Humidity | 20–90% RH (no condensation) |
| Package Contents | |
| 1× | 18Gbps CAT 50M USB-C/HDMI Wall Plate Transmitter |
| 1× | 50M Extender Receiver |
| 1× | 12V/1A Power Supply (international plugs) |
| 1× | User Manual |
UPC 813982022737
