2-Gang HDMI & VGA HDBaseT Wall Plate Transmitter with Scaler, RS-232 & PoH
Extend 4K HDMI or VGA Signals up to 230 ft over a Single CAT6 Cable with Auto-Switching & Built-In VGA Scaler

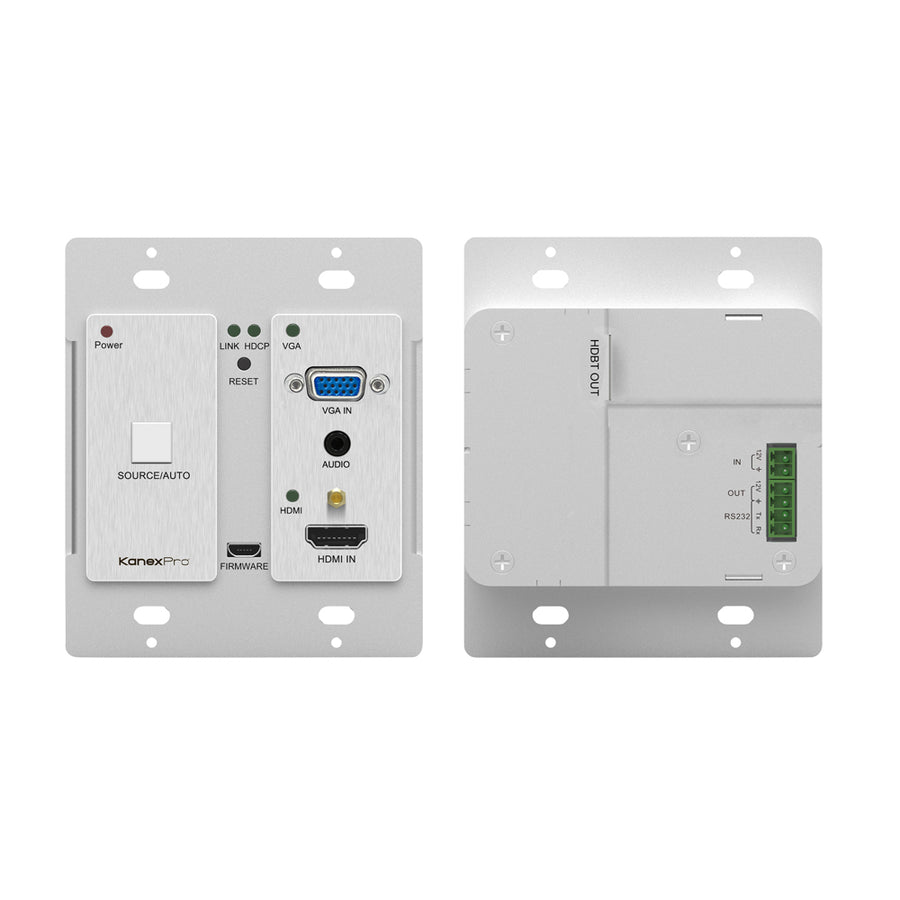

The KanexPro WP-HDBASETX is a 2-gang Decora-style HDBaseT wall plate transmitter for mixed HDMI and legacy VGA environments. Accepting one HDMI 1.4 and one VGA + 3.5mm audio input, it automatically selects the active source and extends the signal up to 230 feet (70 meters) over a single shielded CAT6 cable to a compatible HDBaseT receiver (sold separately). A built-in VGA scaler automatically matches the VGA input to the display's native resolution — supporting outputs up to 1920×1080 — eliminating resolution mismatch issues common in mixed-source rooms.
Purpose-built for classrooms, lecture halls, and boardrooms where both modern HDMI laptops and legacy VGA workstations must connect to the same display system, the WP-HDBASETX supports Power over HDBaseT (PoH) so the transmitter can be powered remotely from the receiver — removing the need for local AC at the wall plate. RS-232 control enables integration with third-party room control systems and supports full bidirectional command pass-through to the display. A locking HDMI connector prevents accidental disconnection in high-traffic installations. Matte anodized aluminum dual-gang form factor. FCC Class A certified.
- HDBaseT Alliance certified
- Dual-gang Decora form factor with matte anodized aluminum finish
- Delivers full uncompressed HD video, 3D, and 4K×2K (up to 1920×1200@60Hz and 2160p) over single CAT cable up to 70m (230ft)
- Supports key features of HDMI 1.4 including EDID and HDCP
- Built-in scaling function to automatically match VGA signals to display native resolution
- PoH (Power over HDBaseT) — powers transmitter from receiver at display end
- Locking HDMI input connector prevents accidental disconnection
- Auto-switching between inputs; manual SOURCE button override
- RS-232 bidirectional control with full command set
- EDID management: bypass, 1080p PCM 2.0, 1080p Dolby 5.1, 1080p 3D, 1080i PCM, 4K PCM
- HDCP compliance configurable via RS-232 (Active, On, Off)
- VGA image adjustment via RS-232: brightness, contrast, saturation, sharpness, color temp, aspect ratio
- Firmware update via Micro-USB
- Backed by KanexPro 3-Year Parts and Labor Warranty
| Specification | Value |
|---|---|
| Input / Output | |
| Inputs | 1× HDMI [19-pin Type A female], 1× VGA [HD-15 female], 1× Audio [3.5mm mini-jack], 1× 12V Power [2-pin terminal block] |
| Outputs | 1× HDBaseT [RJ45], 1× 12V Power OUT [2-pin terminal block] |
| Control | |
| Control Ports | 1× Firmware [Micro-USB], 1× RS-232 [3-pin terminal block] |
| RS-232 Protocol | Baud 9600, 8 data bits, 1 stop bit, no parity |
| Technical | |
| HDMI Standard | HDMI 1.4, HDCP compliant |
| Video Resolution — HDMI | Up to 4K×2K |
| Video Resolution — VGA | Up to 1920×1200@60Hz (scaler output up to 1920×1080) |
| Bandwidth | 10.2Gbps |
| Transmission Distance | 1080p: up to 230ft/70m (PoH); 4K×2K: up to 130ft/40m (PoH) |
| Audio — HDMI | Embedded digital audio |
| Audio — VGA | Analog stereo via 3.5mm mini-jack |
| SNR | >85dB @ 20Hz–20kHz |
| Frequency Response | 20Hz–20kHz |
| Impedance | 75Ω |
| Mechanical | |
| Form Factor | Universal Decora-style 2-gang wall plate |
| Finish | Matte anodized aluminum |
| Dimensions | 4.11″ × 3.50″ × 1.73″ (104.5 × 89 × 44mm) |
| Weight | 0.52 lbs (238g) |
| Power | |
| Power Supply | Input: 100–240V AC; Output: 12VDC 2A |
| Max Power Consumption | 9.6W |
| PoH | Receiver-to-transmitter power over HDBaseT |
| Certifications | |
| Regulatory | FCC Class A |
| Environment | |
| Operating Temperature | 14–104°F / –10–40°C |
| Relative Humidity | 10–90% |
| Package Contents | |
| 1× | 4K Wallplate HDBaseT Transmitter |
| 4× | Mounting Screws |
| 1× | 2-pin Terminal Block |
| 1× | 4-pin Terminal Block |
| 1× | Top Cover |
| 1× | User Manual |
