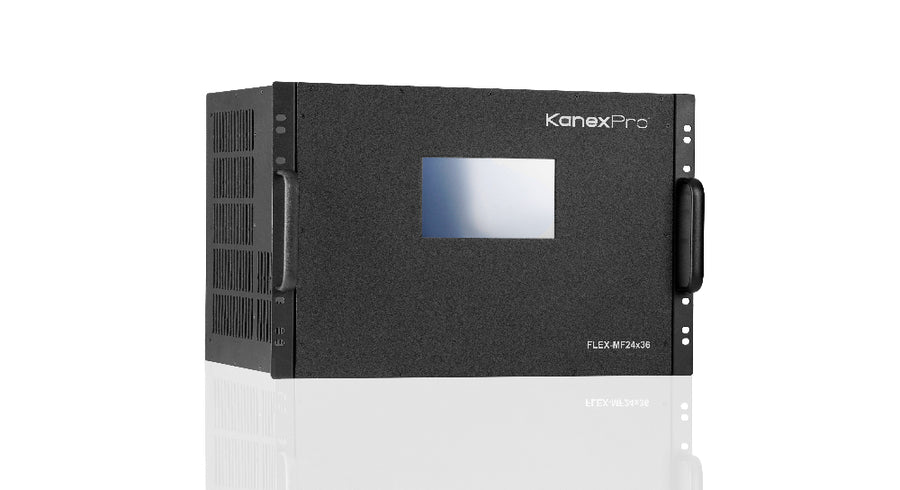

24×36 4K60 Modular Matrix Switcher with Built-In Video Wall

When 20 outputs aren’t enough but enterprise-class multi-format isn’t required, the FLEX-MF24X36 delivers the right scale at the right price. Three input and three output card slots provide 24 HDMI sources routed to 36 displays — all at 4K60 4:4:4, 18Gbps, with built-in video wall, quad view, and independent scaling that eliminate external processing hardware.

HDMI and CAT cards in any mix. CAT extends 4K to 230ft. CEC zones displays. 7" touchscreen + RS-232 + TCP/IP + Web GUI. Same card ecosystem as the 16×20 and 24×60.

• Up to 24 HDMI 2.0 inputs and 36 outputs via hot-swappable modular cards (HDMI, CAT, DisplayPort)
• 4K/UHD 60Hz at 18Gbps with full HDCP 2.2 and HDR support
• Built-in video wall up to 4×3 (12 displays) with bezel compensation; quad view displays four sources on one output
• Independent output scaling adjusts resolution per channel for mixed-display environments
• CAT output extends 4K signals up to 230ft (70m) via single cable using FLEX-CATRX receivers
• CEC display control for zone-based power management across screens
• 7" front-panel touchscreen for on-site switching, preset recall, and system monitoring
• RS-232, TCP/IP, and Web GUI control for Crestron, Control4, Savant, and other platform integration
