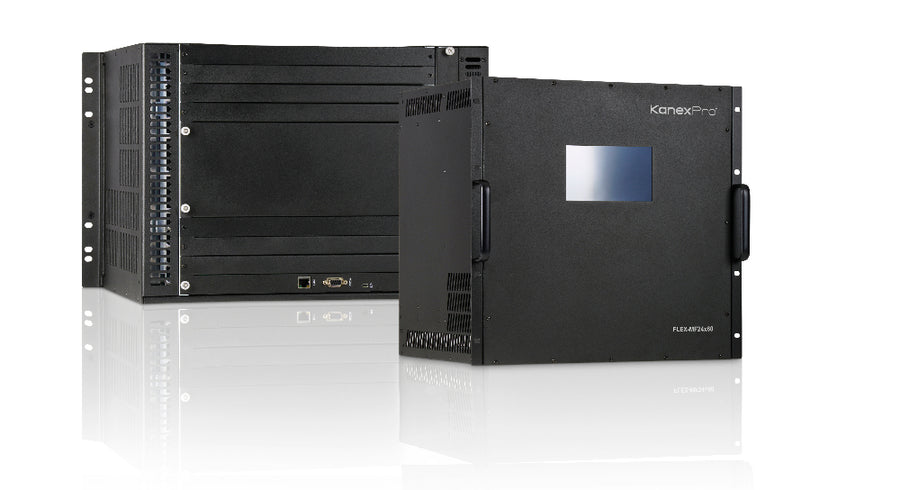

24×60 4K60 Modular Matrix Switcher with Built-In Video Wall

Maximum FLEX Output — 24 Sources to 60 Displays with 4K60 Video Wall & Quad View

FLEX-MF24X60
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

Sixty displays from one chassis. The FLEX-MF24X60 is the highest-output matrix in the standard FLEX line — purpose-built for convention centers, casino floors, large hotels, and campus-wide signage where output count matters more than input count. Five output card slots and three input slots route 24 4K60 sources to 60 screens with video wall, quad view, and independent scaling built in.

Every output independently scaled. CAT cards reach 230ft. CEC powers displays by zone. 7" touch + Web GUI + RS-232 + TCP/IP. Cards shared across all FLEX chassis sizes.

Key features
  • Up to 24 HDMI 2.0 inputs and 60 outputs via hot-swappable modular cards (HDMI, CAT, DisplayPort)
  • 4K/UHD 60Hz at 18Gbps with full HDCP 2.2 and HDR support
  • Built-in video wall up to 4×3 (12 displays) with bezel compensation; quad view displays four sources on one output
  • Independent output scaling adjusts resolution per channel for mixed-display environments
  • CAT output extends 4K signals up to 230ft (70m) via single cable using FLEX-CATRX receivers
  • CEC display control for zone-based power management across screens
  • 7" front-panel touchscreen for on-site switching, preset recall, and system monitoring
  • RS-232, TCP/IP, and Web GUI control for Crestron, Control4, Savant, and other platform integration
Specification
Video
StandardHDMI 2.0, HDCP 1.x, HDCP 2.2
HDRSupported
Maximum Data Rate18 Gbps
Video ResolutionUp to 3840×2160 60Hz 4:4:4 (8-bit)
Chroma SamplingRGB and YCbCr 4:4:4, YCbCr 4:2:2/4:2:0
Color Bit Depth8, 10, 12 bits per color
Audio
Audio FormatsLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, DD+, DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X
Connection
RS-232 Control1× 9-pin D-sub
TCP/IP Control1× RJ45
Input Cards3 slots — 8× HDMI Type A per card (FLEX-HDMI8IN)
Output Cards5 slots — 12× CAT per card (FLEX-CAT12OUT) or 12× HDMI (FLEX-HDMI12OUT)
General
ESD Protection±8kV (air-gap) / ±4kV (contact)
Operating Temperature32° to 104°F (0° to 40°C)
Humidity10% to 90% RH (non-condensing)
Dimensions445×355×450mm (17.5"×14"×17.7")
Weight21 kg (46 lbs)
Power100–240VAC 50/60Hz

Panel drawing
System diagram
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required

UPC 813982023178
