48Gbps 4x1 HDMI/USB-C Auto Switcher with 8K60 and EDID Management
3x HDMI 2.1 + 1x Native USB-C Input to 1x HDMI Output - 8K@60Hz, 4K@120Hz, VRR, ALLM, HDCP 2.3

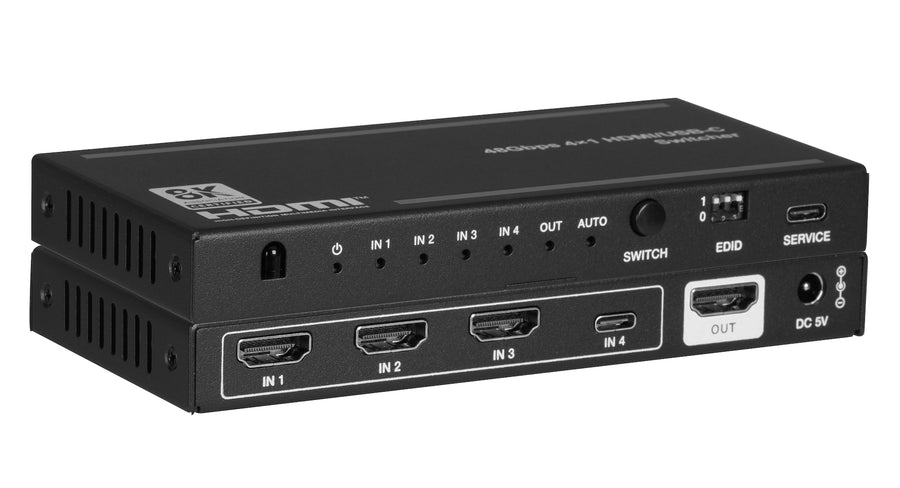

Eliminate adapter dependency in multi-source AV environments with native USB-C and HDMI 2.1 switching in a single ultrathin enclosure. The KanexPro SW-4X1HDUSBC combines three HDMI 2.1 inputs and one native USB-C input into a 4×1 auto switcher that routes any source to a single HDMI display — supporting resolutions up to 8K@60Hz and 4K@120Hz with full 48Gbps bandwidth.
Compliant with HDMI 2.1, HDCP 2.3, and DP 1.4, the switcher supports the full HDMI 2.1 protocol stack including VRR, ALLM, QMS, QFT, and SBTM for gaming and professional display applications. HDR10, HDR10+, Dolby Vision, HLG, and multichannel audio including Dolby Atmos and DTS:X pass through uncompressed. Advanced EDID management via 3-pin DIP switch with 8 presets. Control via front-panel button or IR remote. CE, FCC, and UL certified.
- Routes 3× HDMI 2.1 and 1× native USB-C input to 1× HDMI output — eliminates adapter dependency in mixed-source environments
- HDMI video bandwidth up to 48Gbps FRL and 18Gbps TMDS; USB-C video bandwidth up to 32Gbps with DP 1.4 compliance
- Supports resolutions up to 8K@60Hz 4:2:0 12-bit (HDMI) and 8K@30Hz 4:2:2 10-bit (USB-C), plus 4K@120Hz 4:4:4 12-bit
- Full HDMI 2.1 protocol support including VRR, ALLM, QMS, QFT, and SBTM for gaming and professional displays
- HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through preserves HDR metadata end-to-end
- LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio pass-through
- Auto input switching detects newly connected or powered-on sources; manual switching via front-panel button or IR remote
- Advanced EDID management via 3-pin DIP switch with 8 presets including sink copy, FRL 12G/10G, and configurable audio formats
- CEC pass-through enables TV-to-source control; ultrathin metal housing (145 × 68 × 18 mm) with CE, FCC, and UL certification
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| DP Compliance | DP 1.4 |
| Video Bandwidth | HDMI: Up to 48Gbps FRL and 18Gbps TMDS | USB-C: Up to 32Gbps |
| Video Resolution | HDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit | USB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI 2.1 Features | VRR, ALLM, QMS, QFT, SBTM, CEC |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 3 × HDMI Type A [19-pin female] | 1 × USB Type C [24-pin female] |
| Output | 1 × HDMI Type A [19-pin female] |
| Control | 1 × SERVICE [USB Type C, update port] | 1 × IR Receive Window | 1 × Front Panel Button | 3-Pin EDID DIP Switch |
| Mechanical | |
| Housing | Metal |
| Color | Black |
| Dimensions | 145mm (W) × 68mm (D) × 18mm (H) |
| Weight | 258g |
| Power Supply | Input: AC 100~240V 50/60Hz, Output: DC 5V/1A (CE/FCC/UL certified) |
| Power Consumption | 2.25W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Recommended HDMI Cable | |
| 8K | 2m / 6.6ft (Ultra HDMI 2.1) |
| 4K60 | 8m / 26ft |
| 4K24 | 12m / 39ft |
| 1080P | 15m / 49ft |
UPC 813982023987
