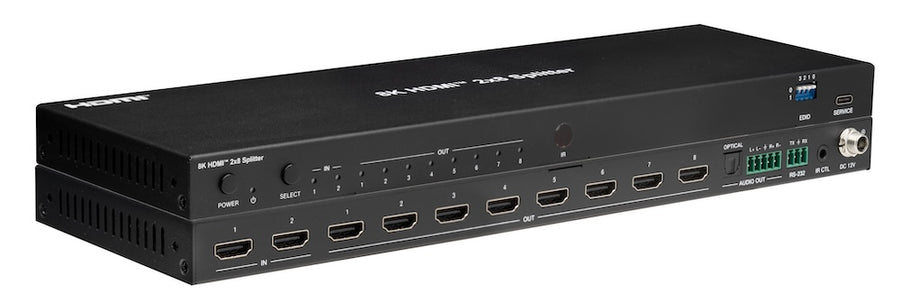

48Gbps 8K 2×8 HDMI Matrix Splitter with Independent Downscaling & Audio De-embedding
Switch 2 HDMI Inputs to 8 Screens with Auto-Scaling Video & Balanced/Digital Audio Breakout
The SP-HDMI2X8-8K eliminates the multi-box problem of chaining a separate switcher into a distribution amplifier by combining two-source HDMI 2.1 switching with eight independently scaled outputs in a single compact enclosure. Each output downscales 8K to 4K or 2K and converts HDR to SDR on the fly, enabling mixed-resolution display fleets to receive optimized video without external scalers or EDID workarounds.
Compliant with HDMI 2.1 and HDCP 2.3, the splitter delivers 48Gbps bandwidth supporting 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4 with HDR10, HDR10+, Dolby Vision, HLG, ALLM, and VRR pass-through. Audio de-embedding provides both optical S/PDIF (up to 5.1CH) and balanced/unbalanced analog output with adjustable gain via a 5-pin phoenix connector. A built-in signal generator with 15 resolutions and 13 test patterns simplifies commissioning and cable verification. Control via front panel, IR remote, or RS-232 ASCII commands.
- Routes two HDMI 2.1 sources to eight displays at up to 8K@60Hz 4:2:0 12-bit with 48Gbps bandwidth and HDCP 2.3 compliance
- Independent 8K?4K/2K downscaling on each output — auto, bypass, or force 1080p per display for mixed-resolution fleets
- Per-output HDR?SDR conversion preserves accurate imagery on non-HDR displays without manual EDID intervention
- HDR10, HDR10+, Dolby Vision, HLG, ALLM, and VRR pass-through for gaming and cinematic content on compatible screens
- Audio de-embedding via optical S/PDIF (LPCM/Dolby/DTS 5.1CH) and balanced/unbalanced analog (LPCM 2CH) with adjustable gain (0 dB to -79 dB)
- Built-in HDMI signal generator with 15 resolutions (8K to 480p) and 13 test patterns for on-site commissioning and cable diagnostics
- Advanced EDID management with 16 hardware DIP switch presets and 33 software presets including 2 user-defined slots and pass-through mode
- Control via front panel buttons, IR remote, and RS-232 ASCII commands (3-pin phoenix, configurable 4800–115200 bps) — USB-C service port for firmware updates
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Gaming Features | ALLM, VRR |
| HDMI Audio (Pass-through) | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Audio De-embed (Optical) | LPCM / Dolby / DTS up to 5.1CH |
| Audio De-embed (Analog) | LPCM 2CH — balanced (8.2 dBu max) or unbalanced (2.2 dBu max) |
| Analog Audio S/N | 99 dB @ 2 Vrms, 1 kHz, A-weighted |
| Analog Audio THD+N | <0.2% @ 0 dBV, 1 kHz |
| Analog Audio Impedance | 300 O |
| Analog Audio Frequency Response | 20 Hz – 20 kHz |
| Analog Audio Gain | Adjustable 0 dB to -79 dB |
| IR Level / Frequency | 12 Vp-p / Wideband 20K–60 kHz |
| Transmission Distance | 3m / 9.8 ft over HDMI cable |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact) |
| Connection | |
| Input | 2× HDMI Type A [19-pin female] |
| Output | 8× HDMI Type A [19-pin female], 1× Optical S/PDIF, 1× L/R Analog [5-pin phoenix connector] |
| Control | 1× RS-232 [3-pin phoenix connector], 1× IR CTL [3.5mm stereo mini-jack], 1× SERVICE [USB Type-C] |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | 320mm (W) × 100mm (D) × 21.5mm (H) |
| Weight | 810 g |
| Power Supply | DC 12V / 2.5A (multinational locking adapter) |
| Power Consumption | 9.6W (max) |
| Operating Temp | 32–104°F / 0–40°C |
| Storage Temp | -4–140°F / -20–60°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Storage Humidity | 10–90% RH (non-condensing) |
1× 48Gbps 2×8 HDMI Splitter • 1× 12V/2.5A Multinational Locking Power Supply • 1× IR Remote • 1× IR Wideband Receiver (1.5m) • 1× 3-pin Phoenix Connector • 1× 5-pin Phoenix Connector • 2× Mounting Ears • 4× Machine Screws (KM3×6) • 1× User Manual
