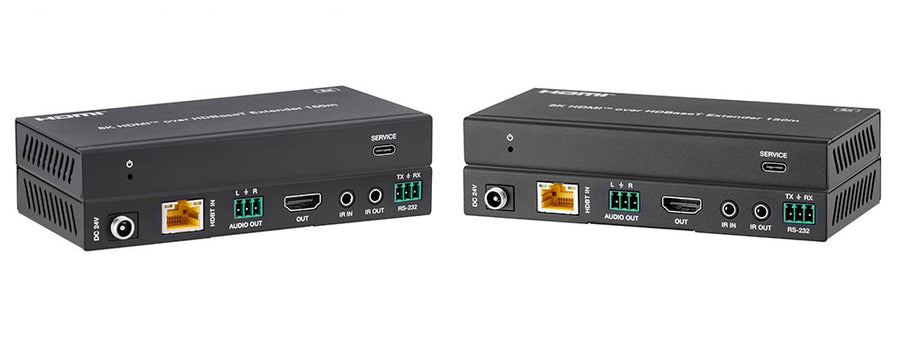

48Gbps 8K HDMI over HDBaseT Extender Kit (150m/492ft)
Extend 8K/4K60/1080p over CAT6 with Bi-Directional IR, RS-232 & 24V PoC
Most HDMI extenders cap out at 4K and 70-100m - leaving integrators without a viable single-cable solution for long-run 8K deployments or large-venue 4K installations that push past the 100m barrier. The KanexPro EXT-HD8K-150M closes that gap by extending HDMI 2.1 signals up to 150 meters over a single CAT6 cable, delivering 8K@30Hz at 40m, 4K60 4:2:0 at 100m, and full 1080p at 150m - all without active optical cables or signal repeaters.
The TX/RX kit ships with everything an integrator needs: bi-directional IR, RS-232, analog stereo audio de-embedding on both TX and RX, 24V PoC, and a 7-mode DIP-switch EDID manager. HDCP 2.3, HDR10, HDR10+, Dolby Vision, and HLG supported end-to-end.
| Video | |
| HDMI Compliance | TX Input: HDMI 2.1 / RX Output: HDMI 2.0 |
| HDCP | HDCP 2.3 / 1.4 |
| Video Bandwidth | 48 Gbps |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| Transmission | |
| Max Distance @ 8K@30Hz | 131 ft / 40 m (CAT6) |
| Max Distance @ 4K@60Hz 4:4:4 | 197 ft / 60 m |
| Max Distance @ 4K@60Hz 4:2:0 | 328 ft / 100 m |
| Max Distance @ 1080p@60Hz | 492 ft / 150 m |
| Mechanical | |
| Dimensions (TX/RX) | 8.46" x 6.10" x 1.02" (W x D x H) / 215 x 155 x 26 mm |
| Weight (TX/RX) | 1.46 lbs (660 g) each |
| Power Supply | DC 24V / 2.7A; 24V PoC supported |
| Certifications | CE, FCC, RoHS |
| Package Contents | |
| 1x | Transmitter (TX) unit |
| 1x | Receiver (RX) unit |
| 2x | DC 24V/2.7A power adapters |
| 2x | IR receiver cables |
| 2x | IR blaster cables |
| 2x | Mounting ear brackets |
| 1x | User manual |
UPC 813982024175
