4K 1×2 HDMI Splitter with EDID Selector
4K@30Hz, HDCP, CEC Pass-Through, Deep Color, EDID Copy/Auto Modes

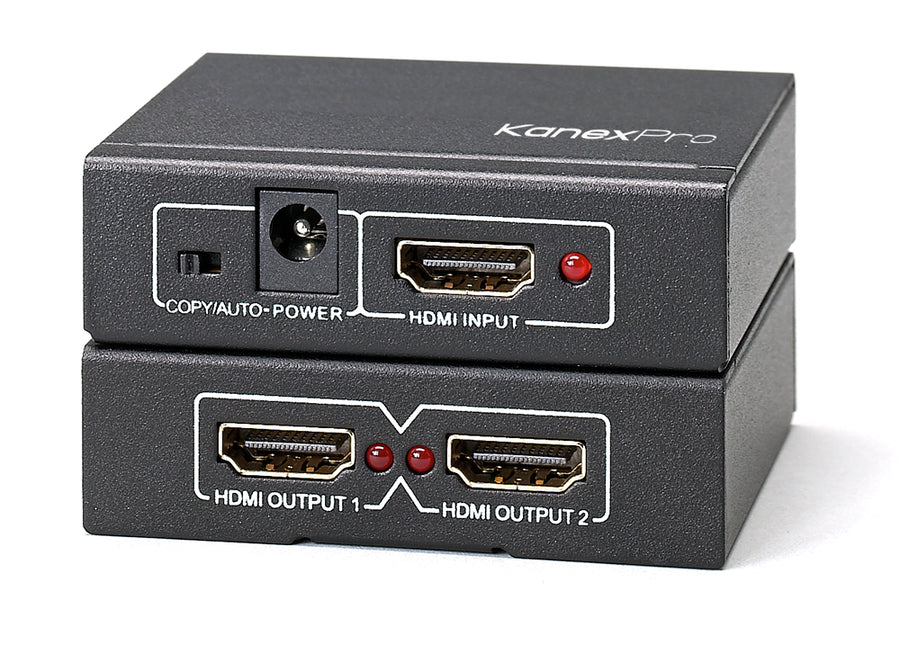

Duplicate one HDMI source to two displays without losing signal integrity or resolution. The KanexPro SP-HD1X24K is a 4K@30Hz compliant 1×2 HDMI distribution amplifier that splits a single HDMI input to two simultaneous outputs. Its EDID selector (Copy/Auto modes) ensures reliable resolution negotiation. HDCP and CEC compliant, backward compatible with 1080p/720p devices.
Supports Ultra HD 4K×2K@30Hz, full HD 1080p@60Hz, WUXGA 1920×1200, and all 3D formats. 12-bit per channel (36-bit) Deep Color. Audio pass-through includes 5.1 and 7.1 digital audio plus uncompressed LPCM. Compact metal enclosure powered by USB 5V. Plug and play — no driver installation required.
- Distribute high-resolution HDMI signals with audio to 2 Ultra HD displays
- EDID selector for various signal formats (Copy and Auto modes)
- Supports full 3D and 4Kx2K resolution
- Supports full HD 1080p (1920 x 1080@60Hz)
- Computer resolution up to WUXGA (1920 x 1200@60Hz)
- Supports 5.1, 7.1 Digital Audio and uncompressed LPCM
- HDCP and CEC compliant
- Supports latest HDMI High Speed Specifications
- 12-bit per channel (36-bit all channel) Deep Color
- Compact metal enclosure
| Signal | |
|---|---|
| Input DDC Signal | 5 volts p-p (TTL) |
| Maximum Resolution | 4K × 2K@30Hz |
| Output Video | HDMI 1.4 with full HD 1080p, 1920×1200, 720p, 3D and 4K×2K + HDCP |
| CEC | Pass-through enabled |
| Video Bandwidth | 2.97 Gbps |
| Resolutions (HDTV) | Interlaced: 480i, 576i, 1080i. Progressive: 480p, 576p, 720p, 1080p, 4K×2K |
| Mechanical | |
| Dimensions | 2.51" × 2.36" × 0.78" (64 × 60 × 20 mm) |
| Weight | 300g (0.66 lbs) |
| Power Supply | DC 5V/1A (USB) |
| Power Consumption | 5W (Max) |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | −20°C – 60°C / −4°F – 140°F |
| Package Contents | |
| Included | 1 × HDMI 1×2 Splitter, 1 × 5V USB to DC Power Supply, 1 × User Manual |
UPC 813982020047
