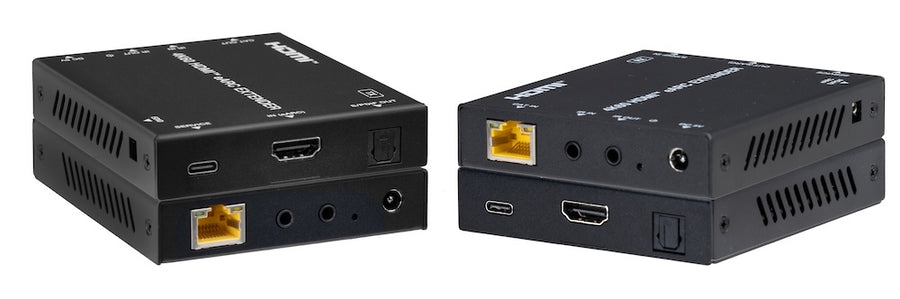

4K HDMI Extender (50m) with eARC & S/PDIF Audio Return
Extend 4K60 Video and TV Audio over a Single CAT6/6a Cable — Dual-Mode eARC/S/PDIF, Bi-Directional IR, EDID Management
Standard 4K HDMI extenders carry video over CAT cable but drop the audio return path — forcing integrators to run a second cable or add a standalone audio extractor when the TV needs to send eARC or ARC audio back to an AVR or soundbar. The KanexPro EXT-HD4KEARC-50M solves this by extending 4K60 4:4:4 HDMI video and eARC/S/PDIF audio return over a single CAT6/6a cable up to 50m/164ft, delivering both video and full-resolution audio return in one compact TX/RX kit.
A dual-mode dial switch on the receiver selects eARC for TVs that support it — passing PCM 7.1 192KHz, Dolby Atmos, and DTS:X — or S/PDIF for legacy TVs, carrying PCM 2.0, Dolby 5.1, and DTS 5.1 via optical. HDMI 2.0b and HDCP 2.2 compliant with HDR10, HDR10+, Dolby Vision, and HLG pass-through. Bi-directional wideband IR, CEC pass-through, and a 4-mode EDID DIP switch round out integration, while the compact metal enclosure and dual 5V power supplies keep installation simple.
- Extends 4K60 4:4:4 HDMI video up to 50m/164ft over a single CAT6/6a cable with zero delay
- Dual-mode audio return: eARC (PCM 7.1 192KHz, Dolby Atmos, DTS:X) or S/PDIF (PCM 2.0, Dolby 5.1, DTS 5.1) — selectable via RX dial switch
- HDMI 2.0b and HDCP 2.2 compliant — supports protected 4K content from all major sources
- HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through for full dynamic range
- CEC pass-through enables single-remote control of source and display through the extender
- Bi-directional wideband IR (20K–60KHz) for remote control of source from display side or display from source side
- 4-mode EDID DIP switch: copy sink, 4K60 2.0CH, 4K60 5.1CH, or copy sink video with S/PDIF audio — resolves handshake issues without software
- Compact metal enclosure (97 × 82 × 18mm per unit) with mounting ears included — fits behind displays or inside AV closets
| Specification | |
|---|---|
| Technical | |
| HDMI / HDCP | HDMI 2.0b / HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Max Resolution | 4K2K@60Hz 4:4:4 24-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| eARC Audio | PCM 7.1CH 192KHz, Dolby Atmos, DTS:X |
| ARC/S/PDIF Audio | PCM 2.0, Dolby 5.1CH, DTS 5.1CH |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| CEC | Supported |
| IR Level / Frequency | 5Vp-p / Wideband 20K–60KHz |
| Transmission Distance | 50m/164ft over CAT6/6a cable |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap, ±4kV contact |
| Connection | |
| TX Input | 1× IN (eARC) [HDMI Type A, 19-pin] |
| TX Output | 1× S/PDIF OUT [Optical] • 1× CAT OUT [RJ45] |
| TX Control | 1× SERVICE [USB-C] • 1× IR IN [3.5mm] • 1× IR OUT [3.5mm] |
| RX Input | 1× S/PDIF IN [Optical] • 1× CAT IN [RJ45] |
| RX Output | 1× OUT (eARC) [HDMI Type A, 19-pin] |
| RX Control | 1× SERVICE [USB-C] • 1× IR IN [3.5mm] • 1× IR OUT [3.5mm] |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions (per unit) | 3.82″ × 3.23″ × 0.71″ (97 × 82 × 18mm) |
| Weight | TX: 0.44 lbs (199g) • RX: 0.43 lbs (196g) |
| Power Supply | DC 5V/2A (per unit — 2 included) |
| Power Consumption | TX: 4.75W max • RX: 3.5W max |
| Operating Temperature | 32°F–104°F (0°C–40°C) |
| Storage Temperature | -4°F–140°F (-20°C–60°C) |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Humidity | 10%–90% RH (non-condensing) |
| Package Contents | |
| 1× | 4K60 HDMI Extender (TX) |
| 1× | 4K60 HDMI Extender (RX) |
| 1× | IR Blaster Cable (1.5m) |
| 1× | IR Wideband Receiver Cable (1.5m) |
| 2× | 5V/2A Multinational Power Supply |
| 4× | Mounting Ear |
| 8× | Machine Screw (KM3*4) |
| 1× | User Manual |
UPC 813982024212
