4K60 1×4 HDMI Distribution Amplifier over CAT6 — 60m/197ft
Compact 4K60 Splitter Kit with PoC, HDR Pass-Through & Audio Extraction over CAT5e/6

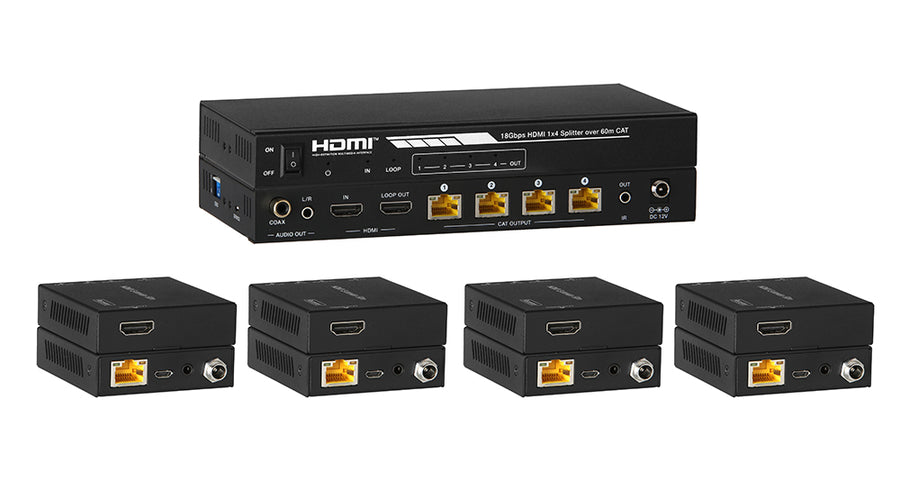

Splits one 4K60 4:4:4 HDMI source to four CAT-connected displays at distances up to 60m in a compact half-rack enclosure that fits behind displays, inside furniture, or in shallow rack spaces. The SP-HDPOC1X4 includes four PoC-powered receivers — no separate power adapters, no configuration — just connect CAT cables and go.
Purpose-built for classrooms, retail signage, worship overflow, and residential multi-room setups where cable runs stay under 60m and simplicity matters more than enterprise control features. Supports HDMI 2.0, HDCP 2.2, 3D, HDR10/HDR10+/HLG/Dolby Vision, and 7.1-channel lossless audio. Coaxial and 3.5mm audio extraction on the transmitter feeds amplifiers or powered speakers. A rotary EDID dial eliminates HDMI handshake issues across mixed displays, and the Micro-USB SERVICE port provides ASCII command access for advanced integrators. CE/FCC/UL certified.
- HDMI 2.0, HDCP 2.2/1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@50/60Hz 4:4:4
- Support 3D, HDR, HDR10+, HLG and Dolby Vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
- Extend the signal transmission distance up to 35 meters at the resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable
- Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs
- One-way IR pass-through from transmitter to receiver
- Advanced EDID management with rotary dial switch
- Support PoC function (transmitter to receiver)
- Compact half-rack design (210×100×25mm) for easy and flexible installation
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/1.x, DVI 1.0 |
| Video Bandwidth | 594 MHz / 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz 4:4:4 |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDR Formats | 3D, HDR10, HDR10+, HLG, Dolby Vision |
| HDMI Audio | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD MA, DSD |
| Coaxial Audio | LPCM 2.0/5.1, Dolby Digital 2/5.1CH |
| Analog Audio | PCM 2.0 |
| ESD Protection | ±8kV (air-gap) / ±4kV (contact) |
| Connection — Transmitter | |
| Input | 1× HDMI Type A (19-pin female) |
| Output — HDMI | 1× HDMI Type A (Loop Out) |
| Output — CAT | 4× CAT OUT (RJ45, 8-pin female) |
| Audio — Coaxial | 1× Coaxial Audio OUT (RCA) |
| Audio — Analog | 1× L/R Audio OUT (3.5mm stereo mini-jack) |
| Control | 1× SERVICE (Micro-USB), 1× EDID Dial switch, 1× IR OUT (3.5mm) |
| Connection — Receiver (×4) | |
| Input | 1× CAT IN (RJ45) |
| Output | 1× HDMI Type A |
| Control | 1× IR IN (3.5mm), 1× SERVICE (Mini-USB), 1× DC 12V |
| Extension Distance | |
| 4K2K@60Hz | Up to 35m over CAT6/6a/7 |
| 4K2K@30Hz | Up to 50m over CAT6/6a/7 |
| 1080p@60Hz | Up to 60m / 197ft over CAT6/6a/7 |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| TX Dimensions | 210mm (W) × 100mm (D) × 25mm (H) |
| RX Dimensions | 88mm (W) × 61mm (D) × 18mm (H) |
| TX Weight | 617g |
| RX Weight | 155g |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 12V/2.5A |
| Power Consumption | 14W |
| PoC | One-way, transmitter to receivers |
| Environment | |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Certifications | |
| Regulatory | CE, FCC, UL |
| Package Contents | |
| Included | 1× TX Splitter, 4× RX Receivers, 4× IR Blaster Cable, 1× 12V/2.5A Power Adapter, 1× User Manual |
UPC 813982022683
