4K60 4:4:4 JPEG2000 AV over IP Decoder
Terminate Visually Lossless 4K to Any Display over Standard 1G — IR, RS-232 & CEC over IP, PoE-Powered, 9x9 Video Wall
Terminates one JPEG2000 stream from your 1-gigabit network into visually lossless 4K60 4:4:4 at the display, using the copper switching the site already has. Housed in a rack-mountable metal enclosure and powered over PoE (802.3af) straight from the switch, it drives one display as a point-to-point endpoint, as a node in a networked matrix, or as a cell in a video wall up to 9x9. It is the right choice for education, house of worship, control rooms, signage and residential video distribution, where visually lossless fidelity and reach over existing 1G infrastructure matter more than a 10GbE fabric upgrade.
Any display can be reassigned to any source across the shared 1G fabric using unicast or multicast, and IR, RS-232 and CEC pass over IP so head-end control of display power and input travels with the stream. Full HDMI 2.0b at 18Gbps carries HDR10, Dolby Vision and HLG with LPCM 7.1, Dolby and DTS-HD audio, a built-in MJPEG substream lets a control app preview each endpoint remotely, and Dante AV-A is available by license activation. As the entry, single-LAN copper decoder in the KanexPro JPEG2000 family, it is the endpoint you order one of per screen and scale by the display, stepping up to the fiber or Dante dual-LAN siblings only where a specific screen needs it. Matching encoder sold separately.
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
- Supports HDR10, Dolby Vision and HLG
- Signal transmission distance up to 328ft / 100m via CAT6/6A/7 cable
- Transmits video, analog audio, IR, RS-232 and CEC over Ethernet
- HDMI audio formats support LPCM 7.1ch, Dolby Digital/Plus/EX, Dolby TrueHD and DTS-HD Master Audio
- Dante AV-A mode supported when the license is activated
- Supports unicast and multicast functions
- Supports point-to-point, video matrix and video wall functions (video wall up to 9x9)
- Intelligent video wall class management
- Supports MJPEG substream real-time preview
- Operates on a 1G Ethernet switch
- Supports PoE (802.3af PD devices)
- Flexible control via Web GUI, TCP, RS-232, IR, APP and third-party central control
- Smart networking design for easy and flexible installation
| Video | |
| HDCP compliance | HDCP 2.2 |
| HDMI compliance | HDMI 2.0b |
| Video bandwidth | 18Gbps |
| Video resolution | Up to 4K60 4:4:4 |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color depth | Input: 8/10/12-bit (1080p60); Output: 8-bit |
| HDR | HDR10, Dolby Vision, HLG |
| Compression standard | JPEG2000 |
| Audio | |
| HDMI audio | LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master |
| Analog audio | LPCM 2.0, 192kHz |
| Network & Transmission | |
| Video network bandwidth | 1G Ethernet |
| Transmission distance | 328ft (100m) over CAT6/6A/7 |
| Topologies | Unicast and multicast; point-to-point, matrix, video wall up to 9x9 |
| Substream | MJPEG real-time preview |
| Dante | Dante AV-A mode (license-activated) |

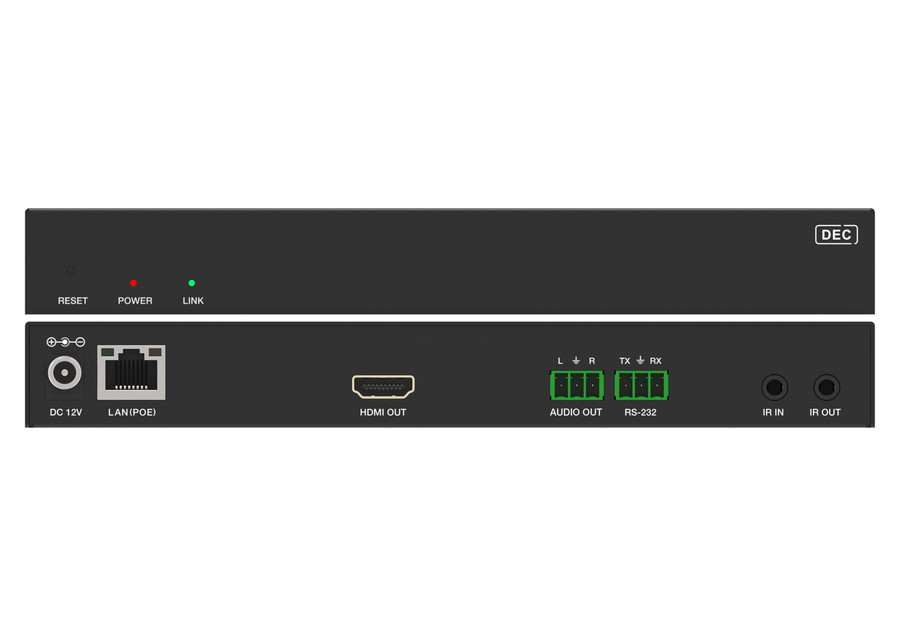

| Connections (Decoder) | |
| HDMI output | 1 x HDMI OUT (Type A, 19-pin female) |
| Analog audio output | 1 x L/R Audio OUT (3-pin 3.81mm Phoenix) |
| RS-232 | 1 x RS-232 (3-pin 3.81mm Phoenix) |
| LAN | 1 x LAN (PoE) RJ45 |
| IR | 1 x IR IN, 1 x IR OUT (3.5mm, 5V/12V) |
| IR | |
| IR level | 12V default, 5V optional |
| IR frequency | Wideband 20 - 60kHz |
| Power | |
| Power supply | Input: AC 100-240V 50/60Hz; Output: DC 12V/2.5A |
| PoE | 802.3af PD |
| Power consumption | 6.36W (max) |
| Power adapter certifications | CE, FCC, UL |
| Environmental | |
| Operating temperature | 14°F to 113°F (-10°C to 45°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity | 20 - 90% RH, non-condensing |
| ESD protection | IEC 61000-4-2: ±15KV air-gap, ±8KV contact |
| Physical | |
| Dimensions | 8.03" x 5.35" x 1.00" (204 x 136 x 25.5mm) |
| Weight | 1.34 lbs (609g) |
| Housing | Metal enclosure |
| Color | Black |
| Package Contents | |
| 1 | 4K60 over IP 1GbE Decoder |
| 1 | IR Receiver cable (1.5 meters) |
| 1 | IR Blaster cable (1.5 meters) |
| 3 | 3-pin 3.81mm Phoenix connector |
| 1 | 12V/2.5A locking power adapter (optional) |
| 1 | User manual |
| 2 | Mounting ear |
| 4 | Machine screw (KM3*4) |
UPC 813982021440
