4K60 4:4:4 JPEG2000 AV over IP Encoder — Slim PoE, Dante Ready
Add Visually Lossless 4K Sources over the Standard 1G Switch You Already Have — 18Gbps HDMI 2.0b, 9x9 Video Wall, IR/RS-232/CEC Passthrough
Adds visually lossless 4K60 4:4:4 sources to the standard 1G network you already have, so distribution scales one endpoint at a time instead of hitting the fixed port count of an HDMI matrix. The AVO-IPJP2KS-ENC is a slim metal encoder — 8.03" x 5.35" x 1.00" — that draws under 8W and powers from PoE (802.3af) on the same cable that carries its stream, so racks of source endpoints go in without local supplies and two units mount side by side in 1U. It is the entry, fixed-HDMI-source encoder in KanexPro's JPEG2000 range: the volume transmit endpoint for AV integrators who value reach, density, and cost-per-endpoint over 1G more than dual-LAN redundancy, GPIO contact control, or USB-C BYOD input.
JPEG2000 compression is intra-frame and visually lossless, holding full HDMI 2.0b 18Gbps 4K60 4:4:4 with HDR10, Dolby Vision, and HLG passthrough where an H.264 backbone would soften fine text and UI content. Unicast and multicast feed point-to-point, matrix, and video-wall layouts up to 9x9 with intelligent class management, while an MJPEG substream gives control apps a live preview of every source. IR, RS-232, and CEC ride the same Ethernet for display control, an on-board 1G switch supports daisy-chaining, and license-activated Dante AV-A lets the same hardware join a networked-audio design without a hardware swap — the flexibility fixed-codec encoders at twice the price per endpoint do not offer. The matching AVO-IPJP2KS-DEC decoder is sold separately.
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, per HDMI 2.0b
- Passes HDR10, Dolby Vision and HLG
- Signal transmission up to 328 ft / 100 m over CAT6/6A/7 cable
- Transmits video, analog audio, IR, RS-232 and CEC over Ethernet
- HDMI audio up to LPCM 7.1, Dolby Digital / Plus / EX, Dolby TrueHD and DTS-HD Master Audio
- Dante AV-A mode supported with license activation
- Supports unicast and multicast
- Point-to-point, video-matrix and video-wall modes, with video wall up to 9x9
- Intelligent video-wall class management
- MJPEG substream for real-time preview
- Built-in 1G Ethernet switch
- PoE powered (802.3af PD)
- Flexible control via Web GUI / TCP / RS-232 / IR / app and third-party control systems
- Smart networking design for easy, flexible installation
| Video | |
| HDMI compliance | HDMI 2.0b |
| HDCP compliance | HDCP 2.2 |
| Video bandwidth | 18Gbps |
| Video compression | JPEG2000 |
| Video network bandwidth | 1G |
| Video resolution | Up to 4K@60Hz 4:4:4 |
| HDR support | HDR10, Dolby Vision, HLG |
| Color depth | Input: 8 / 10 / 12-bit (1080p@60Hz); Output: 8-bit |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Audio | |
| HDMI audio formats | LPCM 2.0 / 5.1 / 7.1CH, Dolby Digital / Plus / EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master |
| Analog audio formats | LPCM 2.0, 192kHz |
| Distribution | |
| Streaming modes | Unicast and multicast |
| Display modes | Point-to-point, video matrix, video wall (up to 9x9) |
| Preview | MJPEG substream, real-time |
| Transmission distance | 100m (328 ft) over CAT6 / 6A / 7 |

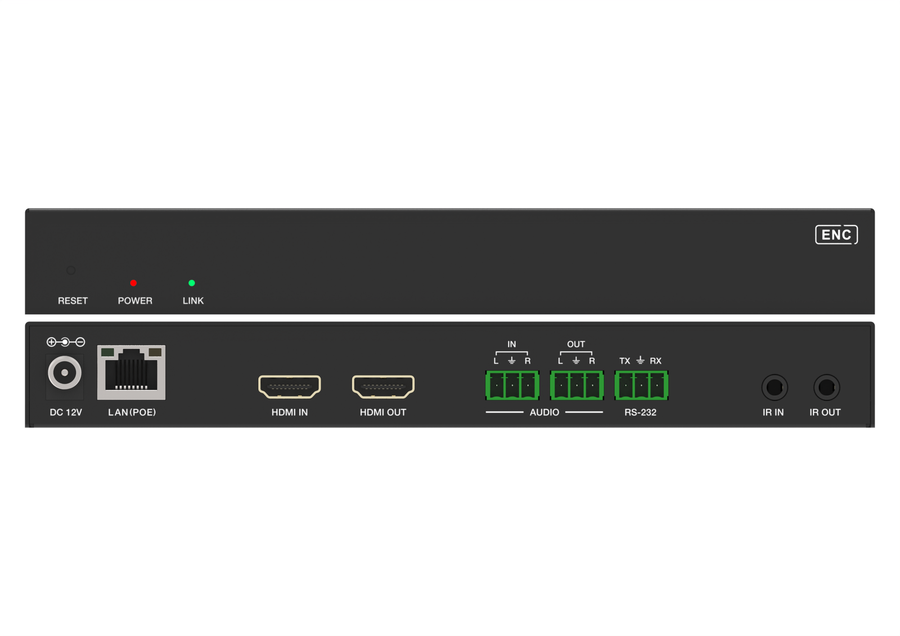

| Connections (Encoder) | |
| Input | 1 x HDMI IN [Type A, 19-pin female]; 1 x L/R Audio IN [3-pin 3.81mm Phoenix] |
| Output | 1 x HDMI OUT [Type A, 19-pin female]; 1 x L/R Audio OUT [3-pin 3.81mm Phoenix] |
| Control | 1 x RS-232 [3-pin 3.81mm Phoenix]; 1 x LAN (PoE) [RJ45]; 1 x IR IN [3.5mm jack, 5V/12V]; 1 x IR OUT [3.5mm jack, 5V/12V] |
| Control & Passthrough | |
| Control methods | Web GUI, TCP, RS-232, IR, app and third-party control systems |
| Passthrough | IR, RS-232 and CEC over Ethernet |
| IR level | Default 12V, optional 5V |
| IR frequency | Wideband 20kHz - 60kHz |
| Networked audio | Dante AV-A mode, license-activated |
| HDMI Cable Reach by Resolution | |
| 4K60 | 16 ft / 5 m |
| 4K30 | 32 ft / 10 m |
| 1080p60 | 50 ft / 15 m |
| Power | |
| Power input | AC 100-240V, 50/60Hz |
| Power adapter output | DC 12V / 2.5A |
| PoE | Supported, 802.3af PD |
| Power consumption (max) | 7.68W |
| Physical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions | 8.03" x 5.35" x 1.00" (204 x 136 x 25.5mm) |
| Weight | 1.36 lbs (0.62kg) |
| Rack mounting | 1U V2 (two units side by side) or 6U V2 (6, 8 or 10 units), brackets included |
| Environmental | |
| Operating temperature | 14°F ~ 113°F (-10°C ~ 45°C) |
| Storage temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Relative humidity | 20 - 90% RH, non-condensing |
| ESD protection | IEC 61000-4-2: ±15kV air discharge, ±8kV contact discharge |
| Certifications | |
| Certifications | CE, FCC, UL; meets US/EU standards |
UPC 813982021433
