Home  / Flex Matrix Pro  /  4K60 HDBaseT Output Card for Flex Matrix Pro
FLEX-PROCAT-OUT
Your reference

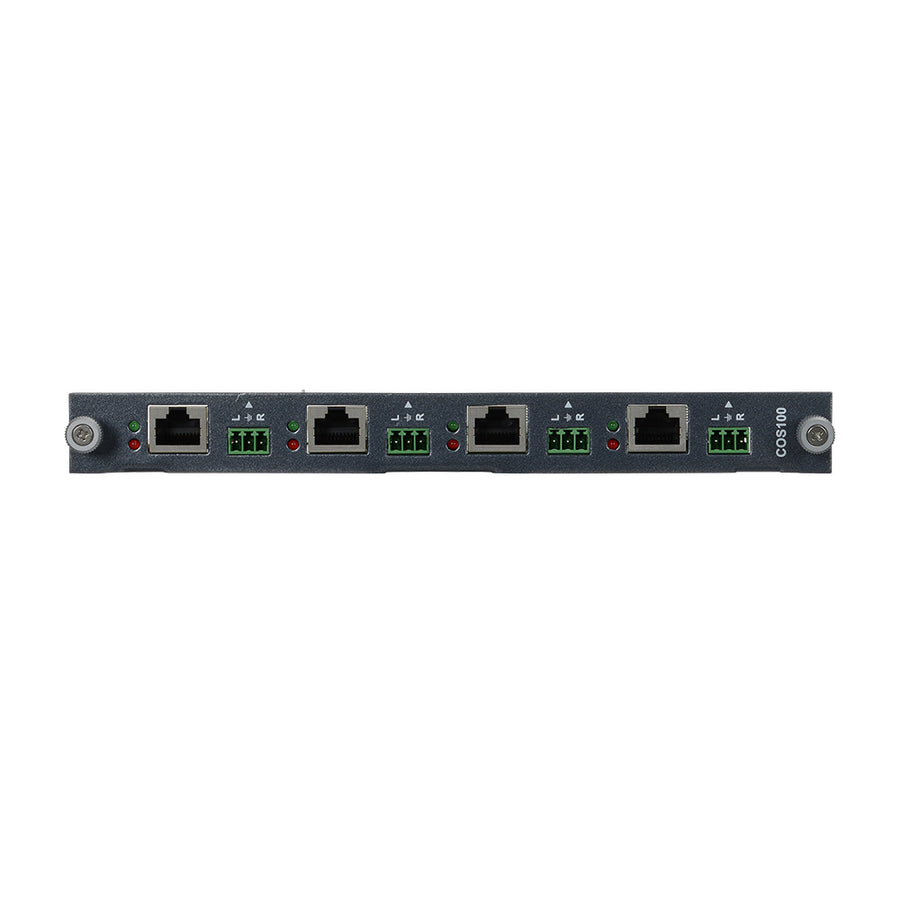

4K60 HDBaseT Output Card for Flex Matrix Pro

4-Port CAT Output — 330ft Extension, PoC, Dante/AES67 & TAA

FLEX-PROCAT-OUT
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

Add four CAT (HDBaseT 3.0) outputs to any Flex Matrix Pro chassis. The FLEX-PROCAT-OUT delivers 4K60 4:4:4 at 18Gbps with HDCP 2.2, HDR, scaling, and Dante/AES67 per port.

Seamless switching. EDID/HDCP management. Hot-swappable. TAA compliant. 330ft (100m) via CAT6A. PoC supported.

Key features
  • 4× CAT (HDBaseT 3.0) outputs — hot-swappable across all Flex Pro chassis (16×16 to 128×128)
  • 4K60 4:4:4 at 18Gbps • HDCP 2.2 • HDR
  • Dante/AES67 network audio • 8ch LPCM High-Res Audio
  • Independent scaling per output • seamless switching • EDID/HDCP management
  • 330ft (100m) uncompressed 4K60 via CAT6A • PoC • bi-directional RS-232
  • Hot-swappable • TAA compliant
ManualInstallation & operation
Spec sheetFull specification

UPC 813982023741
