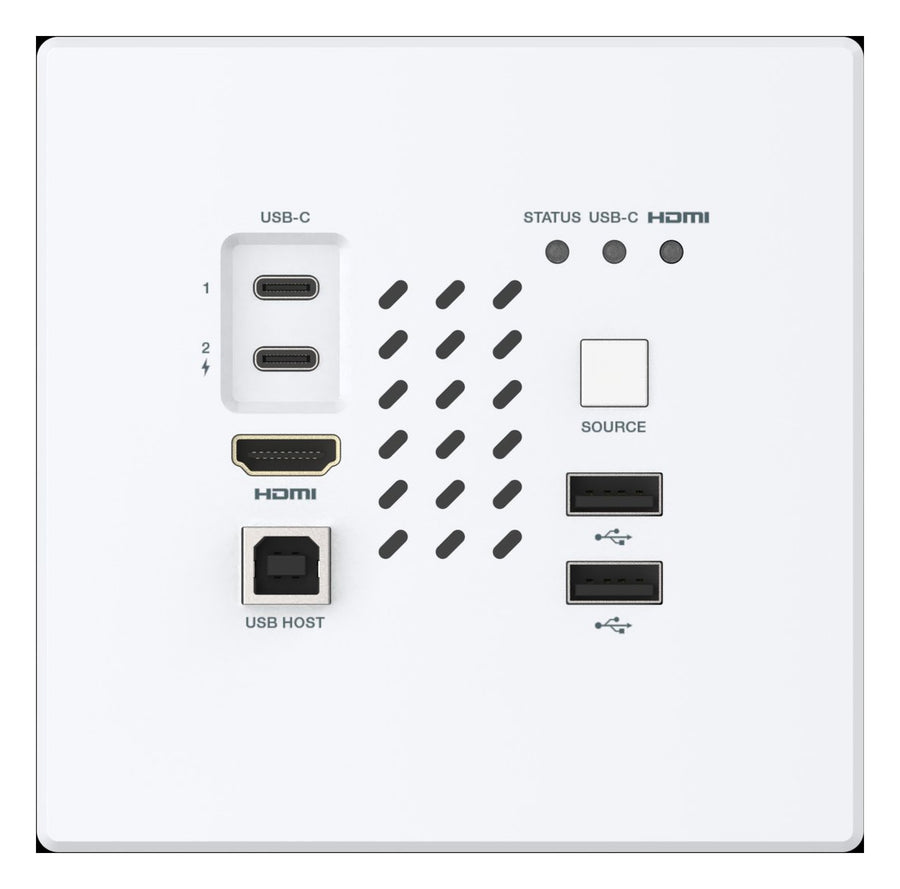

4K60 JPEG2000 AV over IP BYOD Wall Plate Encoder — Magnetic Mount
US 2-Gang Magnetic-Attachment with HDMI + USB-C Dual Input, PD 100W Laptop Charging & Dante Ready over 1G
Puts JPEG2000 BYOD encoding directly in the wall with tool-free magnetic panel attachment — a US 2-gang wall plate that accepts both HDMI and USB-C from any presenter, auto-switches to the active source, and delivers up to 100W of PD charging back to the connected laptop. The AVO-IPJP2KWPM snaps into place magnetically for clean, screwless installation at any presenter position — ideal for conference rooms, classrooms, and boardrooms where appearance and fast serviceability matter.
Distributes visually lossless 4K60 4:4:4 JPEG2000 video to any AVO-IPJP2K-series decoder on the same 1G managed network. Supports matrix switching and video wall up to 9×9 via the AVO-IPCTL-JP2K controller. Optional Dante AV-A, USB 2.0 KVM, and MJPEG sub-stream preview. Encoder only — order with the decoder of your choice.
- US 2-gang magnetic-attachment wall plate — tool-free snap-in panel installation
- HDMI and USB-C dual inputs with automatic source switching
- USB-C IN 1: video, audio, and USB data from laptop — USB-C IN 2: PD 100W charging back to source device
- JPEG2000 visually lossless 4K60 4:4:4 distribution over standard 1G managed networks
- LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X audio passthrough
- USB 2.0 KVM with RS-232 pass-through and CEC control
- Optional Dante AV-A integration (license activated)
- HDMI 2.0b, HDCP 2.2, 18Gbps — unicast, multicast, matrix switching, video wall up to 9×9
- PoE (802.3af PD) or DC 12V/2.5A
- MJPEG sub-stream preview
- Web GUI, RS-232, TCP/IP, CEC control
- Encoder only — pairs with any AVO-IPJP2K-series decoder
| Specification | |
|---|---|
| Technical | |
| Video Compression | JPEG2000 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Max Resolution | 4K@60Hz 4:4:4 |
| Color Depth | Input: 8/10/12-bit — Output: 8-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDR Support | HDR10, Dolby Vision, HLG |
| Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X |
| Audio Return | Analog only (3.5mm Phoenix) |
| Dante | Optional AV-A (license activated) |
| Video Wall | Up to 9×9 (81 displays) |
| Preview Stream | MJPEG sub-stream |
| Transmission Distance | Up to 328ft / 100m via CAT6/6A/7 |
| ESD Protection | IEC 61000-4-2: ±15kV (air-gap) / ±8kV (contact) |
| Connection | |
| Video Input | 1× HDMI IN (Type A) | 1× USB-C IN 1 — video/audio/USB data | 1× USB-C IN 2 — PD charging up to 100W |
| Audio Input | 1× Audio IN (3-pin 3.5mm Phoenix, unbalanced) |
| Audio Output | 1× Audio OUT (3-pin 3.5mm Phoenix, unbalanced) |
| Network | 1× LAN/PoE (RJ45, 802.3af PD) |
| USB | 1× USB 2.0 HOST (Type B) | 2× USB 2.0 DEVICE (Type A) |
| Control | 1× RS-232 (3-pin 3.5mm Phoenix) |
| Control & Power | |
| Control Methods | Web GUI, RS-232, TCP/IP, CEC, IR |
| Controller | AVO-IPCTL-JP2K (sold separately) |
| Power | PoE (802.3af PD) or DC 12V/2.5A multinational |
| Physical | |
| Form Factor | US 2-gang wall plate — Magnetic-Attachment Panel Type |
| Housing | Aluminum panel + Iron case |
| Dimensions (W×H×D) | 4.56″ × 4.50″ × 1.74″ (115.9 × 114.3 × 44.25mm) |
| Net Weight | 0.77 lbs (350g) |
| Power Supply | AC100–240V 50/60Hz, DC 12V/2.5A output (multinational) |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Humidity | 20–80% RH (non-condensing) |
| Package Contents | |
| 1× | AVO-IPJP2KWPM Encoder Wall Plate |
| 3× | 3-pin 3.5mm Phoenix connectors |
| 1× | DC 12V/2.5A multinational power supply |
| 1× | User manual |
UPC 813982021150
