EXT-50M18G
Your reference

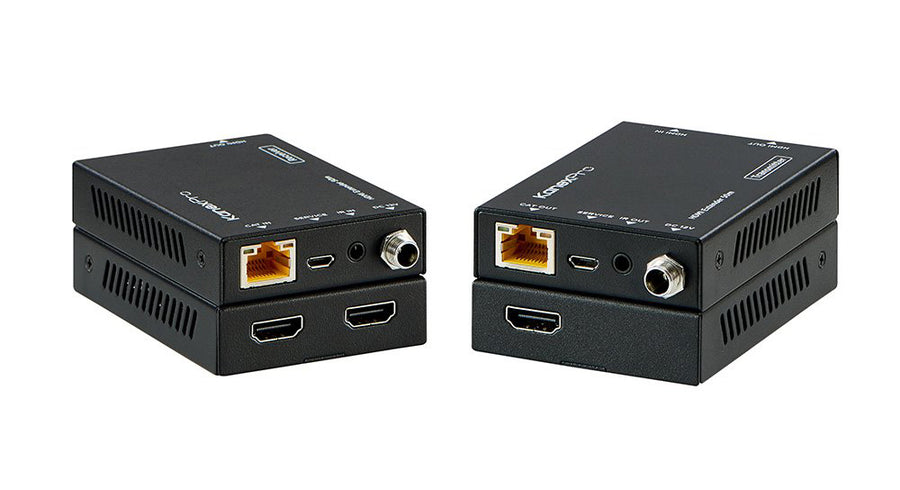

4K60Hz 18Gbps HDMI Extender over Cat5e/6 - 50M
4K@60Hz | 18Gbps | HDMI Loop-Out | HDR | RS-232 | Bi-directional IR | 3-Year Warranty
Overview
The KanexPro EXT-50M18G is an ultra-slim 4K@60Hz 18Gbps HDMI extender that transmits UHD 4K video with HDR and 4:4:4 chroma over a single Cat5e/6 cable to 50M (164 ft.). The TX unit includes an HDMI loop-out for connecting a local confidence monitor without splitting the signal.
RS-232 and bi-directional IR pass-through enable full remote control from both ends. Dolby TrueHD and DTS Master Audio pass-through preserve premium audio formats. Ultra-slim 18mm profile fits cleanly behind displays or in equipment pockets. Backed by KanexPro's 3-year warranty.
Key features
- Ultra-slim 4K@60Hz 18Gbps HDMI extender over single Cat5e/6 up to 50M (164 ft.)
- HDMI loop-out on TX unit for local display or confidence monitoring
- HDR (High Dynamic Range) and 4:4:4 chroma color sampling support
- Bi-directional IR and RS-232 control pass-through
- Dolby TrueHD and DTS Master Audio ready
- HDCP 2.2 and EDID compliant
- Zero configuration plug-and-play
- Ultra-slim form factor: 61x88x18mm TX and RX
- 3-year KanexPro warranty
| Specification | Value |
|---|---|
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Bandwidth | 18Gbps |
| Max Resolution | 4K x 2K @ 60Hz (4:2:0) | HDR 4:4:4 |
| HDMI Loop-Out | Yes — TX unit |
| Cable | Single Cat5e / Cat6 |
| Max Distance | 50M (164 ft.) at 4K@60Hz |
| Control | Bi-directional IR + RS-232 pass-through |
| Audio | Dolby TrueHD | DTS Master Audio |
| Power | DC 12V/1A |
| Dimensions | 61 x 88 x 18mm (TX and RX) |
| Weight | TX 160g | RX 155g |
| Operating Temp | -10 to 55 degrees C |
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required
UPC 813982022065
