EXT-HDMICAS70MRX
Your reference
4K60Hz HDMI Cascading Extender Receiver over Cat6 - 70M
Add-on RX for EXT-HDMICAS70M | 4K@60Hz | Per-Display EDID | 3-Year Warranty
Overview

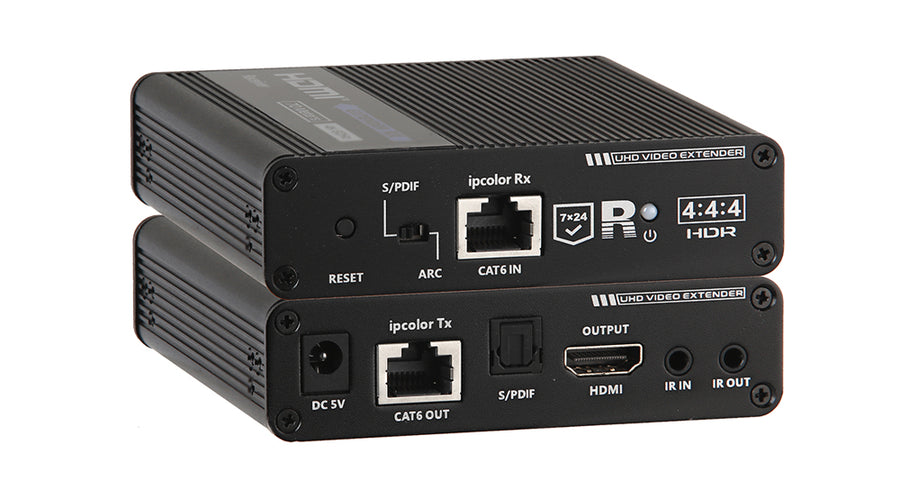

The KanexPro EXT-HDMICAS70MRX is the add-on receiver unit for the EXT-HDMICAS70M cascading HDMI extender system. Each unit adds one additional display location — up to 9 additional receivers per TX, for a total of 10 display endpoints from a single source.
Each EXT-HDMICAS70MRX independently manages the connected display's resolution and EDID, auto-adapting for mixed-resolution environments. Bi-directional IR control and ARC S/PDIF audio de-embed included. Requires EXT-HDMICAS70M transmitter kit. Backed by KanexPro's 3-year warranty.
Key features
- Add-on receiver unit for the EXT-HDMICAS70M cascading extender system — sold separately
- Supports 4K@60Hz HDR over single Cat6/6a/7 up to 70M per run
- Independently manages display resolution and EDID — auto-adapts to connected display
- HDCP 2.2 support
- Bi-directional IR pass-through 20-60KHz — IR blasters included
- ARC S/PDIF digital audio de-embedded output
- Plug-and-play — no configuration required
- Compact aluminum chassis: 106x99x26.2mm, 210g
- 3-year KanexPro parts and labor warranty
| Specification | Value |
|---|---|
| Type | Add-on RX unit — pairs with EXT-HDMICAS70M |
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Max Resolution | 4K x 2K @ 60Hz (4:4:4 HDR) |
| Cable | Single Cat6 / Cat6a / Cat7 |
| Max Distance | 70M (230 ft.) per Cat6 run |
| EDID | Independent per-receiver management |
| IR | Bi-directional 20-60KHz (blasters included) |
| Audio | ARC S/PDIF de-embedded |
| Power | DC 5V-12V | RX less than 4W |
| Weight | RX 210g |
| Operating Temp | -20 to 60 degrees C |
