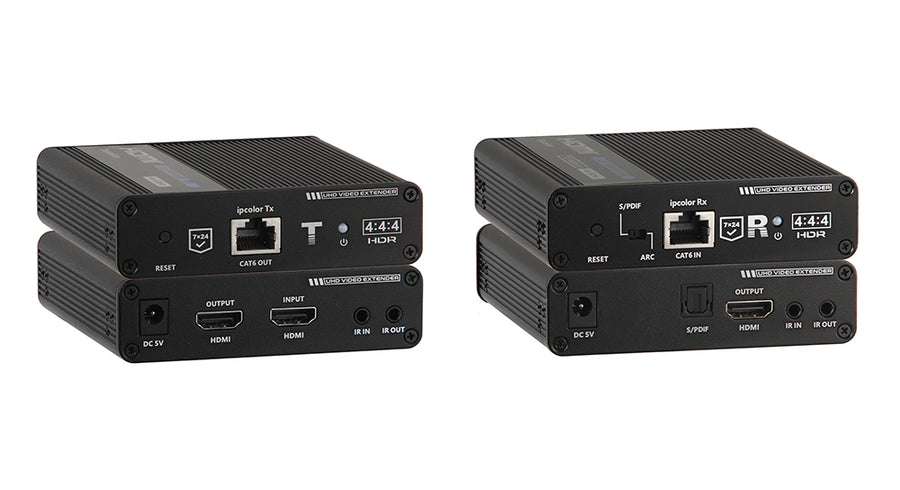

EXT-4KHD70M
Your reference
4K60Hz HDMI Extender over Cat6 - 70M
4K@60Hz HDR | Zero Latency | IR Bi-directional | ARC S/PDIF | 3-Year Warranty
Overview
The KanexPro EXT-4KHD70M extends 4K@60Hz HDR HDMI over a single Cat6 cable up to 70 meters (230 ft.) with zero latency and zero configuration. Transmit full 4:4:4 HDR video and audio from any HDMI 2.0 source to a remote display with HDCP 2.2 protection and automatic EDID management.
Bi-directional IR pass-through (IR blasters included) enables remote control of source equipment from the display location. An ARC S/PDIF output on the receiver de-embeds digital audio for local amplifiers or soundbars. Compact aluminum chassis. Backed by KanexPro's 3-year warranty.
Key features
- Zero latency 4K@60Hz HDR (YUV 4:4:4) over single Cat6/6a/7 up to 70M (230 ft.)
- HDCP 2.2 and EDID support for reliable handshake with all display types
- Bi-directional IR pass-through 20-60KHz — IR TX/RX blasters included
- ARC S/PDIF digital audio de-embedded output on receiver
- Simple plug-and-play setup — zero configuration required
- Compact aluminum chassis: 106x99x26.2mm, 210g TX/RX
- Power: DC 5V-12V, less than 4W per unit
- 3-year KanexPro parts and labor warranty
| Specification | Value |
|---|---|
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Max Resolution | 4K x 2K @ 60Hz (4:4:4 HDR) |
| Cable | Single Cat6 / Cat6a / Cat7 |
| Max Distance | 70M (230 ft.) at 4K@60Hz |
| IR | Bi-directional 20-60KHz (TX/RX included) |
| Audio | ARC S/PDIF de-embedded on RX |
| Power | DC 5V-12V | TX less than 4W | RX less than 4W |
| Dimensions | 106 x 99 x 26.2mm (TX and RX) |
| Weight | TX 210g | RX 210g |
| Operating Temp | -20 to 60 degrees C |
| Storage Temp | -30 to 70 degrees C |
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required
UPC 813982022782
