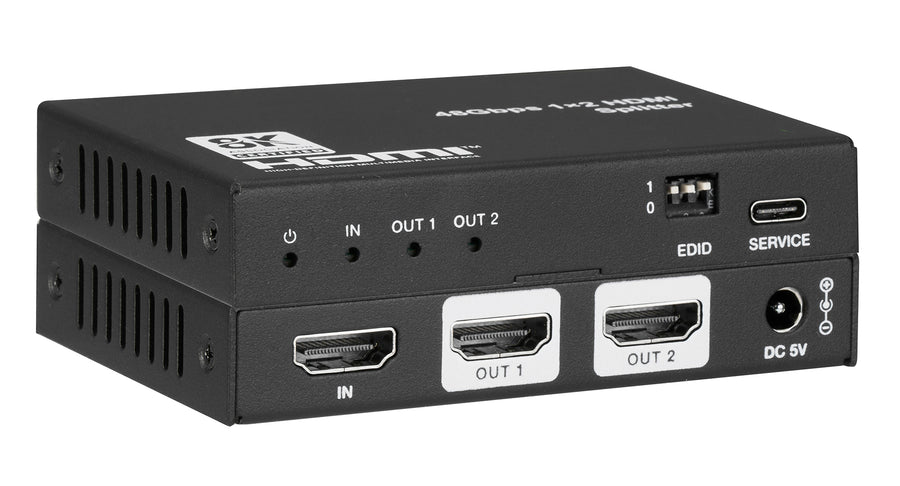

8K 1×2 HDMI 2.1 Splitter with Auto Downscaling
48Gbps, HDCP 2.3, HDR?SDR Converting, Dolby Atmos/DTS:X, EDID DIP
Split one 8K HDMI 2.1 source to two displays with automatic downscaling and HDR-to-SDR conversion — enabling mixed-resolution environments without manual configuration. The KanexPro SP-HD1X28K delivers 48Gbps bandwidth and supports resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit. Its auto downscaling independently adjusts each output (8K→4K or 8K/4K→1080p) based on connected display capabilities, while HDR-to-SDR conversion ensures compatibility with legacy SDR displays.
HDMI 2.1 and HDCP 2.3 compliant. Supports VRR, ALLM, QMS, QFT, and SBTM. Full HDR pass-through (HDR10, HDR10+, Dolby Vision, HLG). Audio includes LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. 8-mode EDID DIP switch for deterministic resolution control. Metal enclosure (95 × 68 × 18 mm, 177 g), 4.3W max, with USB-C service port for firmware updates.
- HDCP 2.3 compliant
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
- HDR to SDR auto converting on all outputs
- Advanced EDID management
- Compact design for easy and flexible installation
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact) |
| Connection | |
| Input | 1 × HDMI IN [Type A, 19-pin female] |
| Output | 2 × HDMI OUT [Type A, 19-pin female] |
| Control | 1 × SERVICE [USB Type-C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 95mm (W) × 68mm (D) × 18mm (H) |
| Weight | 177g |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 5V/2A (CE/FCC/UL certified) |
| Power Consumption | 4.3W (Max) |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | −20°C – 60°C / −4°F – 140°F |
| Relative Humidity | 20–90% RH (Non-condensing) |
| Package Contents | |
| Included | 1 × 48Gbps 1×2 Splitter, 1 × 5V/2A Multinational Power Supply, 1 × User Manual |
UPC 813982023598
