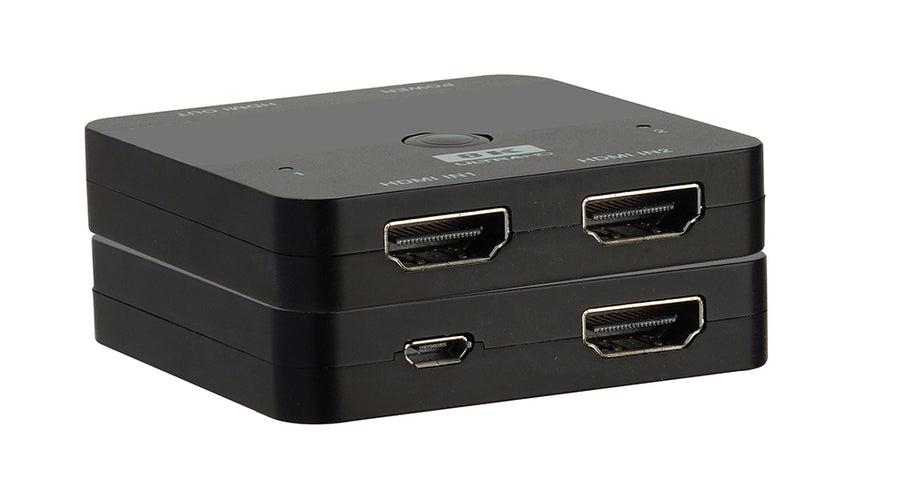

8K 2×1 HDMI 2.1 Switcher
48Gbps, HDCP 2.3, HDR/Dolby Vision, 4K@120Hz, VRR/ALLM, Auto-Switch
Switch between two 8K HDMI 2.1 sources on a single display with a simple top-mounted button press — no remote, no configuration, no external power supply required. The KanexPro SW-2X18K is an ultra-compact 2×1 HDMI switcher that delivers 48Gbps bandwidth and 8K@60Hz 4:4:4 resolution in a palm-sized form factor. USB-powered and plug-and-play, it is the simplest way to add a second HDMI source to any 8K or 4K display.
Compliant with HDMI 2.1 and HDCP 2.3, the switcher supports 8K@60Hz 4:4:4, 4K@120Hz 4:4:4, and all HDR formats including HDR10, HDR10+, Dolby Vision, and HLG. VRR, ALLM, and FVA optimize gaming performance. Auto-switch detects active input automatically; manual override via the top button. Built-in equalizer and driver maintain signal integrity. Plastic enclosure measuring just 60 × 60 × 12 mm and weighing 31 g, powered by USB 5V at 1.25W max.
- HDMI 2.1 and HDCP 2.3 compliant
- Support 48Gbps video bandwidth
- 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- VRR, FVA, ALLM support
- Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- 2x1 switch output, auto switch supported
- Built-in Equalizer and Driver
- Auto EDID management
- Compact design for easy and flexible installation
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Connection | |
| Input | 2 × HDMI IN [Type A, 19-pin female] |
| Output | 1 × HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 60mm (W) × 60mm (D) × 12mm (H) |
| Weight | 31g |
| Power Supply | USB 5V |
| Power Consumption | 1.25W (Max) |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | −20°C – 60°C / −4°F – 140°F |
| Relative Humidity | 20–90% RH (Non-condensing) |
| Package Contents | |
| Included | 1 × 8K 2×1 HDMI Switcher, 1 × Micro USB Power Cable, 1 × User Manual |
UPC 813982023079
