8K 2×2 HDMI Switching Splitter with EDID Management
40Gbps, HDCP 2.3, HDR/Dolby Vision, 4K@120Hz, VRR/ALLM, Dual Output

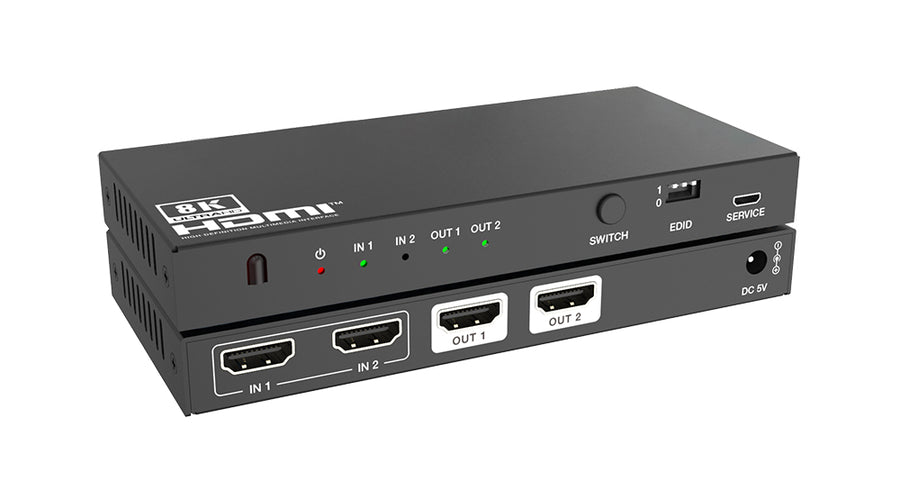

Switch between two 8K HDMI 2.1 sources and distribute the selected input to two displays simultaneously — functioning as both a switcher and a splitter in a single compact device. The KanexPro SW-2X28K resolves a common integration challenge: mirroring a single source across two displays while retaining the ability to switch between sources. Its 8-position EDID DIP switch ensures reliable handshake across mixed-resolution display environments.
Compliant with HDMI 2.1 and HDCP 2.3, the SW-2X28K delivers up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4 at 40Gbps bandwidth. Full HDR pass-through — HDR10, HDR10+, Dolby Vision, and HLG — preserves cinematic image quality across both outputs. VRR, ALLM, and FVA optimize gaming performance. Built-in equalizer, retiming, and driver compensate for signal loss over longer HDMI runs. Control via IR remote or front-panel button. Compact metal enclosure drawing 6.15W.
- HDMI 2.1 and HDCP 2.3 compliant
- Support 40Gbps video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- VRR, FVA, ALLM supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- 2x2 Switch with Dual Output
- Built-in Equalizer, Retiming and Driver
- Advanced EDID management
- Support IR remote control and front panel button switching
- Compact design for easy and flexible installation
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 40Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| ESD Protection | ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connection | |
| Input | 2 × HDMI IN [Type A, 19-pin female] |
| Output | 2 × HDMI OUT [Type A, 19-pin female] |
| Control Ports | 1 × SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 145mm (W) × 68mm (D) × 17mm (H) |
| Weight | 265g |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 5V/2A (CE/FCC/UL certified) |
| Power Consumption | 6.15W (Max) |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | −20°C – 60°C / −4°F – 140°F |
| Relative Humidity | 20–90% RH (Non-condensing) |
| Package Contents | |
| Included | 1 × 8K 2×2 HDMI Switching Splitter, 1 × IR Remote, 1 × 5V/2A Multinational Power Supply, 1 × User Manual |
UPC 813982023123
