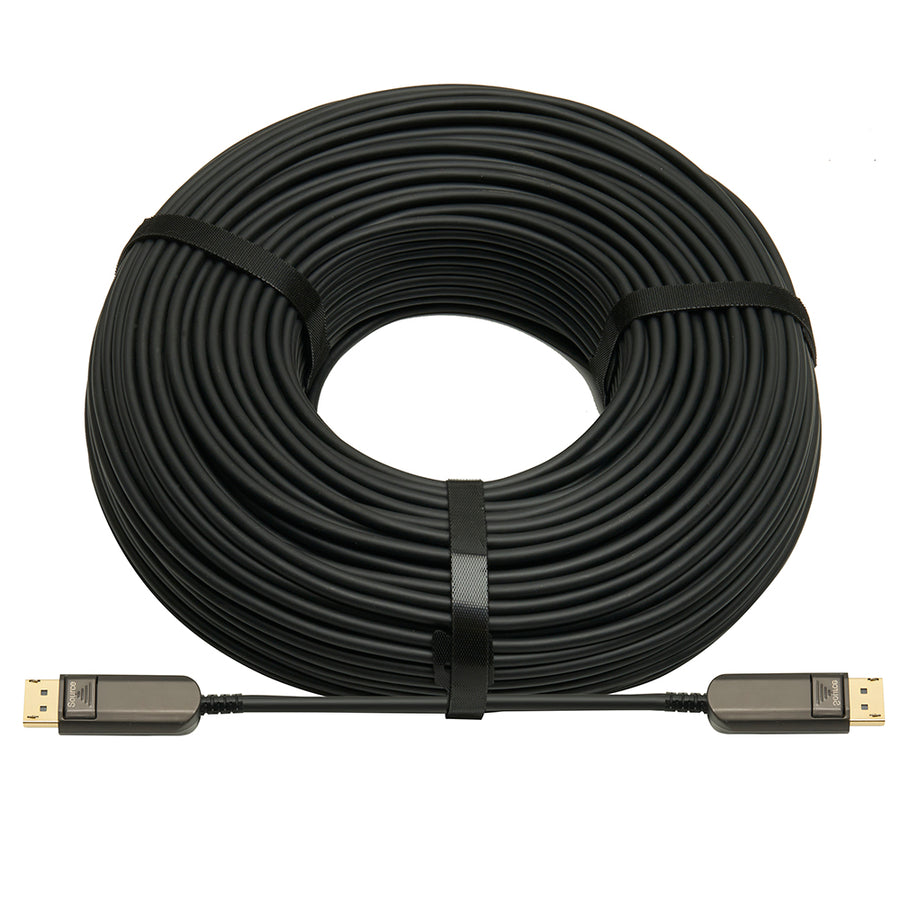

8K DisplayPort 2.0 Active Optical Cable — 90
40Gbps UHBR10 | 8K@60Hz | 4K@144Hz | AMD FreeSync® 2.0 | 3-Year Warranty
KanexPro Active Optical DisplayPort 2.0 Cables deliver full, uncompressed 40Gbps UHBR10 signal across runs of 30, 60, or 90 meters — far beyond copper cable limits. Built on a hybrid 4× optical fiber + 8× copper construction, these plug-and-play cables carry 8K@60Hz, 4K@144Hz, and HDR with zero signal loss, drawing power directly from the DisplayPort source — no wall adapters or repeaters required.
Supporting MST daisy-chaining, AMD FreeSync® 2.0, Dolby Vision, HDCP 1.4/2.2, and full EDID management, the CBL-AOCDP8K series is engineered for professional AV environments where EMI immunity and signal integrity are non-negotiable. Backed by KanexPro's 3-year warranty.
- Supports DisplayPort 2.0 UHBR10 standard — 10Gbps per lane, 40Gbps total bandwidth
- Resolutions up to 8K@60Hz and 4K@144Hz with 48-bit color depth
- High Dynamic Range (HDR) video pass-through including Dolby Vision
- Multi-Stream Transport (MST) support for daisy-chaining multiple displays
- AMD FreeSync® 2.0 compatible for variable refresh rate displays
- HDCP 1.4 and HDCP 2.2 compliance for protected content delivery
- Full EDID support and bidirectional AUX channel for link training
- Supports DisplayPort Dual-Mode (DP++) for passive adapter compatibility
- Bus-powered — draws <0.5W per end from source device; no external power required
- EMI/RFI immune optical transmission — 4× 850nm fiber + 8× copper hybrid, 4.8mm OD
- Directional cable: SOURCE and DISPLAY ends labeled on each connector
| Specification | Value |
|---|---|
| Signal | |
| Standards | DisplayPort 2.0 / UHBR10 · HDCP 1.4 / 2.2 |
| Bandwidth | 10Gbps per lane · 40Gbps total |
| Max Resolution | 8K @ 60Hz (7680×4320) |
| Max Refresh (4K) | 4K @ 144Hz |
| Color Depth | 48-bit |
| Pixel Clock | 810 MHz |
| Construction | |
| Connector | 20-pin DisplayPort Male (both ends, directional) |
| Optical Technology | 4× 850nm Multi-mode VCSEL Tx · 4× GaAs PIN Rx |
| Cable Type | Hybrid: 4× optical fiber + 8× copper conductor |
| Cable OD | 4.8mm |
| Length | 90 meters (295 ft.) |
| Power | |
| Power Source | Bus-powered from DisplayPort source (3.3V) |
| Power Consumption | <0.5W per end · No external supply required |
| Environmental | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | −20°C to 80°C |
| Humidity | 5% to 85% non-condensing |
| Mechanical | |
| Min Bend Radius | 48mm |
| Max Tensile Load | 300N |
UPC 813982023420
