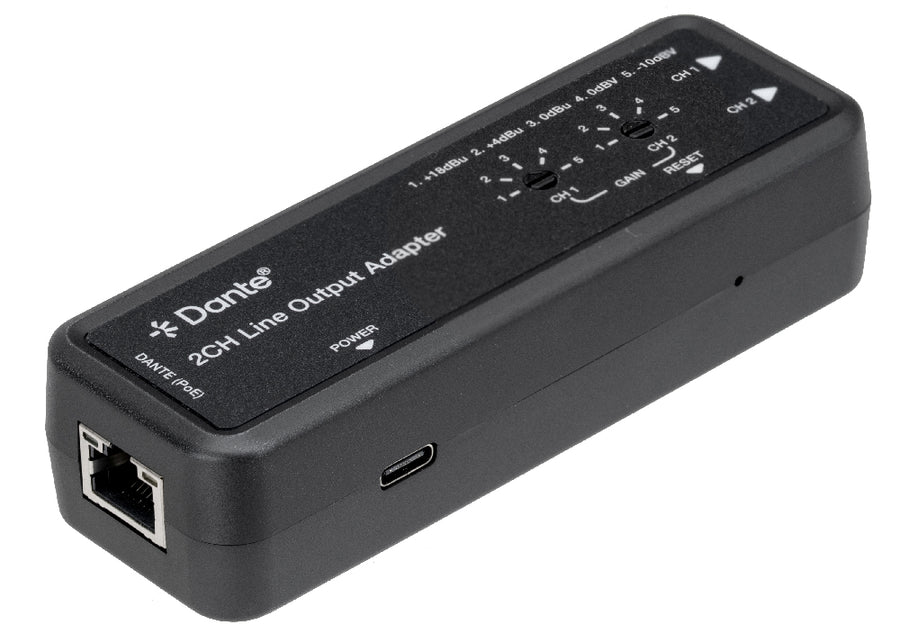

Dante® 2-Channel Line Output Adapter

Convert Dante digital audio to balanced or unbalanced analog line output with studio-grade fidelity. The KanexPro AUD-DTE-LINEOUT is a compact 2-channel Dante line output adapter built on the Dante Ultimo 2x2 platform. It receives Dante digital audio over a standard IP network and converts it to two channels of balanced or unbalanced analog audio through a 6-pin phoenix connector — ideal for permanent installations feeding amplifiers, powered speakers, and legacy audio equipment.

Five discrete gain levels (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV) cover every professional and consumer reference standard. Dual power options — PoE (802.3af Class 0) and USB-C (5V/500mA) — eliminate the need for external power supplies.

• Dante 2CH digital audio to two-channel balanced/unbalanced analog audio output
• Built on the Dante Ultimo 2x2 platform for full Dante ecosystem interoperability
• Supports 44.1/48/88.2/96kHz sampling rates at 24-bit resolution
• 5-level discrete gain adjustment (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV)
• Balanced output: +18dBu max / Unbalanced: +12dBu max
• Studio-grade audio: >100dB S/N ratio, <0.01% THD+N
• Configurable Dante device latency: 1, 2, or 5ms
• Dual power: PoE (IEEE 802.3af Class 0) and USB-C (5V/500mA)
• 6-pin 3.5mm phoenix connector for permanent installation
