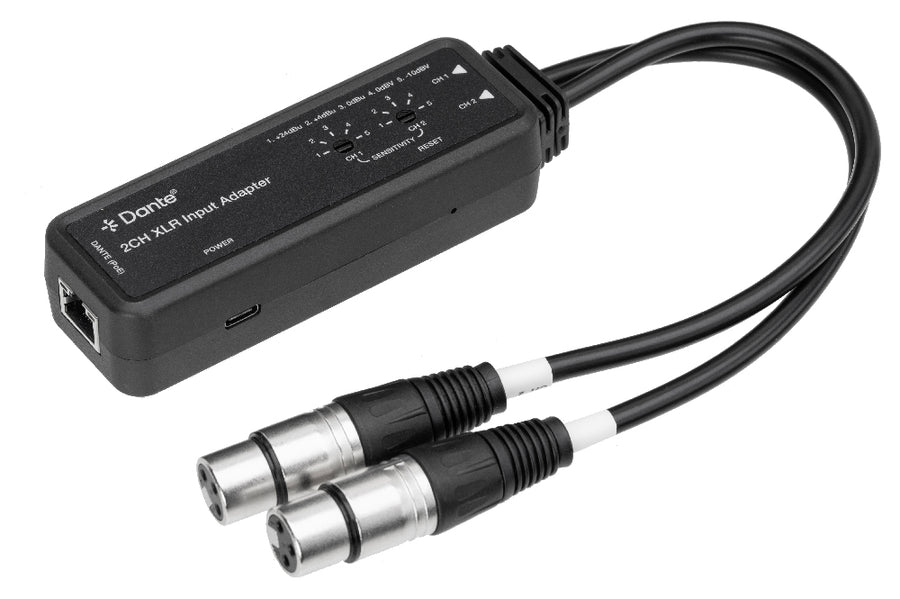

Dante® 2-Channel XLR Input Adapter
Convert Professional XLR Audio to Dante® Digital Audio
The KanexPro AUD-DTE-XLRIN converts two-channel balanced or unbalanced XLR analog audio into Dante® digital audio for professional AV and networked sound environments. Built on the Dante Ultimo 2×2 platform, it accepts microphones, mixers, and pro-audio line sources directly via integrated 30cm XLR pigtail leads, eliminating the need for a separate stagebox or rack-mount interface.
Five selectable input sensitivity levels (+24dBu to −10dBv) deliver precise gain staging at the source. Powered by PoE (802.3af Class 0) or USB-C, it installs anywhere on the network with minimal cabling. Configurable latency (1, 2, or 5ms) and AES67 compatibility ensure integration into any professional Dante® ecosystem.
- Converts 2-channel balanced/unbalanced XLR analog audio to Dante® 2CH digital audio
- Five input sensitivity levels: +24dBu, +4dBu, 0dBu, 0dBv, −10dBv — per-channel adjustment
- Dante® audio sampling up to 96kHz at 24-bit; AES67 compatible
- Configurable Dante® device latency: 1, 2, or 5ms via Dante® Controller
- Integrated 30cm XLR pigtail leads (CH1 + CH2) — direct mic/line connection, no adapter required
- Dual power: PoE IEEE 802.3af Class 0 or USB-C 5V/500mA
- High-performance audio: SNR >100dB, THD+N <0.01% at +4dBu/1kHz, 20Hz–20kHz ±0.5dB
| Input | 2× XLR IN (balanced/unbalanced, 30cm pigtail); 1× USB-C (power/firmware) |
| Output | 1× Dante® RJ45 (PoE) |
| Audio Format Out | PCM 2CH, 44.1/48/88.2/96kHz @ 16/24-bit |
| Input Sensitivity | +24dBu / +4dBu / 0dBu / 0dBv / -10dBv (5-level, per channel) |
| Input Impedance | 20kO balanced / 10kO unbalanced |
| Latency | 1 / 2 / 5ms configurable |
| SNR / THD+N | >100dB / <0.01% @ +4dBu, 1kHz |
| Frequency Response | 20Hz–20kHz ±0.5dB |
| Transmission | Up to 100m / 328ft (CAT6/6A/7) |
| Power | USB-C 5V/500mA or PoE IEEE 802.3af Class 0 | 2W max |
| Dimensions | 115 × 40 × 28mm | 173g | Plastic, Black |
| Weight | 0.38 lbs |
| Temperature | Operating: 0°C–40°C | Storage: -20°C–60°C |
| Package Contents | |
|---|---|
| 1× Dante 2CH XLR Input Adapter | |
| 2× Hook & Loop Fasteners | |
| 1× User Manual | |
UPC 813982024052
