Dante® 2-Channel XLR Output Adapter

Convert Dante® Digital Audio to Professional XLR Output

AUD-DTE-XLROUT
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

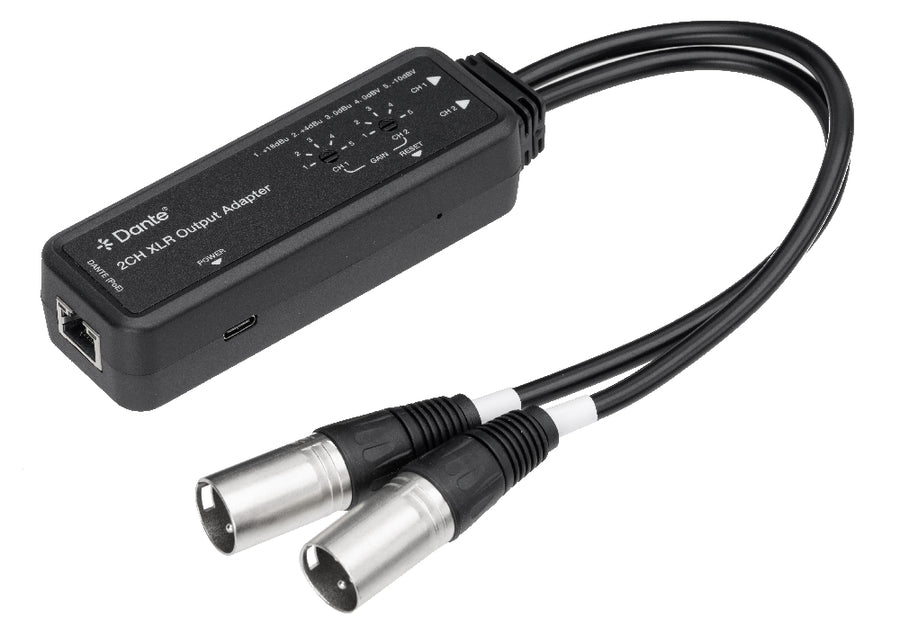

The KanexPro AUD-DTE-XLROUT converts Dante® 2CH digital audio into two-channel balanced or unbalanced XLR analog audio for professional AV and installed sound environments. Built on the Dante Ultimo 2×2 platform, it delivers network audio directly to amplifiers, mixers, speakers, and legacy analog gear via integrated 30cm XLR male pigtail leads.

Five selectable output gain levels (+18dBu to −10dBv) provide per-channel level matching at the destination. Powered by PoE (802.3af Class 0) or USB-C, it deploys anywhere without external power supplies.

Key features
  • Converts Dante® 2CH digital audio to two-channel balanced/unbalanced XLR analog output
  • Five output gain levels: +18dBu, +4dBu, 0dBu, 0dBv, −10dBv — per-channel adjustment
  • Dante® audio sampling up to 96kHz at 24-bit; AES67 compatible
  • Configurable Dante® device latency: 1, 2, or 5ms via Dante® Controller
  • Integrated 30cm XLR male pigtail leads (CH1 + CH2) — direct connection to amp/console
  • Dual power: PoE IEEE 802.3af Class 0 or USB-C 5V/500mA
  • High-performance audio: SNR >100dB, THD+N <0.01%, 20Hz–20kHz ±0.5dB
Input1× Dante® RJ45 (PoE); 1× USB-C (power only)
Output2× XLR OUT (balanced/unbalanced, 30cm male pigtail); max +18dBu balanced
Output Gain+18dBu / +4dBu / 0dBu / 0dBv / -10dBv (5-level, per channel)
Output Impedance600O balanced / 300O unbalanced
Latency1 / 2 / 5ms configurable
SNR / THD+N>100dB / <0.01% @ +4dBu, 1kHz
Frequency Response20Hz–20kHz ±0.5dB
TransmissionUp to 100m / 328ft (CAT6/6A/7)
PowerUSB-C 5V/500mA or PoE IEEE 802.3af Class 0 | 1.25W max
Dimensions115 × 40 × 28mm | 173g | Plastic, Black
Weight0.38 lbs
TemperatureOperating: 0°C–40°C | Storage: -20°C–60°C
Package Contents
1× Dante 2CH XLR Output Adapter
2× Hook & Loop Fasteners
1× User Manual
Panel drawing
System diagram
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required

UPC 813982024069
