AUD-DTE-DCODE
Your reference
Dante enabled 2-Channel Analog Audio Decoder with POE
Receive high-quality audio over a Dante network and output it as analog audio using a compact, PoE-powered decoder
Overview

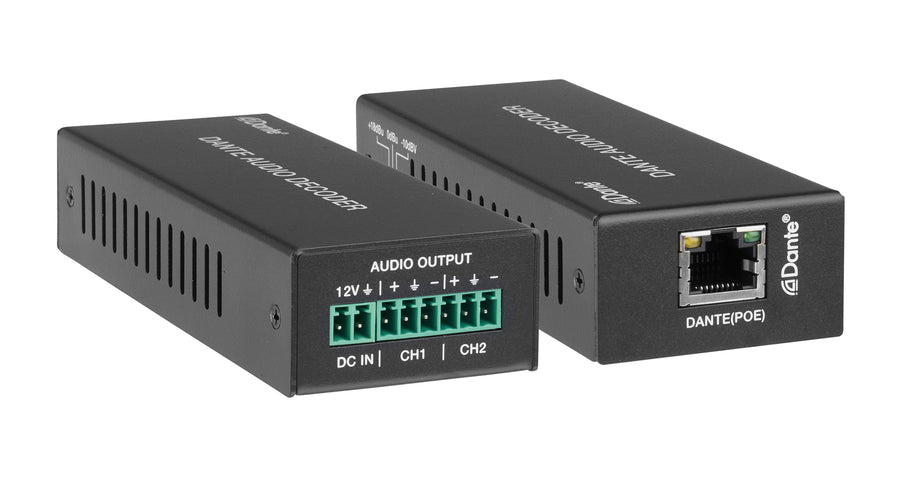

The KanexPro AUD-DTE-DCODE is a Dante®-enabled 2-channel analog audio decoder built on the Dante Ultimo solution. It receives Dante® digital audio from the network and outputs two-channel balanced or unbalanced analog audio via a 6-pin Phoenix connector, delivering clean line-level signal directly to amplifiers, powered speakers, and mixers in installed AV environments.
A 3-position GAIN switch (+18dBu, 0dBu default, −10dBv) matches output level to destination equipment. Powered by PoE or DC 12V via Phoenix connector, it installs at any point in the audio signal chain without additional power supplies.
Key features
- Converts Dante® 2CH digital audio to balanced/unbalanced analog output via 6-pin Phoenix connector
- 3-level output gain switch: +18dBu, 0dBu (default), −10dBv
- Dante® audio sampling: 44.1kHz, 48kHz, 96kHz @ 24-bit; AES67 RTP compatible
- Configurable Dante® device latency via Dante® Controller software
- Installation-grade Phoenix connector output — screw-terminal field wiring, no pigtails
- Dual power: PoE IEEE 802.3af Class 0 or DC 12V via 2-pin Phoenix connector
- Metal enclosure, compact 120×47×26mm form factor for concealed or rack-room install
| Input | 1× Dante® RJ45 (PoE), PCM 2CH 44.1/48/96kHz @ 24-bit |
| Output | 1× 6-pin Phoenix 3.81mm (CH1+/-/GND, CH2+/-/GND) balanced/unbalanced |
| Output Gain | +18dBu / 0dBu (default) / -10dBv (3-position GAIN switch) |
| Power Input | 1× 2-pin Phoenix 3.81mm (DC 12V) |
| Network | 100Mbps | Up to 100m (CAT6/CAT6A) |
| Control | Dante® Controller | AES67 RTP compatible |
| Power | PoE IEEE 802.3af Class 0 | DC 12V (2-pin Phoenix) | 1.32W max |
| Dimensions | 120 × 47 × 26mm | 186g | Metal, Black |
| Weight | 0.41 lbs |
| Temperature | Operating: 0°C–40°C | Storage: -20°C–60°C | 20–90% RH |
| Package Contents | |
|---|---|
| 1× Dante 2CH Analog Audio Decoder | |
| 1× 6-pin Phoenix Male Connector (3.81mm pitch) | |
| 1× 2-pin Phoenix Male Connector (3.81mm pitch) | |
| 1× User Manual | |
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required
UPC 813982023512
