AUD-DTE-ECODE
Your reference
Dante Powered 2-Channel Line In Audio Input Encoder with POE
Convert Balanced/Unbalanced Analog Audio to Dante® Digital Audio
Overview

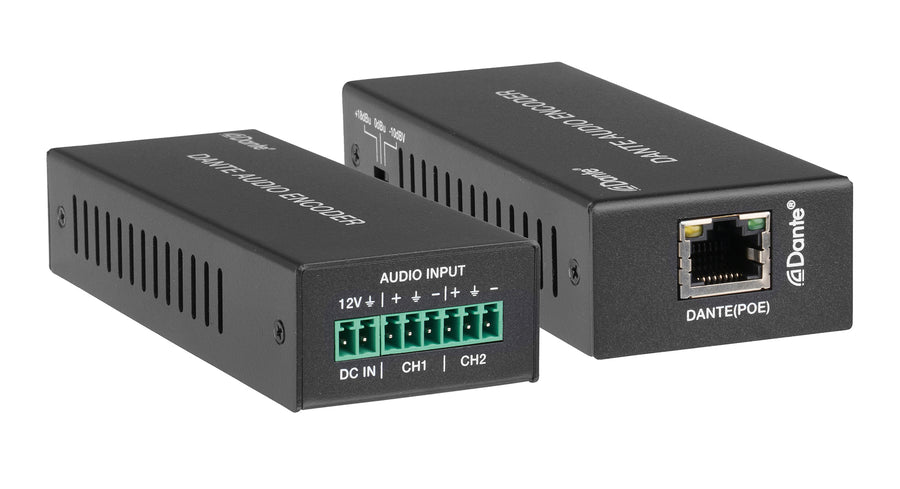

The KanexPro AUD-DTE-ECODE is a Dante®-enabled 2-channel analog audio encoder built on the Dante Ultimo solution. It accepts balanced or unbalanced analog audio via a 6-pin Phoenix connector and encodes it as Dante® 2CH digital audio for transmission over a standard Ethernet network.
A 3-level GAIN switch (+18dBu, 0dBu default, −10dBv) matches input sensitivity to the connected source. Powered by PoE or DC 12V, it is designed for permanent installation in commercial AV environments where screw-terminal Phoenix wiring is standard practice.
Key features
- Converts 2-channel balanced/unbalanced analog audio to Dante® 2CH digital audio via 6-pin Phoenix connector
- 3-level input gain adjustment: +18dBu, 0dBu (default), −10dBv via GAIN dip switch
- Dante® audio sampling: 44.1kHz, 48kHz, 96kHz @ 24-bit; AES67 RTP compatible
- Configurable Dante® device latency via Dante® Controller software
- Installation-grade Phoenix connector input — screw-terminal field wiring, no pigtails
- Dual power: PoE IEEE 802.3af Class 0 or DC 12V via 2-pin Phoenix connector
- Metal enclosure, compact 120×47×26mm — companion form factor to AUD-DTE-DCODE
| Input | 1× 6-pin Phoenix 3.81mm (CH1+/-/GND, CH2+/-/GND) balanced/unbalanced analog |
| Output | 1× Dante® RJ45 (PoE), PCM 2CH 44.1/48/96kHz @ 24-bit |
| Input Gain | +18dBu / 0dBu (default) / -10dBv (3-position GAIN switch) |
| Power Input | 1× 2-pin Phoenix 3.81mm (DC 12V) |
| Network | 100Mbps | Up to 100m (CAT6/CAT6A) |
| Control | Dante® Controller | AES67 RTP compatible |
| Power | PoE IEEE 802.3af Class 0 | DC 12V (2-pin Phoenix) | 1.2W max |
| Dimensions | 120 × 47 × 26mm | 186g | Metal, Black |
| Weight | 0.41 lbs |
| Temperature | Operating: 0°C–40°C | Storage: -20°C–60°C | 20–90% RH |
| Package Contents | |
|---|---|
| 1× Dante 2CH Analog Audio Encoder | |
| 1× 6-pin Phoenix Male Connector (3.81mm pitch) | |
| 1× 2-pin Phoenix Male Connector (3.81mm pitch) | |
| 1× User Manual | |
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required
UPC 813982023529
