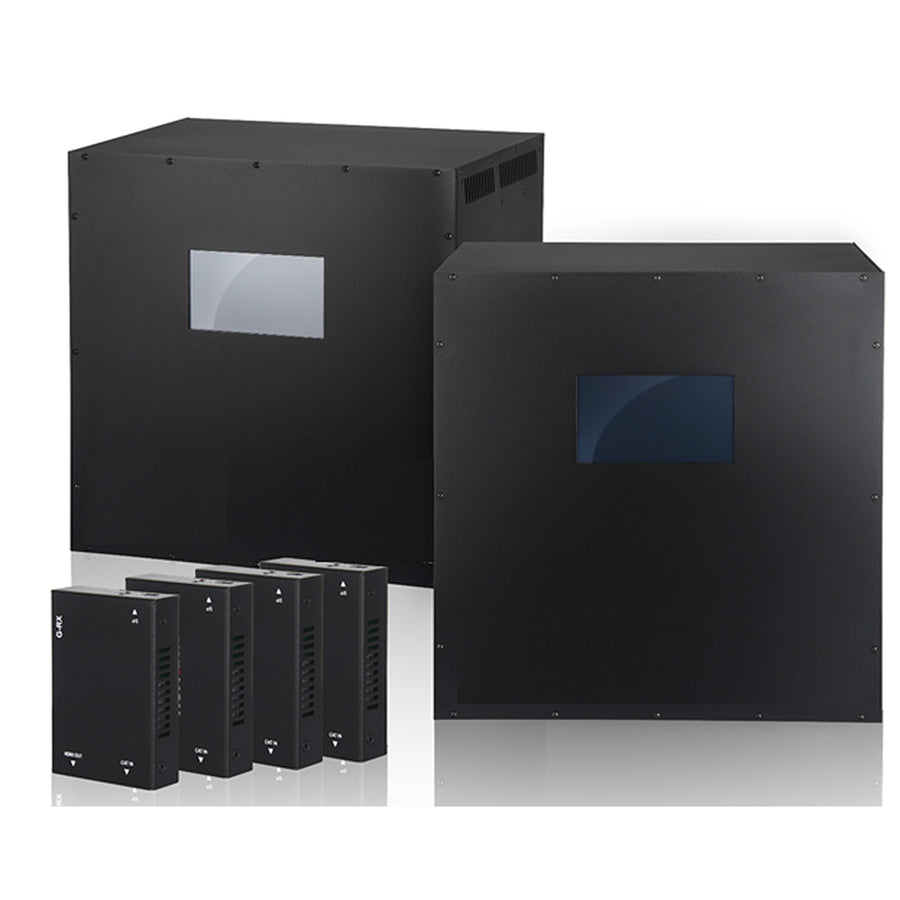

Flex Matrix Pro 128×128 4K60 Crosspoint Modular Matrix Switcher

The Largest KanexPro Matrix — 128 Crosspoints, 5 Formats, Dante/AES67, Redundant Everything

FLEX-PRO128X128
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

Stadiums. Broadcast centers. Convention halls. Government command posts. When the I/O count exceeds what any single competitor chassis can deliver, the FLEX-PRO128X128 handles it in one frame. Thirty-two input and thirty-two output card slots provide 128 fully routable crosspoints across HDMI, DisplayPort, HDBaseT, fiber optic, and 12G-SDI — all at 4K60 4:4:4, 18Gbps, with seamless switching.

Dante/AES67 is native. Power is redundant. Every card is hot-swappable. Every CAT endpoint is PoC-powered. TAA compliant for federal procurement.

Key features
  • Up to 128 inputs and 128 outputs via hot-swappable 4-port modular cards across five signal formats
  • Multi-format I/O: HDMI 2.0, DisplayPort, CAT/HDBaseT 3.0 (330ft), Fiber Optic (2km singlemode), and 12G-SDI
  • 4K/UHD 60Hz 4:4:4 at 18Gbps with HDCP 2.2, HDR, and seamless switching on every crosspoint
  • Native Dante/AES67 audio networking via built-in MCU card
  • Redundant hot-swappable power supplies for mission-critical reliability
  • PoC (Power over CAT) delivers power to connected transmitters and receivers from the main chassis
  • Video wall, quad view, independent output scaling, CEC display control, and EDID/HDCP management
  • TAA compliant for U.S. government procurement
Specification
Video
StandardHDMI 2.0, HDCP 2.2
HDRSupported
Max Data Rate18 Gbps (HDMI/DP) / 11.88 Gbps (12G-SDI)
Max Resolution4096×2160 @60Hz 4:4:4
SwitchingSeamless (glitch-free crosspoint)
Audio
Network AudioDante/AES67 (built-in via FLEX-MCU-Dante)
Pass-throughLPCM 8ch, Dolby TrueHD, DD+, DTS-HD MA, DTS:X
I/O Capacity
Input Slots32 slots × 4 ports = 128 inputs max
Output Slots32 slots × 4 ports = 128 outputs max
Card TypesHDMI, DisplayPort, CAT (HDBaseT 3.0), Fiber Optic, 12G-SDI
Extension
CAT330ft (100m) via CAT6A, PoC supported
FiberMultimode 984ft (300m) / Singlemode 6,562ft (2km)
12G-SDIPer SMPTE standards
Control
Interfaces7" Touch, TCP/IP, Web GUI, RS-232, Dante Controller
General
PowerRedundant hot-swappable PSUs, 100–240VAC
ComplianceTAA Compliant

Panel drawing
System diagram
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required

UPC 813982023727
