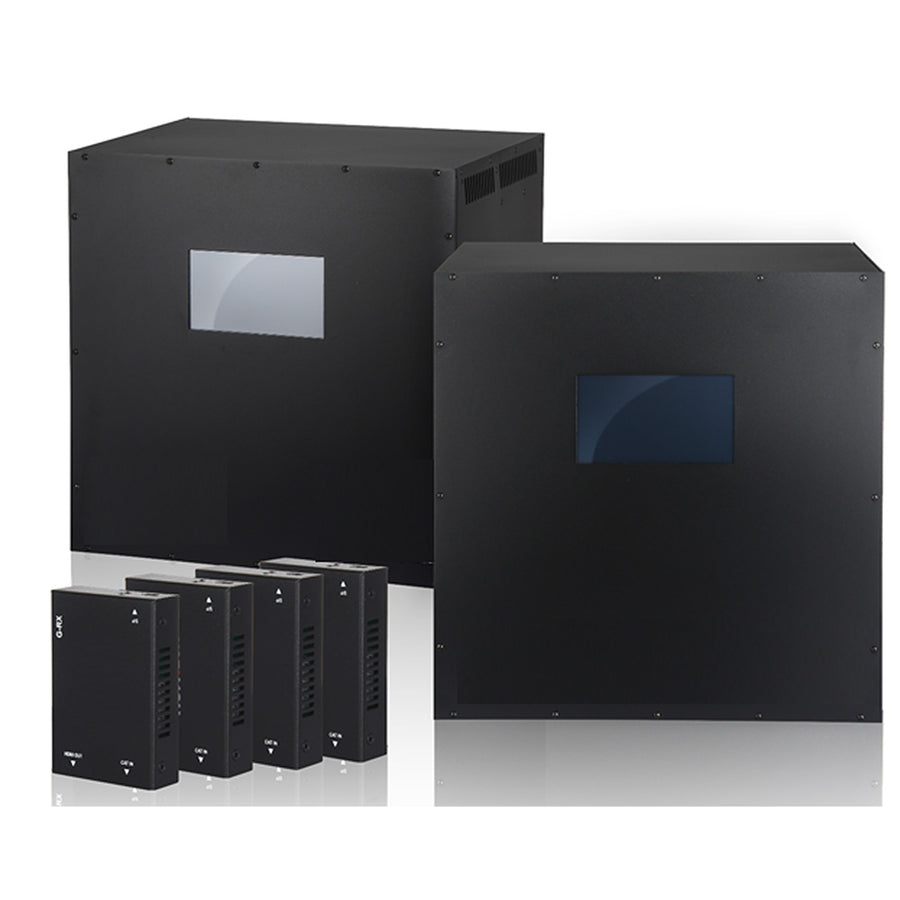

Flex Matrix Pro 32×32 4K60 Crosspoint Modular Matrix Switcher

Dante-Native Multi-Format Crosspoint for Broadcast, Corporate & Government AV

FLEX-PRO32X32
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

When a 16×16 is too small and a 64×64 is overkill, the FLEX-PRO32X32 hits the sweet spot for mid-scale multi-format routing. Eight input and eight output card slots accept any mix of HDMI, DisplayPort, HDBaseT, fiber optic, and 12G-SDI — delivering 32 fully routable crosspoints at 4K60 4:4:4 with 18Gbps bandwidth, HDCP 2.2, and seamless switching.

Dante/AES67 handles audio natively. Redundant PSUs keep the system live. PoC eliminates endpoint power supplies. TAA compliant for government projects. Same I/O cards as every Flex Pro chassis.

Key features
  • Up to 32 inputs and 32 outputs via hot-swappable 4-port modular cards across five signal formats
  • Multi-format I/O: HDMI 2.0, DisplayPort, CAT/HDBaseT 3.0 (330ft), Fiber Optic (2km singlemode), and 12G-SDI
  • 4K/UHD 60Hz 4:4:4 at 18Gbps with HDCP 2.2, HDR, and seamless switching
  • Native Dante/AES67 audio networking via built-in MCU card
  • Redundant hot-swappable power supplies
  • PoC powers CAT endpoints from chassis
  • Video wall, quad view, independent scaling, CEC, EDID/HDCP management
  • TAA compliant
Specification
Video
StandardHDMI 2.0, HDCP 2.2
Max Resolution4096×2160 @60Hz 4:4:4
I/O
Input Slots8 slots × 4 ports = 32 inputs
Output Slots8 slots × 4 ports = 32 outputs
Card TypesHDMI, DP, CAT, Fiber, 12G-SDI
Audio
NetworkDante/AES67
General
PowerRedundant hot-swappable PSUs
ComplianceTAA

Panel drawing
System diagram
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required

UPC 813982023710
