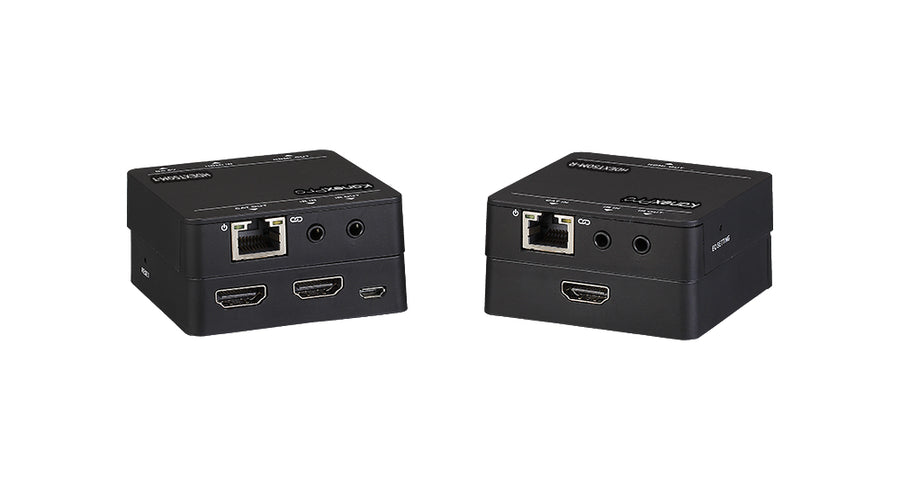

HDMI Extender over CAT5/6 - 50M (1080p)

1080p@60Hz | HDMI Loop-Out | Bi-directional IR | HDCP 1.4 | FCC/CE/UL | Plug and Play

HDEXT50M
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

The KanexPro HDEXT50M extends full HD 1080p@60Hz HDMI over cost-effective Cat5/5e cable up to 50M (164 ft.) — ideal for home theaters, small offices, classrooms, and houses of worship. Plug and play with zero setup required.

The TX unit includes a local HDMI loop-out for a confidence monitor. A built-in EQ adjustment on the receiver compensates for signal equalization over longer runs. Bi-directional IR control allows source operation from the display location. FCC, CE, and UL certified. Micro USB power supplies included.

Key features
  • Extends HDMI 1080p@60Hz over Cat5/5e up to 50M (164 ft.)
  • Local HDMI loop-out on TX for confidence monitoring
  • Built-in EDID management for reliable HDMI handshake
  • Built-in EQ adjustment on receiver for signal equalization
  • Bi-directional wideband IR control — TX/RX blasters included
  • HDCP 1.4 compliant
  • FCC, CE, and UL certified
  • Plug and Play — no setup or configuration required
  • Includes IR kits and Micro USB power supplies
SpecificationValue
Max Resolution1080p@60Hz (1920x1080)
HDCPHDCP 1.4
HDMI Loop-OutYes — TX unit
CableCat5 / Cat5e
Max Distance50M (164 ft.)
IRBi-directional wideband (kits included)
EDIDBuilt-in management
EQBuilt-in EQ button on receiver
Power5V DC 1A via Micro USB (included)
Dimensions66 x 66 x 13mm (TX and RX)
WeightTX 36g | RX 38g
CertificationsFCC, CE, UL
Operating Temp-10 to 55 degrees C
Panel drawing
System diagram
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required

UPC 814556013427
