FLEX-MF8X10
Your reference

Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall

Scalable HDMI-over-CAT Switcher (8x10 to 24x60) with Per-Output Resolution Control, Quad View & CEC Display Management

FLEX-MF8X10
Tier pricing and stock
Price, inventory and ordering are open to approved dealers. Specifications, drawings and documents stay open to everyone.
Apply Sign in
Overview

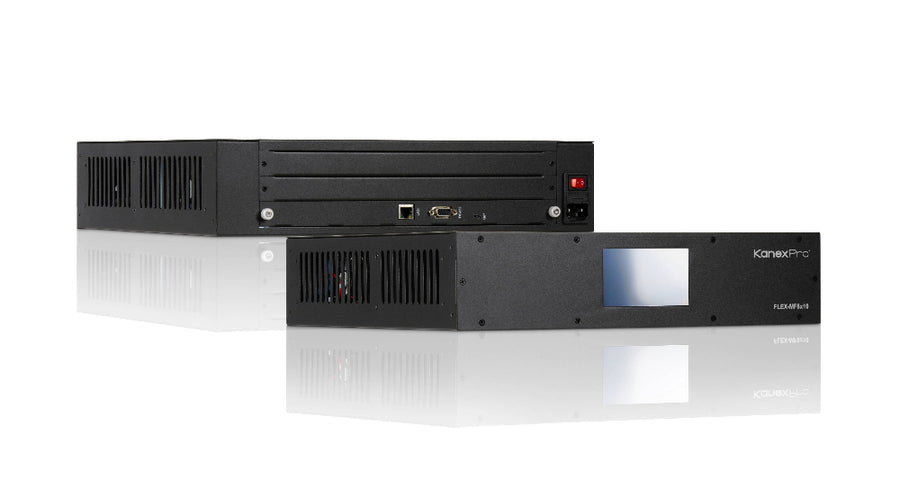

Eliminate the tradeoff between scalability and simplicity in multi-zone video distribution. The KanexPro FLEX-MF8X10 is a modular 4K 60Hz matrix chassis that routes up to 8 HDMI sources to 10 CAT-extended displays with independent per-output scaling.

Built on a modular card architecture that scales from 8x10 to 24x60, the matrix supports HDMI 2.0 at 18Gbps with HDCP 2.2, HDR, and full 4K60 4:4:4 color. Integrated video wall (up to 4x3), quad view, EDID management, and CEC display control.

Key features
  • Routes up to 8 HDMI 2.0 sources to 10 CAT-extended displays at 4K60 4:4:4 with 18Gbps and HDCP 2.2/1.x
  • Independent per-output scaling from 480p to 4K60
  • Video wall up to 4x3 with 30 groups and bezel compensation
  • Quad view with 3 layouts for confidence monitoring
  • Modular card architecture scales from 8x10 to 24x60
  • HDR with Dolby TrueHD, DD+, DTS-HD Master, DTS:X, LPCM 7.1
  • CEC display control through CAT receivers
  • Front-panel touchscreen, RS-232, TCP/IP, Web GUI with 8 presets
SpecificationValue
Technical
StandardHDMI 2.0, HDCP 1.x/2.2
ResolutionUp to 3840x2160 60Hz 4:4:4
Data Rate18 Gbps
Color Depth8/10/12 bits
HDRSupported
ScalingAuto, 480p-4K60, multiple fixed resolutions
Video WallUp to 4x3, 30 groups, bezel comp
Quad View3 layouts
Audio
FormatsLPCM 7.1, DD, TrueHD, DD+, DTS-ES, DTS-HD MA, DTS:X
Connection
Input8x HDMI Type A per card
Output12x CAT RJ45 per card
ControlRS-232, TCP/IP, Web GUI
ReceiverFLEX-CATRX (sold separately)
Mechanical
Dimensions445x355x450mm (17.5x14x17.7in)
Weight21 kg (46 lbs)
Power100-240VAC, 540W
Environment32-104F, 10-90% RH
Package Contents
1xFLEX-MF8X10 Chassis
-Cards sold separately
Panel drawing
System diagram
ManualInstallation & operation
Spec sheetFull specification
Sales sheetFor your bid
MarketingDealer sign-in required

UPC 813982023147
