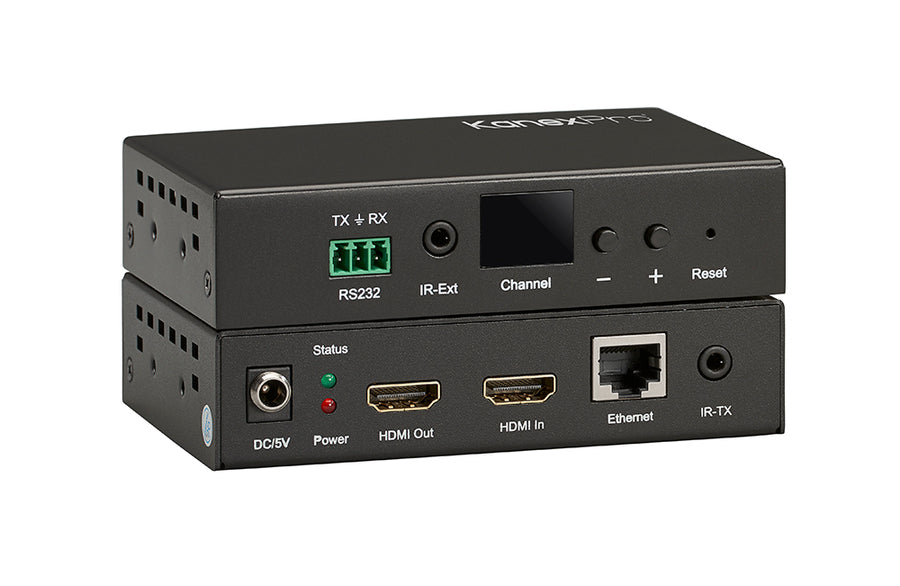

NetworkAV™ H.264 HDMI Transmitter over IP with PoE & RS-232
Extend and Distribute 1080p HDMI over Any IP Network up to 394 ft with Dual PoE Power
The EXT-AVIPH264TX eliminates dedicated AV cabling for multi-display installations by encoding and transmitting full HD 1080p HDMI signals over a standard Ethernet network up to 394 ft (120m) using H.264 compression over TCP/IP. A single CAT5e/6 run carries video, audio, IR control, and RS-232 — with PoE eliminating the need for a local power outlet at the transmitter.
Designed for integrators deploying digital signage, corporate AV, and multi-zone display systems, the EXT-AVIPH264TX supports point-to-point, one-to-many, and many-to-many topologies over a managed Gigabit switch. Group ID selection via remote controller or web browser allows source-switching without recabling, and the HDMI loopthrough output keeps a local display active at the source.
- Encodes and transmits pure 1080p HDMI signals up to 394 ft (120m) over a single CAT5e/6 cable
- H.264 compression over TCP/IP — 15 Mbps streaming bit rate, LPCM audio at 48kHz
- Dual power input: 802.3af PoE compliant + DC 5V (no power adapter required when using PoE switch)
- Supports point-to-point, one-to-many, and many-to-many configurations — up to 64 TX / 255 RX nodes
- Group ID source switching (00–63) via IR remote controller or web browser
- Bidirectional RS-232 pass-through up to 115,200 baud — 8 baud rate presets
- Wideband IR pass-through 38–56kHz for remote source control at the display location
- HDMI loopthrough output for simultaneous local display at the transmitter
| Specification | Value |
|---|---|
| Video | |
| Compression | H.264 over TCP/IP |
| Supported Formats | 480i/480p/576i/576p/720p/1080i/1080p@60Hz |
| Streaming Bit Rate | 15 Mbps |
| HDCP | Compliant |
| Audio | |
| Format | LPCM |
| Sampling Rate | 48kHz |
| Control | |
| IR Frequency | 38–56kHz |
| RS-232 Baud Rate | Default 2400 bps; 8 options (2400–115200) |
| Network | |
| Default IP (TX) | 192.168.1.11 |
| Default IP (RX) | 192.168.1.12 |
| Group ID Range | 00–63 |
| Switch Requirements | IGMP + DHCP support recommended |
| Max TX Nodes | 64 |
| Max RX Nodes | 255 |
| Max Total Nodes | 256 (TX + RX + Switch) |
| Connectors — Transmitter | |
| Input | 1× HDMI Type-A female |
| Output | 1× RJ45, 1× HDMI loopthrough (Type-A female) |
| Control | 1× Phoenix RS-232, 1× IR-TX (38–56kHz), 1× IR-Ext (38kHz) |
| Power | |
| Supply | DC 5V/1A or 802.3af PoE (36–57V) |
| Consumption | 3W max |
| Environmental | |
| Operating Temperature | -5 to +35°C (+23 to +95°F) |
| Operating Humidity | 5–90% RH, non-condensing |
| Physical | |
| Dimensions (L×W×H) | 4.69″ × 3.13″ × 1.10″ (119 × 79.5 × 28mm) |
| Net Weight | 0.62 lbs (0.28kg) |
| Certifications | |
| Regulatory | FCC Class B (Part 15) |
| Package Contents | |
| 1× | Transmitter |
| 1× | Receiver |
| 1× | IR-TX cable |
| 1× | IR-RX cable |
| 2× | IR Ext cable |
| 2× | Power adapter 5V/1A |
| 2× | Phoenix RS-232 plug |
| 2× | Remote controller |
| 4× | Detachable mounting ears |
| 8× | Screws |
| 1× | User manual |
UPC 813982021198
