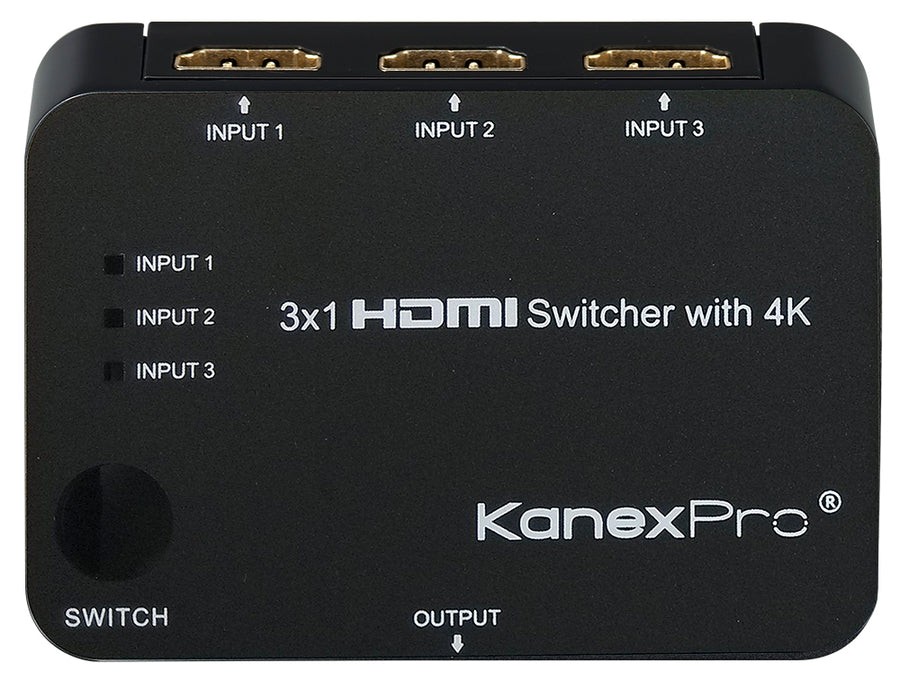

3x1 HDMI Switcher with 4K Support

Perfect for Home Theater which requires multiple switching

SW-HD3X14K
Discontinued. KanexPro no longer makes this part; remaining stock is sold while it lasts.
Clearance In stock3x1 HDMI Switcher with 4K Support – KanexPro SW-HD3X14K
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

The KanexPro 3x1 HDMI Switcher is a compact three input to one output switch providing 4K ultra-HD resolutions. It is a simple switcher designed to connect three HDMI sources such as Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home theater and pro-sumers looking to connect HDMI based devices to an Ultra-HDTV.

Note: This product uses ultra-low power to connect therefore no need to connect to a power supply. It does include a USB to barrel cable which allows you to power an external 5V DC device by using an available computer USB port.

Key features
  • Rapidly switch between 3 inputs to one output
  • Supports resolutions up to 4K@30Hz
  • Full HD 1080p & 1920x1200
  • HDCP and EDID Compliant
  • Supports all 3D formats
  • Ultra-low power consumption, does not require a power supply
  • Switch using a manual button or included IR remote
  • Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats & Lip Sync)
  • Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch
  • Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Front-panel LED’s for input/ output signal presence
  • Ultra compact design
  • IR / Remote control included

Signal Input/Outputs:

  • Input DDC Signal: 5 Volts p-p (TTL)
  • Input & Output Signal: High Speed HDMI Spec 1.4a

Operating Frequency: Vertical Frequency Range: 50/60Hz

Video Amplifier Bandwidth: 2.95 Gbps per Channel

Resolutions:

  • (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K@30Hz

IR specs: Input Ports: 5 HDMI Female ports, IR Receive port

Power Requirements:

  • Power Consumption: 0.2W
  • (Optional)External Power Supply: 5V DC @ 2A

Regulatory Approvals:

  • Converter Unit: FCC, Ce, UL
  • Power Supply: UL, Ce, FCC

Environment Operating Temperature:

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Dimensions: W 3.0" x D 2.0" x H1.70"

Weight: 1.80 ounces

Warranty: Limited 1-Year Parts & Labor

Package Contents:

  • HDMI 1.4 3x1 Switcher
  • Remote control IR Receive Extend cable
  • Operation Manual
