4K60 HDMI-over-Fiber Extender with Full Control over One Fiber (10km)
Add IR, RS-232 & Audio De-embed to Fiber KVM — 4K60 4:4:4 HDCP 2.2 Video plus Keyboard/Mouse and Serial without Copper Ground-Loop or EMI Risk

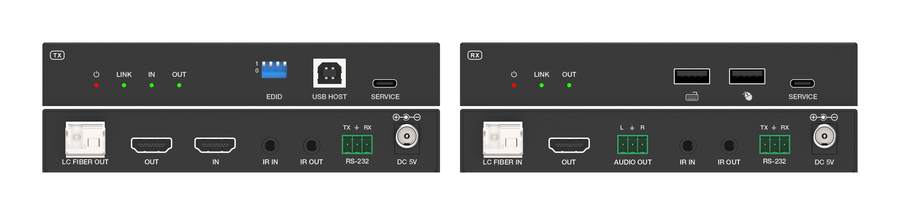

Carries a full 4K60 4:4:4 HDMI signal — plus keyboard, mouse, IR and serial control — up to 10km on a single single-mode fiber pair. The kit pairs a transmitter and receiver in compact black metal enclosures, each drawing under 5W from a locking 5V/2A supply and light enough to mount wherever the run ends. It is the right choice for campus, broadcast and command-centre runs where distance and galvanic isolation matter more than the 100m ceiling and copper ground-loop risk of HDBaseT.

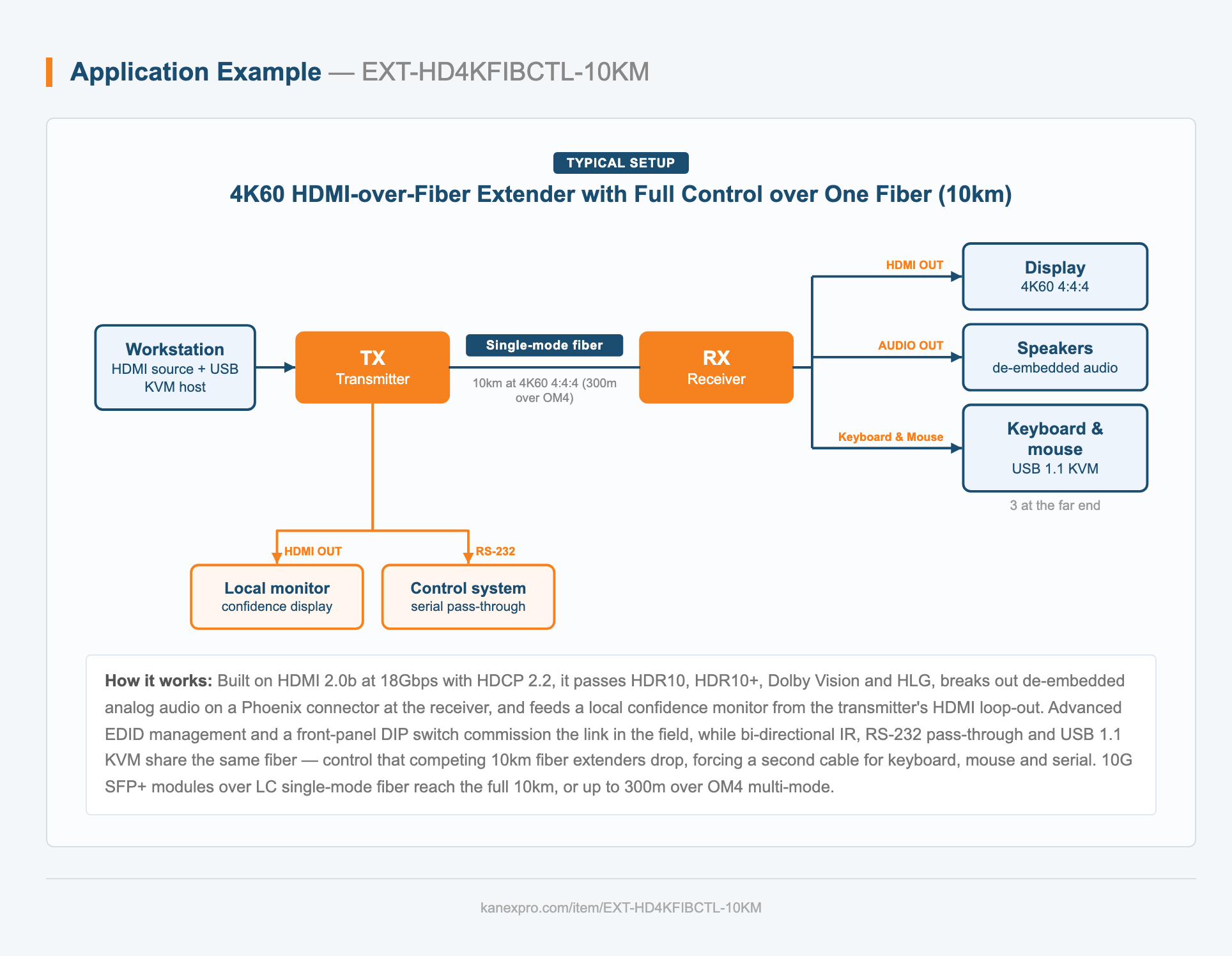

Built on HDMI 2.0b at 18Gbps with HDCP 2.2, it passes HDR10, HDR10+, Dolby Vision and HLG, breaks out de-embedded analog audio on a Phoenix connector at the receiver, and feeds a local confidence monitor from the transmitter's HDMI loop-out. Advanced EDID management and a front-panel DIP switch commission the link in the field, while bi-directional IR, RS-232 pass-through and USB 1.1 KVM share the same fiber — control that competing 10km fiber extenders drop, forcing a second cable for keyboard, mouse and serial. 10G SFP+ modules over LC single-mode fiber reach the full 10km, or up to 300m over OM4 multi-mode.
- Compliant with HDCP 2.2
- Video bandwidth up to 18Gbps
- Video resolution up to 4K2K@50/60Hz 4:4:4, as specified in HDMI 2.0b
- Transmission distance up to 10km over single-mode fiber; up to 300m over OM4 multi-mode fiber via the SFP modules
- Supports 3D video format
- HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- Audio formats: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio and DSD
- HDMI loop output on the transmitter and audio de-embedding on the receiver
- USB 1.1 keyboard/mouse transmission
- Bi-directional IR and RS-232 pass-through
- Advanced EDID management
- Compact design for easy and flexible installation
| Video | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution (input & output) | 3840×2160p60/50, 4096×2160p60/50, 3840×2160p30/25, 1920×1200p60RB, 1920×1080p60/50, 1360×768p60, 1280×800p60, 1280×720p60/50, 1024×768p60 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| 3D | Supported |
| Audio | |
| Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission | |
| Distance | Up to 10km over single-mode fiber; up to 300m over OM4 multi-mode fiber |
| Fiber Optic | 10G SFP+ module, LC single-mode |
| EDID | Advanced EDID management |
| IR | |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20–60kHz |

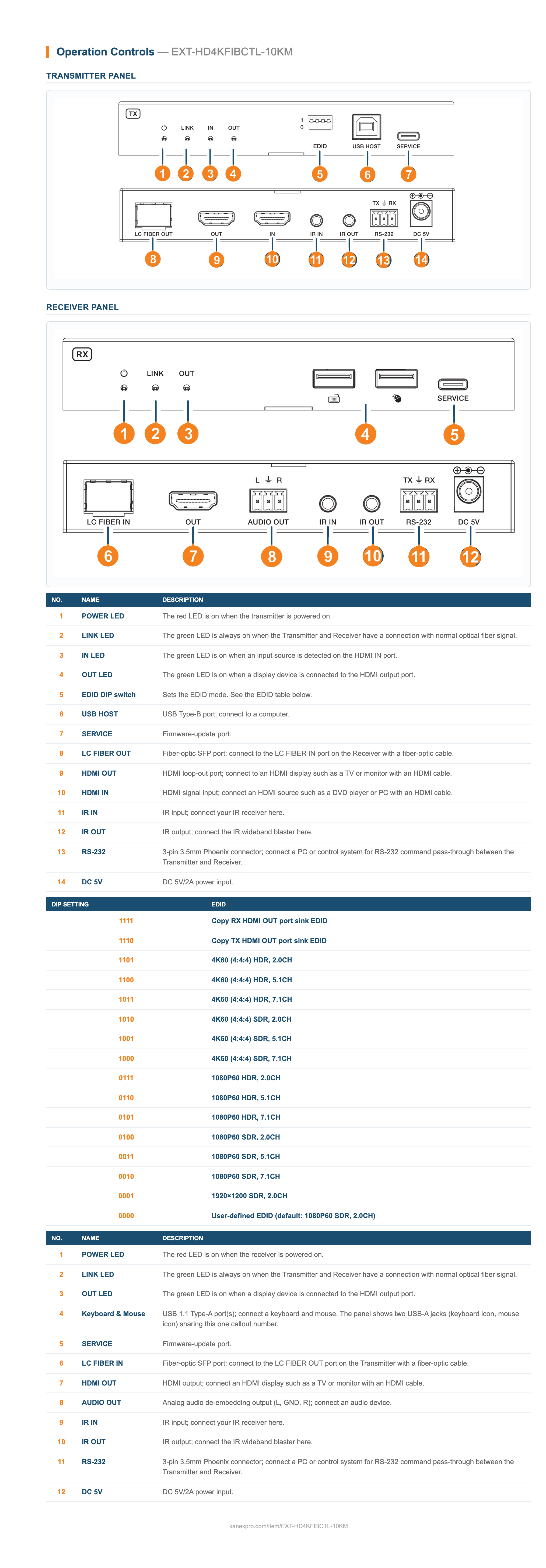

| Transmitter Connections | |
| Input | 1× HDMI IN [Type A, 19-pin female]; 1× IR IN [3.5mm jack] |
| Output | 1× HDMI OUT [Type A, 19-pin female]; 1× IR OUT [3.5mm jack]; 1× LC FIBER OUT [LC female] |
| Control | 1× USB HOST [USB-B, 4-pin female]; 1× RS-232 [3-pin 3.5mm Phoenix]; 1× SERVICE [USB-C update port] |
| Receiver Connections | |
| Input | 1× LC FIBER IN [LC female]; 1× IR IN [3.5mm jack] |
| Output | 1× HDMI OUT [Type A, 19-pin female]; 1× IR OUT [3.5mm jack]; 1× AUDIO OUT [3-pin 3.5mm Phoenix] |
| Control | 1× RS-232 [3-pin 3.5mm Phoenix]; 1× SERVICE [USB-C update port]; 2× USB [USB-A, keyboard & mouse] |
| Power | |
| Power Supply | Input AC 100–240V, 50/60Hz; Output DC 5V/2A |
| Power Consumption | Transmitter 5W max; Receiver 5W max |
| ESD Protection | IEC 61000-4-2: ±8kV air discharge, ±4kV contact discharge |
| Environmental | |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Storage Temperature | -4°F – 140°F (-20°C – 60°C) |
| Operating Humidity | 20% – 80% RH, non-condensing |
| Storage Humidity | 10% – 90% RH, non-condensing |
| Physical | |
| Housing | Metal enclosure, black |
| Dimensions (per unit) | 5.67" × 3.07" × 0.91" (144 × 78 × 23mm) |
| Weight | Transmitter 0.74 lbs (337g); Receiver 0.73 lbs (330g) |
| Package Contents | |
| 1× 18Gbps HDMI over Fiber Extender (Transmitter) | |
| 1× 18Gbps HDMI over Fiber Extender (Receiver) | |
| 2× 5V/2A Multinational Locking Power Supply | |
| 1× USB Cable (Type A to Type B, 1.5m) | |
| 1× IR Blaster Cable (1.5m) | |
| 1× IR Wideband Receiver Cable (1.5m) | |
| 3× 3-pin 3.5mm Phoenix Connector (Male) | |
| 4× Mounting Ear | |
| 8× Machine Screw (KM3×4) | |
