Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall

Scalable HDMI-over-CAT Switcher (8x10 to 24x60) with Per-Output Resolution Control, Quad View & CEC Display Management

FLEX-MF8X10UPC 813982023147

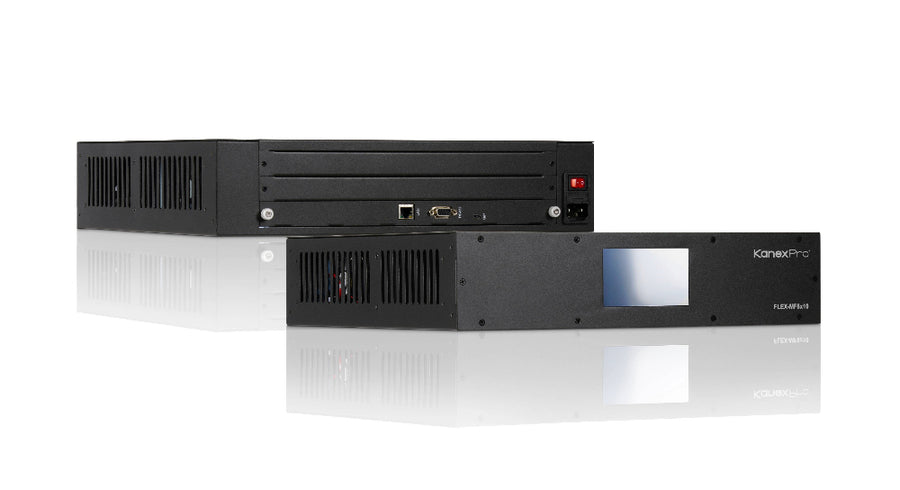

Promo In stockModular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall – KanexPro FLEX-MF8X10
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

Eliminate the tradeoff between scalability and simplicity in multi-zone video distribution. The KanexPro FLEX-MF8X10 is a modular 4K 60Hz matrix chassis that routes up to 8 HDMI sources to 10 CAT-extended displays with independent per-output scaling.

Built on a modular card architecture that scales from 8x10 to 24x60, the matrix supports HDMI 2.0 at 18Gbps with HDCP 2.2, HDR, and full 4K60 4:4:4 color. Integrated video wall (up to 4x3), quad view, EDID management, and CEC display control.

Key features
  • Routes up to 8 HDMI 2.0 sources to 10 CAT-extended displays at 4K60 4:4:4 with 18Gbps and HDCP 2.2/1.x
  • Independent per-output scaling from 480p to 4K60
  • Video wall up to 4x3 with 30 groups and bezel compensation
  • Quad view with 3 layouts for confidence monitoring
  • Modular card architecture scales from 8x10 to 24x60
  • HDR with Dolby TrueHD, DD+, DTS-HD Master, DTS:X, LPCM 7.1
  • CEC display control through CAT receivers
  • Front-panel touchscreen, RS-232, TCP/IP, Web GUI with 8 presets
SpecificationValue
Technical
StandardHDMI 2.0, HDCP 1.x/2.2
ResolutionUp to 3840x2160 60Hz 4:4:4
Data Rate18 Gbps
Color Depth8/10/12 bits
HDRSupported
ScalingAuto, 480p-4K60, multiple fixed resolutions
Video WallUp to 4x3, 30 groups, bezel comp
Quad View3 layouts
Audio
FormatsLPCM 7.1, DD, TrueHD, DD+, DTS-ES, DTS-HD MA, DTS:X
Connection
Input8x HDMI Type A per card
Output12x CAT RJ45 per card
ControlRS-232, TCP/IP, Web GUI
ReceiverFLEX-CATRX (sold separately)
Mechanical
Dimensions445x355x450mm (17.5x14x17.7in)
Weight21 kg (46 lbs)
Power100-240VAC, 540W
Environment32-104F, 10-90% RH
Package Contents
1xFLEX-MF8X10 Chassis
-Cards sold separately
Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall panel drawing
Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall system diagram
Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
Does each output scale independently?
Yes, each output has its own scaler.
What is the max video wall?
Up to 4x3 per group, 30 groups.
Can I expand later?
Upgrade to larger FLEX chassis and reuse cards.
Works with AV-over-IP?
The FLEX is a traditional matrix. For 8-20 zones it delivers lower latency and cost than IP.
What receiver needed?
FLEX-CATRX, PoC-powered from matrix.
What cabling?
CAT5e/6 for outputs, HDMI for inputs, RS-232/RJ45 for control.
No video on output?
Check CAT cable, EDID settings, and output stream enable.
Video wall incorrect?
Verify wall group, output mapping, and starting port.
Why not a fixed matrix?
Modular = expandable, plus built-in scaling/video wall/quad view.
When to choose Flex Pro?
For Dante audio, seamless switching, or larger than 24x60.
