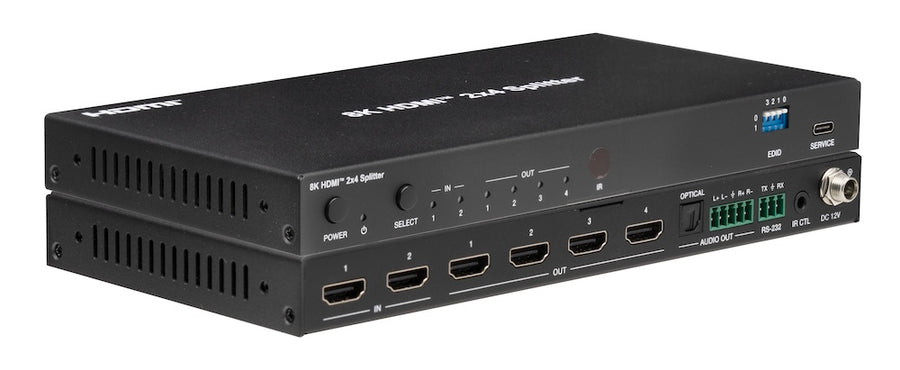

48Gbps 8K 2-In 4-Out HDMI Switching Splitter with Independent Downscaling & Audio De-embedding

Select 1 of 2 HDMI Sources and Send It to 4 Screens, with Auto-Scaling Video & Balanced/Digital Audio Breakout

SP-HDMI2X4-8KUPC 813982024113
In stock48Gbps 8K 2-In 4-Out HDMI Switching Splitter with Independent Downscaling & Audio De-embedding – KanexPro SP-HDMI2X4-8K
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

Select either of two HDMI 2.1 sources and send it to four displays at up to 8K@60Hz, with independent downscaling and audio de-embedding on every output. The KanexPro SP-HDMI2X4-8K is a 48Gbps 2-input, 4-output HDMI switching splitter: a 2×1 switcher and a 1×4 splitter in one box, eliminating the need for a separate switcher, splitter, downscaler, or audio extractor in the rack. All four outputs show the selected source at the same time; to send a different source to each display, use a true matrix switcher.

Compliant with HDMI 2.1 and HDCP 2.3, the switching splitter supports 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, and 4K@120Hz 4:4:4 12-bit with HDR10, HDR10+, Dolby Vision, HLG, and ALLM/VRR pass-through. Each output independently downscales 8K to 4K or 2K and converts HDR to SDR for mixed-resolution display environments. Audio de-embedding delivers digital optical (up to 5.1CH) and balanced/unbalanced analog stereo with adjustable gain. A built-in HDMI signal generator aids diagnostics. Control via front panel, IR remote, RS-232, or API commands.

Key features
  • Selects 1 of 2 HDMI 2.1 sources and sends it to all 4 displays at once, at up to 8K@60Hz 4:2:0 12-bit with 48Gbps bandwidth — auto or manual input switching
  • HDCP 2.3 compliant with HDMI 2.1 — supports protected content across all input and output channels
  • HDR10, HDR10+, Dolby Vision, HLG pass-through with ALLM and VRR for low-latency gaming and cinematic playback
  • Independent 8K→4K/2K downscaling on each output — feed mixed-resolution displays from a single source without manual reconfiguration
  • Per-output HDR→SDR conversion preserves contrast and detail on non-HDR legacy displays
  • Audio de-embedding via digital optical (up to 5.1CH Dolby/DTS) and balanced/unbalanced analog stereo (L/R) with adjustable gain control
  • Built-in HDMI signal generator with 15 resolutions and 13 test patterns for on-site diagnostics and cable verification
  • Control via front panel buttons, IR remote, RS-232, and API commands — advanced EDID management with 16 presets, 2 user-defined, and pass-through mode
HDMI ComplianceHDMI 2.1
HDCP ComplianceHDCP 2.3
Video Bandwidth48 Gbps
Video ResolutionUp to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit
Color Depth8/10/12-bit
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR FormatsHDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio (Pass-through)LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Audio De-embedding (Optical)Up to LPCM/Dolby/DTS 5.1CH
Audio De-embedding (L/R)LPCM 2CH
Analog Output Impedance300 Ohm
Analog Output Level (Max)8.2 dBu (2Vrms) balanced • 2.2 dBu (1Vrms) unbalanced
Frequency Response20 Hz – 20 KHz (+0.5 dB, −1 dB)
Audio Output Sync Delay0 to 2.2 ms
Audio S/N Ratio99 dB @ 2Vrms, 1 kHz, A-weighted
Audio THD+N<0.2% @ 0 dBV, 1 kHz
IR Level12Vp-p
IR FrequencyWideband 20K – 60 KHz
Transmission Distance3 m / 9.8 ft over HDMI cable
ESD ProtectionIEC 61000-4-2: ±8 kV (air-gap) & ±4 kV (contact)
Input2× HDMI Type A [19-pin female]
Output (Video)4× HDMI Type A [19-pin female]
Output (Audio)1× Optical [S/PDIF] • 1× L/R [5pin-3.5mm Phoenix connector]
Control1× RS-232 [3pin-3.5mm Phoenix] • 1× IR CTL [3.5mm stereo mini-jack] • 1× SERVICE [USB Type C]
HousingMetal Enclosure, Black
Dimensions220 mm (W) × 110 mm (D) × 21.5 mm (H)
Weight620 g
Power SupplyDC 12V/1A
Power Consumption6.24 W (Max)
Operating Temperature0°C – 40°C / 32°F – 104°F
Storage Temperature−20°C – 60°C / −4°F – 140°F
Operating Humidity20% – 80% RH, non-condensing
Storage Humidity10% – 90% RH, non-condensing
48Gbps 8K 2-In 4-Out HDMI Switching Splitter with Independent Downscaling & Audio De-embedding panel drawing
48Gbps 8K 2-In 4-Out HDMI Switching Splitter with Independent Downscaling & Audio De-embedding system diagram
48Gbps 8K 2-In 4-Out HDMI Switching Splitter with Independent Downscaling & Audio De-embedding applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
Can I turn off or mute one HDMI output while the other outputs keep showing the source?
No. The SP-HDMI2X4-8K selects one of its two inputs and sends it to all four outputs at the same time. No single output can be disabled or muted, whether from the front panel, IR remote or RS-232/API. To route sources to outputs independently, use an HDMI matrix switcher.
Can the SP-HDMI2X4-8K send a source to one output only, or turn off a single output?
No. The SP-HDMI2X4-8K is a switching splitter: it selects one of its two inputs and sends that signal to all four outputs at once. No output can be muted or turned off on its own from the front panel, IR remote or RS-232/API. For per-output routing, use a matrix switcher.
How do I access RS-232 or API control?
Connect the RS-232 port (3-pin 3.5mm Phoenix) or the SERVICE USB Type-C port to a PC and open a serial terminal to send API commands for input selection, EDID, and audio control.
What is the maximum resolution, chroma, and refresh rate the SP-HDMI2X4-8K supports, and what HDMI/HDCP version does it use?
The splitter is HDMI 2.1 and HDCP 2.3 compliant, supporting up to 8K@60Hz at 4:2:0 12-bit, 8K@30Hz at 4:4:4 12-bit, and 4K@120Hz at 4:4:4 12-bit, at up to 48Gbps video bandwidth.
What HDR formats and gaming features pass through the splitter?
It passes HDR10, HDR10+, Dolby Vision, and HLG, along with ALLM and VRR for low-latency gaming and cinematic playback.
What control methods are supported for integration with a control system?
The splitter is controlled from front panel buttons, the included IR remote, RS-232 (3-pin 3.5mm Phoenix connector), or API commands over the same RS-232 connection.
How is EDID configured on the SP-HDMI2X4-8K?
A front panel 4-position EDID DIP switch selects among 16 EDID presets via binary combinations; advanced EDID management also supports 2 user-defined slots and a pass-through mode.
What is included in the box?
The package includes the 48Gbps 2-in 4-out HDMI switching splitter, a 12V/1A multinational locking power supply, an IR remote, a 1.5m IR wideband receiver, a 3-pin 3.5mm Phoenix connector, a 5-pin 3.5mm Phoenix connector, two mounting ears, four KM3x6 machine screws, and a user manual.
What are the physical dimensions and weight for rack or shelf placement?
The unit measures 8.66 in (W) x 4.33 in (D) x 0.85 in (H) (220mm x 110mm x 21.5mm) and weighs 1.37 lbs (620g), with included mounting ears for rack or surface installation.
No video appears on one or more displays. What should I check?
Confirm HDMI Ultra High Speed cables are used and do not exceed 3m for 8K/4K120 signals. Try setting the EDID DIP switch to match the display's native resolution, and if displays have mixed resolutions, use set output x downscale 2 to force 1080p on the affected outputs.
