2×1 HDMI & Mini DisplayPort HDBaseT Wall Plate Extender Kit — 50 Meters
Extend 4K/60 HDMI or mDP Sources up to 164 ft over a Single CAT5e/6 Cable with Auto-Switching & POE
The KanexPro WP-EXTHDMDP50 is a 2×1 HDMI and Mini DisplayPort HDBaseT wall plate extender kit for environments that need to accommodate both modern HDMI sources and legacy Mini DisplayPort devices — including older MacBooks, Surface Pro tablets, and workstations — from a single clean wall plate. The single-gang Decora-style transmitter routes either input over a single CAT5e/6 cable, extending 4K@24Hz up to 50 meters and 4K@60Hz 4:4:4 up to 35 meters.

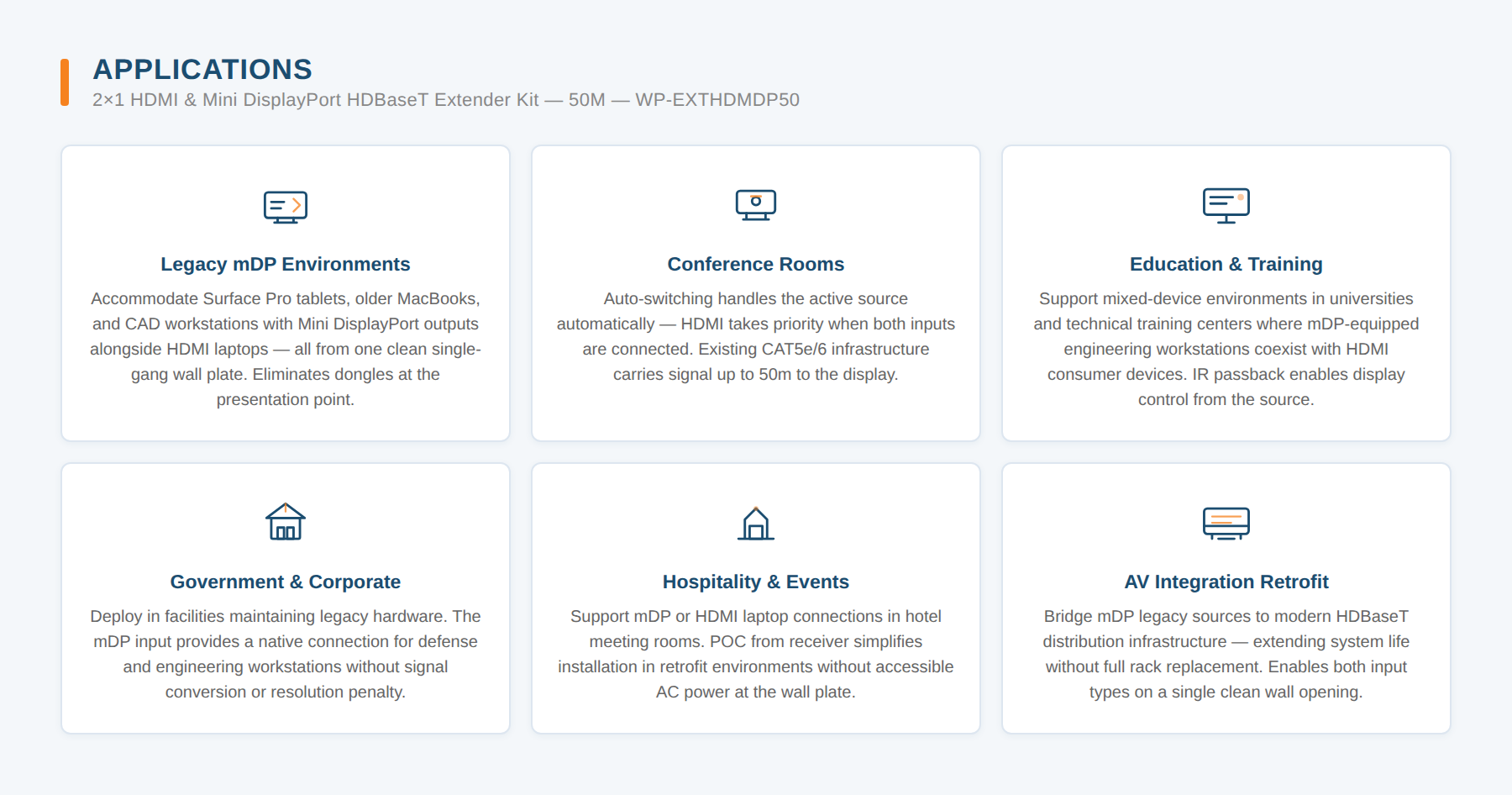

Designed for education, corporate, and government installations where mDP-equipped legacy devices must coexist alongside HDMI sources, the WP-EXTHDMDP50 removes the need for dongles or adapters at the presentation point. The wall plate is remotely powered via POC from the receiver — no local AC power required. Auto-switching selects the active source automatically; HDMI takes priority when both are active. The receiver includes an IR input for display control passback. Interchangeable white and black faceplates. 3-year KanexPro warranty.
- Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
- Supports 18Gbps video bandwidth (HDMI); 5.4Gbps (mDP)
- Video resolution up to 4K/UHD@60Hz 4:4:4
- CAT6 output extends up to 164ft/50m for 4K@24 or 115ft/35m for 4K@60 4:4:4 via single CAT5e/6 cable
- Supports 3D and HDR format video
- Does not support CEC control
- HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Supports HDMI and Mini DisplayPort (mDP) input

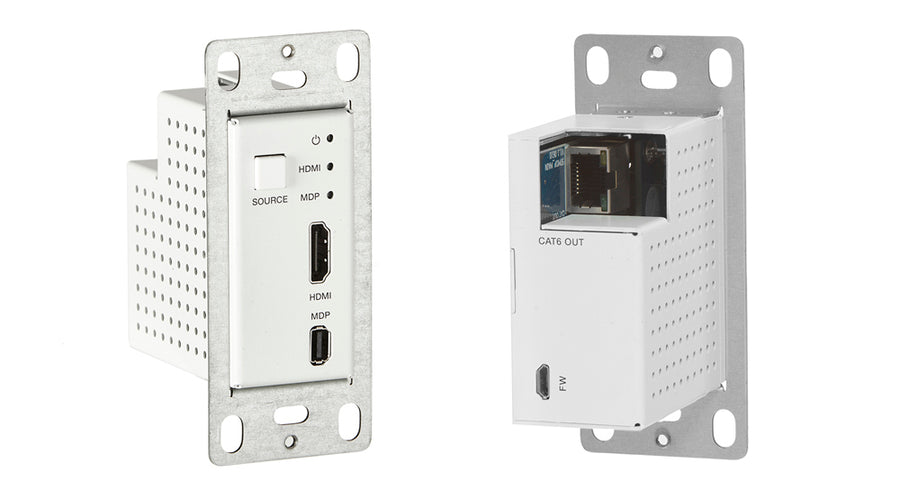

- US one-gang enclosure for Decora-style wall plate openings
- Input signal selection supports automatic and manual mode
- Supports POC function (Receiver to Transmitter only)
- Backed by KanexPro 3-Year Parts and Labor Warranty
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | DisplayPort 1.2a |
| Video Bandwidth | HDMI: 18Gbps; mDP: 5.4Gbps |
| Video Resolution | 480i–1080p@50/60Hz, 4K×2K@24/30Hz, 4K2K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080p@60Hz); 8-bit (4K@60Hz) |
| HDR | Supported |
| CEC | Not supported |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | 4K@24: 164ft/50m over CAT5e/6; 4K@60: 115ft/35m over CAT5e/6 |
| ESD Protection | Human body model ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection — Transmitter | |
| Inputs | 1× HDMI Type A [19-pin female], 1× Mini DP [20-pin female] |
| Output | 1× CAT6 OUT [RJ45, 8-pin female] |
| Control | 1× FW [Micro USB, update port] |
| Connection — Receiver | |
| Input | 1× CAT IN [RJ45, 8-pin female] |
| Output | 1× HDMI OUT [Type A, 19-pin female] |
| Control | 1× IR IN [3.5mm Stereo Mini-jack], 1× SERVICE [Micro USB, update port] |
| Power | DC 12V/1A |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White/Black (interchangeable faceplates) |
| Dimensions — TX Wall Plate | 1.31? × 2.59? × 2.70? (33.3 × 65.7 × 68.7mm) |
| Dimensions — Faceplate | 2.75? × 0.12? × 4.50? (69.9 × 3 × 114.3mm) |
| Dimensions — Receiver | 3.46? × 2.40? × 0.71? (88 × 61 × 18mm) |
| Weight — TX | 0.39 lbs (175g) |
| Weight — RX | 0.34 lbs (155g) |
| Power | |
| Power Supply | POC from Receiver to Transmitter; RX: DC 12V/1A (included) |
| Power Consumption — TX | 2.2W max |
| Power Consumption — RX | 3.72W max |
| Environment | |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | –4–140°F / –20–60°C |
| Relative Humidity | 20–90% RH (no condensation) |
| Package Contents | |
| 1× | 18Gbps CAT 50M mDP/HDMI Wall Plate Transmitter |
| 1× | Extender Receiver |
| 1× | 12V/1A Power Supply (international plugs) |
| 1× | User Manual |
