Long-Reach 2×1 HDMI & USB-C HDBaseT Wall Plate Extender Kit — 4K60 4:4:4
Drive a Display Up to 120m Without an AV-over-IP Encoder or Network Switch — Uncompressed 18Gbps, HDR10+/Dolby Vision & Bi-Directional PoC
The WP-EXTHDTC150 carries an uncompressed 4K60 4:4:4 signal from a wall plate to a display up to 120m over a single CAT6/6A cable, with no AV-over-IP encoder, decoder or network switch to commission. A transmitter in a single US 1-gang box takes one HDMI and one USB-C source with automatic or manual switching, a compact box receiver drives the display, and bi-directional PoC powers whichever end has an outlet over the link cable. Reach runs to 120m (394 ft) at 4K60 4:4:4 and 150m (492 ft) at 1080p, making it the right choice for large lecture halls, houses of worship, courtrooms, ballrooms and estate-scale residential where the length of the run — not USB or KVM extension — is the constraint that defeats a shorter-reach plate.
The link passes 18Gbps of uncompressed HDMI 2.0b video with HDR, HDR10, HDR10+, Dolby Vision and HLG intact, alongside LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio, and de-embeds analog stereo at the receiver for a local audio tie-in. Bi-directional IR, RS-232 and CEC pass through the cable so the control system can operate source and display from either end. Its single strongest differentiator is reach at full picture integrity: it holds 4:4:4 color to 120m.

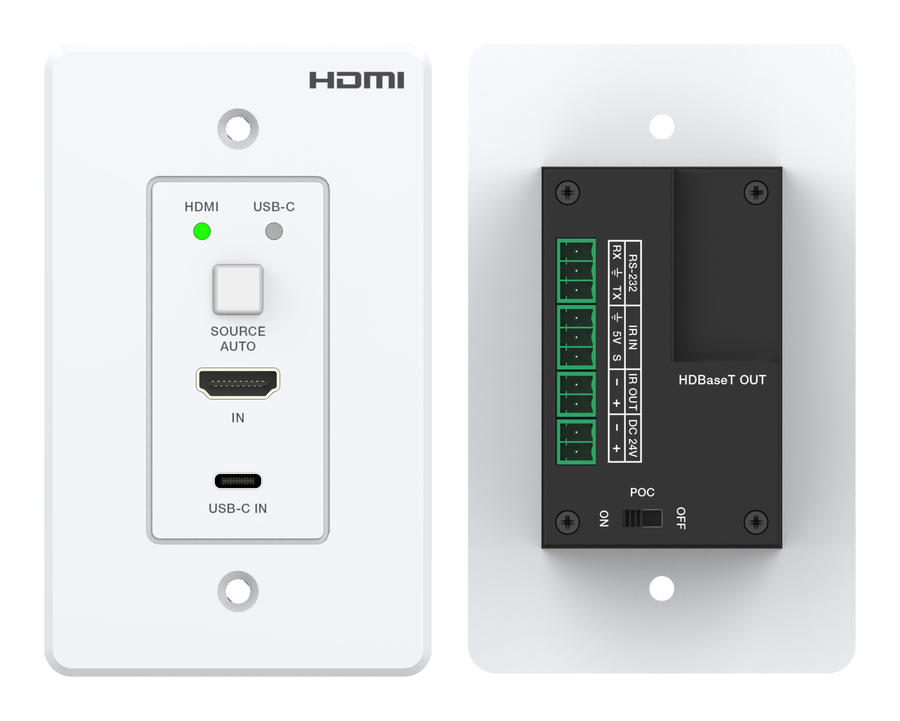

- 1-Gang US-size wall-plate transmitter with two inputs: 1× HDMI and 1× USB-C
- Video resolution up to 4K2K@60Hz 4:4:4 with 18Gbps video bandwidth
- HDMI 2.0b, HDCP 2.2 compliant
- Auto switching and manual switching between the two inputs
- Maximum transmission distance over CAT6/6A: 120m/394ft at 4K2K@60Hz 4:4:4; 150m/492ft at 1080p@60Hz
- Audio formats: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- Bi-directional IR, RS-232 and CEC control-signal transmission
- Bi-directional PoC (Power over Cable) from either end
| Video | |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 (includes all 3D TV formats and computer resolutions such as 1920×1200) |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Transmission Distance | Up to 120m/394ft at 4K2K@60Hz 4:4:4 via CAT6/6A; up to 150m/492ft at 1080p@60Hz 4:4:4 via CAT6/6A |
| Audio | |
| HDMI Audio Format | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS-HD Master Audio, DTS-HD HRA, DTS:X |
| Analog Audio Format | LPCM 2.0CH |
| Control | |
| IR Level | 5Vp-p |
| IR Frequency | Wideband, 20kHz–60kHz |
| Control Signals | Bi-directional IR, RS-232 and CEC pass-through |
| Transmitter Connections | |
| Input | 1× USB-C IN (USB Type-C, 24-pin female); 1× HDMI IN (HDMI Type A, 19-pin female) |
| Output | 1× HDBaseT OUT (RJ45) |
| Control | 1× RS-232 (3-pin 3.5mm Phoenix); 1× IR IN (3-pin 3.5mm Phoenix); 1× IR OUT (2-pin 3.5mm Phoenix) |
| Receiver Connections | |
| Input | 1× HDBaseT IN (RJ45, 8-pin female) |
| Output | 1× HDMI OUT (HDMI Type A, 19-pin female); 1× Audio OUT (3.5mm stereo mini-jack) |
| Control | 1× IR IN (3.5mm stereo mini-jack); 1× IR OUT (3.5mm stereo mini-jack); 1× RS-232 (3-pin Phoenix); 1× Service (Mini-USB update port) |
| Power | |
| Power Supply | Input: AC 100–240V, 50/60Hz; Output: DC 24V/1A |
| Power over Cable | Bi-directional PoC; either end powers the other over the CAT cable |
| Power Consumption | Transmitter: 4.5W (max); Receiver: 4.7W (max) |
| Physical | |
| Housing | Metal enclosure |
| Color | Transmitter: white + black; Receiver: black |
| Transmitter Dimensions (W × D × H) | 2.75" × 1.54" × 4.49" (69.8 × 39 × 114mm) |
| Transmitter Weight | 0.45 lbs (203g) |
| Receiver Dimensions (W × D × H) | 5.51" × 2.56" × 0.71" (140 × 65 × 18mm) |
| Receiver Weight | 0.34 lbs (155g) |
| Environmental | |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 20%–80% RH, non-condensing |
| Storage Humidity | 10%–90% RH, non-condensing |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Certifications | |
| Power Supply | CE, FCC, UL certified |
| Package Contents | |
| ① | 1× 4K60 2×1 HDBT Extender (Transmitter) |
| ② | 1× 18Gbps HDMI-over-HDBaseT Extender (Receiver) |
| ③ | 1× 24V/1A multinational power supply |
| ④ | 1× IR blaster cable (1.5m) |
| ⑤ | 1× IR wideband receiver cable (1.5m) |
| ⑥ | 1× 2-pin 3.5mm Phoenix connector (male) |
| ⑦ | 2× 3-pin 3.5mm Phoenix connector (male) |
| ⑧ | 1× 3-pin 3.81mm Phoenix connector (male) |
| ⑨ | 2× mounting ear |
| ⑩ | 4× machine screw (KM3×4) |
