8K DisplayPort 2.0 Active Optical Cable — 90

40Gbps UHBR10 | 8K@60Hz | 4K@144Hz | AMD FreeSync® 2.0 | 3-Year Warranty

CBL-AOCDP8K-90MUPC 813982023420

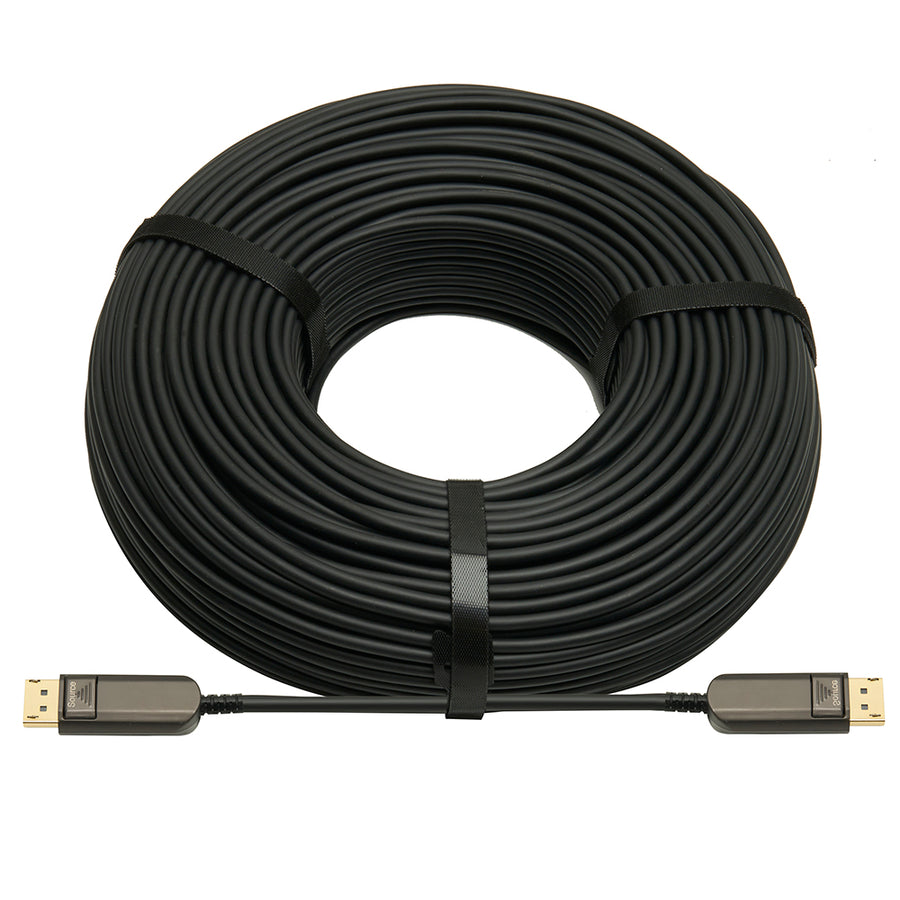

8K DisplayPort 2.0 Active Optical Cable — 90 – KanexPro CBL-AOCDP8K-90M
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

KanexPro Active Optical DisplayPort 2.0 Cables deliver full, uncompressed 40Gbps UHBR10 signal across runs of 30, 60, or 90 meters — far beyond copper cable limits. Built on a hybrid 4× optical fiber + 8× copper construction, these plug-and-play cables carry 8K@60Hz, 4K@144Hz, and HDR with zero signal loss, drawing power directly from the DisplayPort source — no wall adapters or repeaters required.

Supporting MST daisy-chaining, AMD FreeSync® 2.0, Dolby Vision, HDCP 1.4/2.2, and full EDID management, the CBL-AOCDP8K series is engineered for professional AV environments where EMI immunity and signal integrity are non-negotiable. Backed by KanexPro's 3-year warranty.

Key features
  • Supports DisplayPort 2.0 UHBR10 standard — 10Gbps per lane, 40Gbps total bandwidth
  • Resolutions up to 8K@60Hz and 4K@144Hz with 48-bit color depth
  • High Dynamic Range (HDR) video pass-through including Dolby Vision
  • Multi-Stream Transport (MST) support for daisy-chaining multiple displays
  • AMD FreeSync® 2.0 compatible for variable refresh rate displays
  • HDCP 1.4 and HDCP 2.2 compliance for protected content delivery
  • Full EDID support and bidirectional AUX channel for link training
  • Supports DisplayPort Dual-Mode (DP++) for passive adapter compatibility
  • Bus-powered — draws <0.5W per end from source device; no external power required
  • EMI/RFI immune optical transmission — 4× 850nm fiber + 8× copper hybrid, 4.8mm OD
  • Directional cable: SOURCE and DISPLAY ends labeled on each connector
SpecificationValue
Signal
StandardsDisplayPort 2.0 / UHBR10 · HDCP 1.4 / 2.2
Bandwidth10Gbps per lane · 40Gbps total
Max Resolution8K @ 60Hz (7680×4320)
Max Refresh (4K)4K @ 144Hz
Color Depth48-bit
Pixel Clock810 MHz
Construction
Connector20-pin DisplayPort Male (both ends, directional)
Optical Technology4× 850nm Multi-mode VCSEL Tx · 4× GaAs PIN Rx
Cable TypeHybrid: 4× optical fiber + 8× copper conductor
Cable OD4.8mm
Length90 meters (295 ft.)
Power
Power SourceBus-powered from DisplayPort source (3.3V)
Power Consumption<0.5W per end · No external supply required
Environmental
Operating Temperature0°C to 50°C
Storage Temperature−20°C to 80°C
Humidity5% to 85% non-condensing
Mechanical
Min Bend Radius48mm
Max Tensile Load300N
8K DisplayPort 2.0 Active Optical Cable — 90 panel drawing
8K DisplayPort 2.0 Active Optical Cable — 90 system diagram
8K DisplayPort 2.0 Active Optical Cable — 90 applications
Spec sheetFull specification
Sales sheetFor bid packages
What bandwidth and resolution does the cable carry?
DisplayPort 2.0 UHBR10, 10Gbps per lane and 40Gbps total, up to 8K@60Hz (7680x4320) and 4K@144Hz at 48-bit colour.
How is an optical cable of this length driven?
Four 850nm multi-mode VCSEL transmitters and four GaAs PIN receivers, over a hybrid of four optical fibres and eight copper conductors, 4.8mm outside diameter.
Is it HDCP compliant?
Yes, HDCP 1.4 and 2.2.
What pixel clock does it support?
810 MHz.
Does the cable need a power supply?
No. It is bus-powered from the DisplayPort source at 3.3V, using under 0.5W per end.
How tightly can it be bent, and how hard can it be pulled?
Minimum bend radius is 48mm and maximum tensile load is 300N. The run is 90 metres (295 ft.).
The display stays black after the cable is fitted.
The cable is directional. The end marked for the source must go to the source and the other to the display; reversed, it will not link.
It works at 4K but not at 8K.
8K@60Hz needs the full UHBR10 link. Confirm both the source and the display are DisplayPort 2.0 UHBR10 devices.
Can it be pulled through conduit?
Yes, within a 48mm bend radius and 300N tensile load. It is rated 0 to 50 degrees C operating.
What connectors are on the ends?
20-pin DisplayPort male at both ends, directional.
