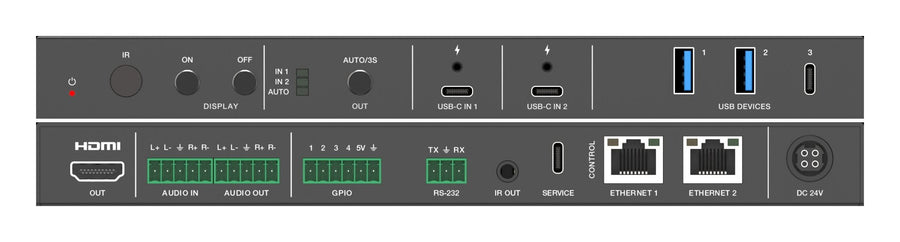

2×1 Dual USB-C Huddle Room Switcher with USB 3.2 KVM
Connect Any Two USB-C Laptops — 4K60 4:4:4, 50W+50W PD Charging, Balanced Audio & Dual 1G Ethernet with 802.1x
COL-HUD-21DUPC 813982020894
Upcoming
Overview
The COL-HUD-21D is built for all-USB-C meeting rooms — two full-featured USB-C inputs let any two laptops share the room display, USB peripherals, and network access without a single adapter. Both ports deliver DP Alt mode 4K60 4:4:4 video, USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet pass-through, and simultaneous charging — up to 100W when one laptop is connected, or 50W each when both are active.
Designed for organizations standardizing on USB-C across their device fleet, the COL-HUD-21D removes HDMI from the equation entirely. Balanced analog audio I/O, dual 1G Ethernet with 802.1x/VLAN, CEC/IR/RS-232 display control, and a Web GUI give IT teams the management and security controls they expect — in a compact unit that fits under any huddle room table.
Key features
- HDCP 2.3 and DP 1.4a compliant
- 2×1 huddle room switcher — dual USB-C inputs, HDMI output
- Both USB-C inputs with DP Alt mode 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet, and up to 100W charging (50W each when both connected)
- HDMI output up to 4K60 4:4:4 as specified in HDMI 2.0b
- Fast switching with auto and manual switching modes
- Auto switching with signal detection and 5V detection
- USB 3.2 Gen 1 (5Gbps) host and local hub
- USB 3.2 Gen 1 (5Gbps) device port with 5V/1.5A power output
- Balanced/unbalanced analog audio embedding to USB audio
- Balanced/unbalanced analog audio de-embedding from USB or HDMI audio
- Advanced EDID management — 18 presets plus 2 user-defined profiles
- User-defined welcome screen and no-signal display image
- Dual 1G Ethernet ports with 802.1x and VLAN support
- IR eye for IR learning and control
- Auto display on/off control
- External device control via CEC, IR, RS-232, LAN, and GPIO
- Control via front panel buttons, RS-232, TCP/IP, and Web GUI
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP | HDCP 2.3 |
| DP Compliance | DP 1.4a (both USB-C inputs) |
| USB Compliance | USB 3.2 Gen 1 (5Gbps) |
| Video Bandwidth | 18Gbps |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8/10/12-bit (8-bit at 4K60 4:4:4) |
| Audio (Digital) | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Audio (Analog) | LPCM 2CH, 32–192kHz |
| Audio S/N Ratio | >90dB |
| Audio THD+N | <0.01% at +4dBu 1kHz |
| IR Frequency | 20kHz–60kHz |
| ESD Protection | IEC 61000-4-2: ±8kV air / ±4kV contact |
| Connection | |
| Inputs | 2× USB-C IN (24-pin); 1× L/R Audio In (5-pin 3.5mm phoenix) |
| Outputs | 1× HDMI OUT (Type A); 1× USB Device (Type C); 2× USB Device (Type A); 1× L/R Audio Out (5-pin 3.5mm phoenix) |
| Control Ports | 1× RS-232 (3-pin); 1× IR Out (3.5mm); 2× Ethernet (RJ45); 1× GPIO (6-pin); 1× Service (USB-C) |
| Physical | |
| Dimensions (W×D×H) | 9.06″ × 5.12″ × 0.91″ (230 × 130 × 23mm) |
| Net Weight | 1.75 lbs (0.796kg) |
| Housing | Metal, Black |
| Power Supply | DC 24V/7.5A (AC 100–240V, 50/60Hz) |
| Power Consumption | 37W (idle) / 145W (with 100W USB-C charging) |
| Operating Temperature | 32°F–104°F (0°C–40°C) |
| Storage Temperature | -4°F–140°F (-20°C–60°C) |
| Operating Humidity | 20–80% RH, non-condensing |
| Certifications | |
| Regulatory | CE, FCC, UL |
| Package Contents | |
| 1× | 2×1 Dual USB-C Huddle Room Switcher |
| 1× | 24V/7.5A Power Supply |
| 1× | IR Blaster Cable (1.5m) |
| 1× | 3-pin Phoenix Connector (male) |
| 2× | 5-pin Phoenix Connector (male) |
| 1× | 6-pin Phoenix Connector (male) |
| 4× | Rubber Foot |
| 2× | Mounting Ear |
| 1× | User Manual |
What is the maximum video resolution?
Up to 4K60Hz 4:4:4 (18Gbps) on both USB-C inputs and the HDMI output. Both inputs require DP 1.4a Alt mode on the source device.
What HDR formats are supported?
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through.
How does USB switching work with two laptops?
Default: Follow Video — peripherals switch with the active video source. Manual mode: 'set usb manual switch 1/2'. Auto mode: switches to the most recently connected host.
How do I integrate with a room control system?
Use RS-232 (115200-8N1) or TCP/IP (port 8000). Key commands: 'set output 1 from 1/2' for routing, 'set display 1 power 1/0' for display control. Full list via 'help' command.
What power supply is required?
The included 24V/7.5A supply (AC 100–240V, 50/60Hz). USB-C charging is only active when DC 24V supply is connected.
How do I mount the unit under a table?
Attach mounting ears with the 4× KM3×6 screws. Unit is 0.91 inches tall (23mm). Use rubber feet for desktop placement.
No video from USB-C laptop?
Verify the laptop supports DisplayPort Alt Mode over USB-C — not all USB-C ports carry video. Try setting EDID to 1080P60 to rule out resolution mismatch.
No audio from the analog output?
Audio embedding to HDMI is not available on COL-HUD-21D (no HDMI input). Set analog audio embed to USB audio in Web GUI > Control. De-embedding from HDMI OUT is fully supported.
Can both USB-C laptops charge simultaneously?
Yes. When both USB-C IN ports are active, each delivers 50W PD. When only one is connected, it charges at up to 100W.
Why choose this over the COL-HUD-21?
The COL-HUD-21D is for all-USB-C environments — no HDMI cable needed. Both presenters connect with a single USB-C cable each. Ideal for MacBook, Surface, or ThinkPad all-USB-C fleets.
