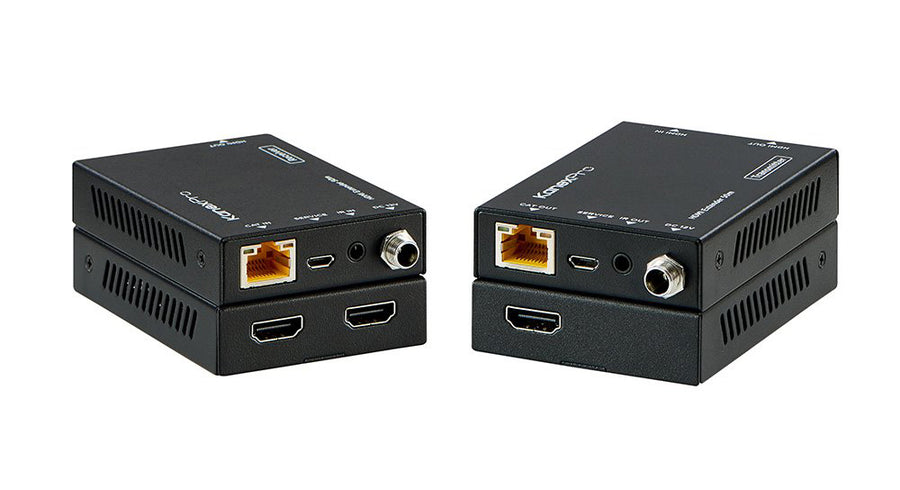

4K60Hz 18Gbps HDMI Extender over Cat5e/6 - 50M

4K@60Hz | 18Gbps | HDMI Loop-Out | HDR | RS-232 | Bi-directional IR | 3-Year Warranty

EXT-50M18GUPC 813982022065
Promo In stock4K60Hz 18Gbps HDMI Extender over Cat5e/6 - 50M – KanexPro EXT-50M18G
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

The KanexPro EXT-50M18G is an ultra-slim 4K@60Hz 18Gbps HDMI extender that transmits UHD 4K video with HDR and 4:4:4 chroma over a single Cat5e/6 cable to 50M (164 ft.). The TX unit includes an HDMI loop-out for connecting a local confidence monitor without splitting the signal.

RS-232 and bi-directional IR pass-through enable full remote control from both ends. Dolby TrueHD and DTS Master Audio pass-through preserve premium audio formats. Ultra-slim 18mm profile fits cleanly behind displays or in equipment pockets. Backed by KanexPro's 3-year warranty.

Key features
  • Ultra-slim 4K@60Hz 18Gbps HDMI extender over single Cat5e/6 up to 50M (164 ft.)
  • HDMI loop-out on TX unit for local display or confidence monitoring
  • HDR (High Dynamic Range) and 4:4:4 chroma color sampling support
  • Bi-directional IR and RS-232 control pass-through
  • Dolby TrueHD and DTS Master Audio ready
  • HDCP 2.2 and EDID compliant
  • Zero configuration plug-and-play
  • Ultra-slim form factor: 61x88x18mm TX and RX
  • 3-year KanexPro warranty
SpecificationValue
HDMI / HDCPHDMI 2.0 | HDCP 2.2
Bandwidth18Gbps
Max Resolution4K x 2K @ 60Hz (4:2:0) | HDR 4:4:4
HDMI Loop-OutYes — TX unit
CableSingle Cat5e / Cat6
Max Distance50M (164 ft.) at 4K@60Hz
ControlBi-directional IR + RS-232 pass-through
AudioDolby TrueHD | DTS Master Audio
PowerDC 12V/1A
Dimensions61 x 88 x 18mm (TX and RX)
WeightTX 160g | RX 155g
Operating Temp-10 to 55 degrees C
4K60Hz 18Gbps HDMI Extender over Cat5e/6 - 50M panel drawing
4K60Hz 18Gbps HDMI Extender over Cat5e/6 - 50M system diagram
4K60Hz 18Gbps HDMI Extender over Cat5e/6 - 50M applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
What is the maximum transmission distance?
The extender reaches 50M (164 ft.) at 4K@60Hz over a single Cat5e or Cat6 cable.
Why choose an ultra-slim extender for this application?
The 61 x 88 x 18mm ultra-slim TX/RX chassis suits tight rack or behind-display mounting where space is limited, while still delivering 18Gbps 4K@60Hz HDR performance to 50M.
How is the system wired end to end?
Connect the HDMI source to TX HDMI IN, run a single Cat5e/6 cable to RX RJ45 IN (up to 50M), and connect the remote display to RX HDMI OUT. RS-232 and IR pass-through allow control of source and display equipment from either end.
What is the maximum resolution and bandwidth of the EXT-50M18G?
The EXT-50M18G is HDMI 2.0 / HDCP 2.2 compliant with 18Gbps bandwidth, supporting 4K x 2K @ 60Hz (4:2:0) with HDR in 4:4:4 chroma.
How does the HDMI loop-out fit into a system?
The TX unit's HDMI OUT (Loop) port drives a local confidence monitor or secondary display simultaneously with the extended signal to the RX, operating independently of the RJ45 output.
How is RS-232 control passed through?
A DB9 connector on both TX and RX passes RS-232 signals bidirectionally between the source-end and display-end control systems.
What cable type is required?
The extender runs over a single Cat5e or Cat6 cable, STP recommended for best signal integrity at maximum distance; avoid running it parallel to power lines.
What are the unit dimensions and weight?
The ultra-slim TX and RX chassis measures 2.40 x 3.46 x 0.71 in (61 x 88 x 18mm); TX weighs 0.35 lb (160g) and RX weighs 0.34 lb (155g).
4K signal is degraded at maximum distance. What should I check?
Ensure STP (shielded twisted pair) Cat5e/6 cable is used, avoid running the cable parallel to power lines, check connectors for damage, and try reducing cable length.
The HDMI loop-out is not working. What should I check?
The loop-out operates independently of the RJ45 output. Confirm the HDMI cable from the TX loop-out to the local monitor is a Premium High Speed cable, and power-cycle the TX.
