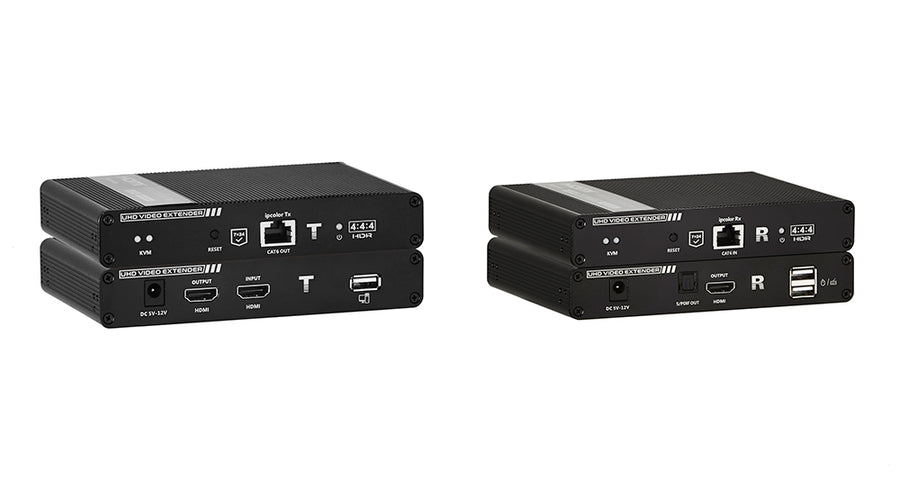

4K60Hz HDMI KVM Extender over Cat6 - 70M
4K@60Hz HDR | KVM USB 2.0 | Zero Latency | IR Bi-directional | 3-Year Warranty
EXT-HDMIKVM70MUPC 813982022751
In stock
Overview

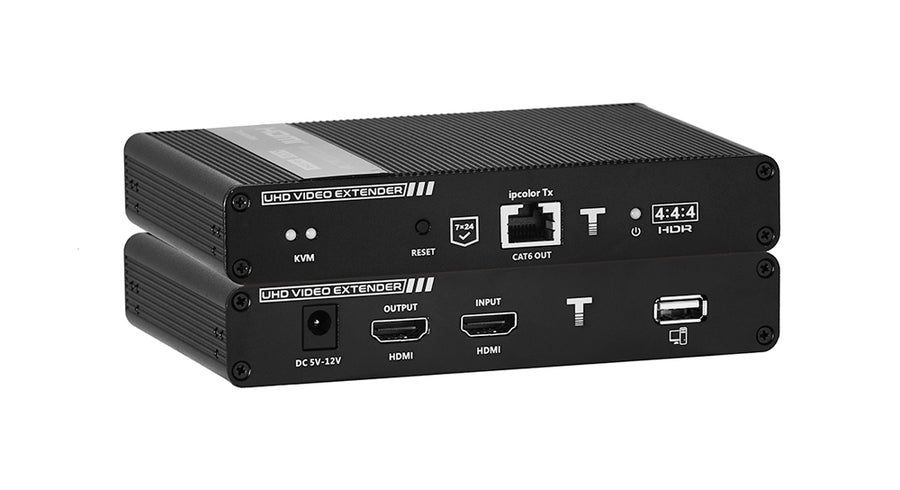

The KanexPro EXT-HDMIKVM70M adds KVM (keyboard, mouse, PTZ camera, and touchscreen) control to a zero-latency 4K@60Hz HDMI extension system — all over a single Cat6 cable to 70M. Transmit full 4:4:4 HDR video and USB 2.0 peripheral signals simultaneously without separate KVM extender hardware.
The KVM USB 2.0/1.1 channel supports keyboards, mice, PTZ cameras, and touchscreen devices at the receiver end. ARC S/PDIF audio de-embed, bi-directional IR, HDCP 2.2, and zero configuration complete the package. Backed by KanexPro's 3-year warranty.
Key features
- Zero latency 4K@60Hz HDR + KVM USB 2.0/1.1 over single Cat6 up to 70M
- KVM supports keyboard, mouse, PTZ cameras, and touchscreen devices
- HDCP 2.2 and EDID support for multiple display types
- Bi-directional IR pass-through 20-60KHz — IR blasters included
- ARC S/PDIF digital audio de-embedded output on receiver
- Zero configuration plug-and-play setup
- Compact aluminum chassis: 106x99x26.2mm, 260g TX/RX
- 3-year KanexPro parts and labor warranty
| Specification | Value |
|---|---|
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Max Resolution | 4K x 2K @ 60Hz (4:4:4 HDR) |
| KVM | USB 2.0/1.1 — keyboard, mouse, PTZ, touchscreen |
| Cable | Single Cat6 / Cat6a |
| Max Distance | 70M (230 ft.) at 4K@60Hz |
| IR | Bi-directional 20-60KHz (TX/RX included) |

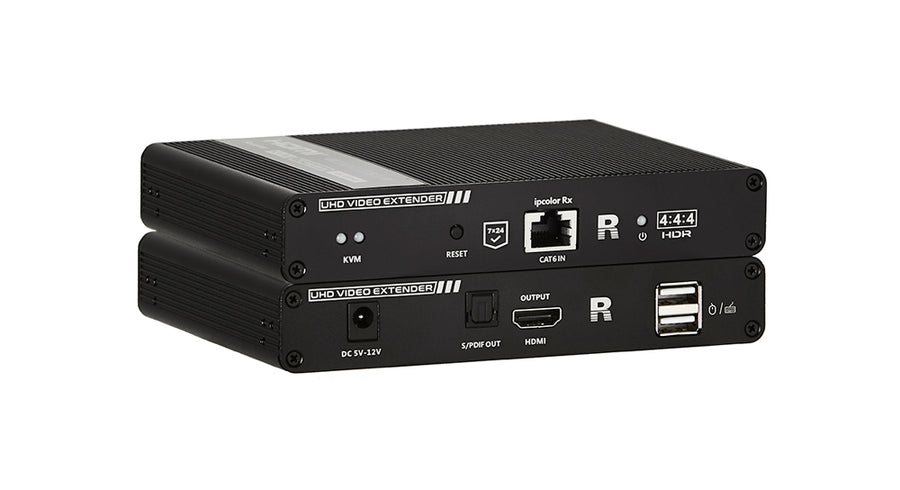

| Audio | ARC S/PDIF de-embedded on RX |
| Power | DC 5V-12V | TX less than 4W | RX less than 4W |
| Dimensions | 106 x 99 x 26.2mm (TX and RX) |
| Weight | TX 260g | RX 260g |
| Operating Temp | -20 to 60 degrees C |
What is the maximum video resolution and distance?
4K x 2K @ 60Hz 4:4:4 HDR to 70M (230 ft.) over a single Cat6 or Cat6a cable, HDMI 2.0 with HDCP 2.2, at zero latency.
What USB device types are supported at the receiver?
USB 2.0 and 1.1 devices: keyboard, mouse, PTZ cameras and touchscreens.
Can I connect a webcam or PTZ camera to the receiver USB port?
Yes. The KVM channel carries USB 2.0/1.1 and PTZ cameras are supported.
Does it pass IR, and in which direction?
Both directions, 20-60KHz, with IR blasters included for transmitter and receiver.
How is the kit powered?
DC 5V-12V, with the transmitter drawing under 4W and the receiver under 4W.
What cable should be run between the two units?
A single Cat6 or Cat6a. Both units are 106 x 99 x 26.2mm and 260g.
A USB device at the receiver is not detected.
The KVM channel is USB 2.0/1.1. A device that requires USB 3.0 speeds will not enumerate on this link.
There is no audio on the separate audio output.
The receiver de-embeds ARC S/PDIF digital audio. Check that the display or source is set to output over ARC.
Can I take audio out separately from the display?
Yes, the receiver has an ARC S/PDIF de-embedded output.
Will it drive different display types?
Yes, it carries HDCP 2.2 and supports EDID for multiple display types.
