NetworkAV™ HDMI over IP Encoder/Decoder Kit — 120M 1080p

Cost-Effective Point-to-Point and One-to-Many HDMI Distribution over Standard IP Networks

EXT-AVIP120MUPC 813982021174
In stockNetworkAV™ HDMI over IP Encoder/Decoder Kit — 120M 1080p – KanexPro EXT-AVIP120M
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

The EXT-AVIP120M delivers a simple and cost-effective path to HDMI distribution over IP — extending full HD 1080p/60 HDMI signals up to 120m (394 ft) over a single UTP CAT5e/6 cable using MJPEG compression. The included encoder/decoder kit supports point-to-point, point-to-many, and many-to-many configurations over standard TCP/IP network infrastructure, with no proprietary switching hardware required for basic deployments.

Built into a compact metal enclosure with integrated mounting ears, the EXT-AVIP120M is well suited for classrooms, lobbies, digital signage networks, and corporate AV systems where 1080p distribution is needed without the cost or complexity of a dedicated AV matrix. IR pass-through and an embedded HTTP server for IP configuration are included. For larger many-to-many deployments, VLAN configuration and a compatible 10G switch are required.

Key features
  • Extends 1080p HDMI signals up to 120m (394 ft) over a single UTP CAT5e/6 cable
  • Includes both encoder (TX) and decoder (RX) — complete kit, no additional hardware required for point-to-point
  • MJPEG compression — supports point-to-point, point-to-many, and many-to-many network configurations
  • Cascadable via 10G Ethernet switches for large-scale many-to-many deployments
  • Wideband IR pass-through 38–56kHz for remote source control
  • Embedded HTTP server for IP configuration via web browser — no software installation required
  • HDCP compliant; supports TCP/IP protocol
  • Metal enclosure with integrated rack-mount ears and 5V DC power supplies included
SpecificationValue
Video
CompressionMJPEG
Supported FormatsDTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Input Video Signal0.5–1.0V P-P
Input DDC Signal5V P-P (TTL)
Video OutputHDMI
HDCPCompliant
Transmission
Max Distance120m (394 ft) over CAT5E/6, 24AWG solid
ProtocolTCP/IP
Control
IR Frequency38–56kHz
Network
Default IP (TX)192.168.168.55 (MAC: 00:0b:78:00:60:01)
Default IP (RX)192.168.168.56 (MAC: 00:0b:78:00:60:02)
Power
SupplyDC 5V/1A (included)
ConsumptionTX: 3W max / RX: 3W max
Environmental
Operating Temperature-5 to +35°C (+23 to +95°F)
Operating Humidity5–90% RH, non-condensing
Physical
Dimensions (L×W×H)4.07″ × 3.68″ × 0.97″ (103.5 × 93.5 × 24.6mm)
Net Weight (each)0.49 lbs (220g)
Certifications
RegulatoryFCC Class B (Part 15)
Package Contents
1×Transmitter
1×Receiver
1×IR-TX cable
1×IR-RX cable
2×Power adapter DC 5V/1A
1×User manual

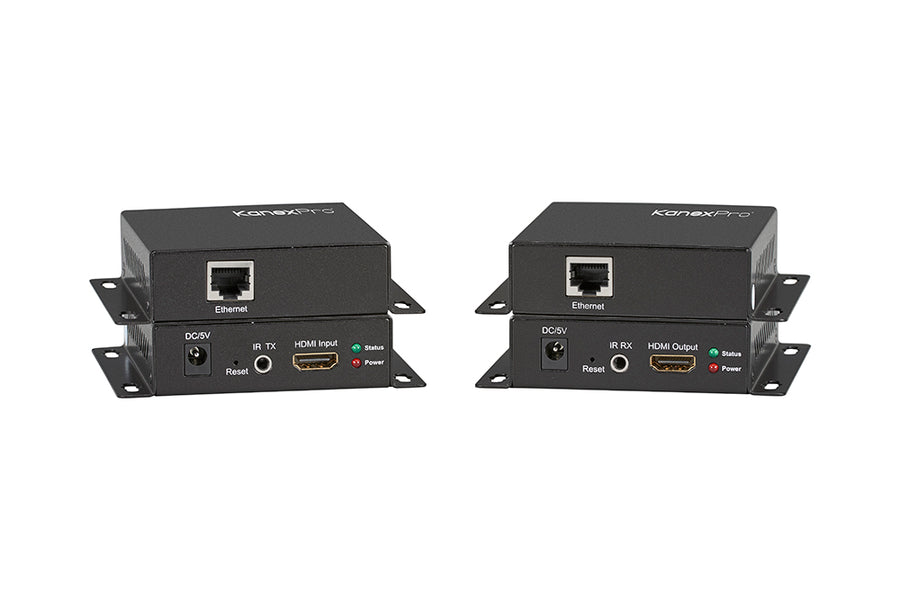

NetworkAV™ HDMI over IP Encoder/Decoder Kit — 120M 1080p panel drawing
NetworkAV™ HDMI over IP Encoder/Decoder Kit — 120M 1080p system diagram
NetworkAV™ HDMI over IP Encoder/Decoder Kit — 120M 1080p applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
Why choose the EXT-AVIP120M over a dedicated AV matrix switcher?
It is a complete encoder/decoder kit that distributes 1080p HDMI over standard TCP/IP infrastructure at point-to-point, point-to-many, or many-to-many scale without proprietary switching hardware for basic deployments.
What is the maximum transmission distance of the EXT-AVIP120M?
120m (394 ft) over a single UTP CAT5E/6 cable, 24AWG solid.
What compression and resolutions does the EXT-AVIP120M support?
MJPEG compression for DTV/HDTV formats 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p, output as HDCP-compliant HDMI.
What is the default IP configuration of the TX and RX?
The transmitter defaults to 192.168.168.55 (MAC 00:0b:78:00:60:01) and the receiver defaults to 192.168.168.56 (MAC 00:0b:78:00:60:02); each unit has an embedded HTTP server reachable by connecting a PC on the same subnet.
How do I configure a many-to-many EXT-AVIP120M deployment?
Cascade the units through 10G Ethernet switches, configure a VLAN, and use a compatible 10G switch such as a GES24 or equivalent.
What power does the EXT-AVIP120M kit require?
Each unit uses a DC 5V/1A power adapter (two included), with TX and RX each drawing 3W max.
What are the dimensions and weight of each unit?
4.07 in x 3.68 in x 0.97 in (103.5 x 93.5 x 24.6 mm), weighing 0.49 lbs (220g) each.
There is no video on the display. What should I check?
Verify both TX and RX power LEDs are lit, confirm TX and RX are on the same network subnet with unique IP addresses, check that the CAT5e/6 cable follows the EIA-TIA 568B standard, and try the reset procedure on both units.
There is a ghost image or distortion on the output. What should I check?
Check the display's resolution settings, try a higher-quality CAT6 cable, and ensure cable length does not exceed 120m for 1080p 8-bit signals.
What environments is the EXT-AVIP120M designed for?
Classrooms, lobbies, digital signage networks, and corporate AV systems that need 1080p distribution without the cost or complexity of a dedicated AV matrix.
